Automating the Infinite: How One Maker Solved the Tedium of Flip-Dot Production

For the average hobbyist, the allure of electromagnetic projects often hits a wall the moment the first coil needs to be wound. Whether building brushless motors, custom transformers, or solenoids, the process is notoriously repetitive, physically taxing, and prone to error. When one hand slips, the tension falters, or the wire overlaps incorrectly, the entire coil is often rendered useless.

For [Larry], an intrepid maker currently undertaking the ambitious project of constructing a large-scale flip-dot matrix display, this manual labor was not just a hurdle—it was a bottleneck. With each individual pixel in his display requiring two electromagnetic coils to actuate a physical magnet, the sheer volume of winding meant that manual production was not just impractical; it was impossible. His solution? He built a high-precision, automated coil-winding machine from the ground up.

Main Facts: Engineering an Automated Solution

The machine designed by [Larry] is a masterclass in functional, desktop-scale automation. At its core, the device is designed to solve the two primary challenges of coil winding: consistent tension and precise layer distribution.

The mechanical architecture relies on a dual-stepper motor configuration. The primary motor provides the torque necessary to rotate the bobbin, effectively pulling the magnet wire into a tight, circular winding. Simultaneously, a secondary stepper motor manages a wire-guide carriage. This carriage moves laterally along the axis of the bobbin, ensuring that each rotation of wire sits perfectly adjacent to the last, rather than piling up haphazardly.

Structural integrity is provided by a hybrid assembly of 3D-printed housings and precision metal rods. To facilitate smooth operation, [Larry] integrated a series of bearings and belt drives that translate the stepper motor pulses into refined mechanical motion. The wire feed system is particularly clever: a spool rotates on low-friction bearings, while the wire itself is threaded between two pieces of high-density foam. This setup provides an adjustable, friction-based tensioning mechanism that prevents the wire from snapping or unraveling during the winding process.

Chronology: From Manual Labor to Systematic Precision

The genesis of this project began long before the first piece of plastic was printed. [Larry]’s overarching goal—the creation of a custom flip-dot matrix display—required a level of hardware scalability that standard DIY methods could not provide.

Phase 1: The Design Constraint

Initially, [Larry] attempted to gauge the time investment required to wind the coils for his display by hand. The math was daunting. A single flip-dot requires two electromagnetic coils, and a matrix display typically demands hundreds, if not thousands, of pixels. Realizing that manual winding would take hundreds of hours of high-concentration labor, he moved to the design phase of a mechanical assistant.

Phase 2: Prototyping the Winder

The machine went through several iterations. The initial focus was on the bobbin retainer. [Larry] needed a mechanism that would not only hold the bobbin firmly in place but also act as a secure anchor point for the start and end of the wire. He settled on a custom retainer that simplifies the transition between coils, allowing for quick swaps.

Phase 3: Implementing the Control System

Once the physical structure was sound, the electronics became the primary focus. [Larry] selected a Teensy microcontroller as the "brain" of the operation. The control interface was kept intentionally simple: an OLED display provides real-time feedback on the number of layers wound, while a rotary encoder allows the user to input specific parameters, such as the total turn count or speed settings.

Phase 4: Calibration and Homing

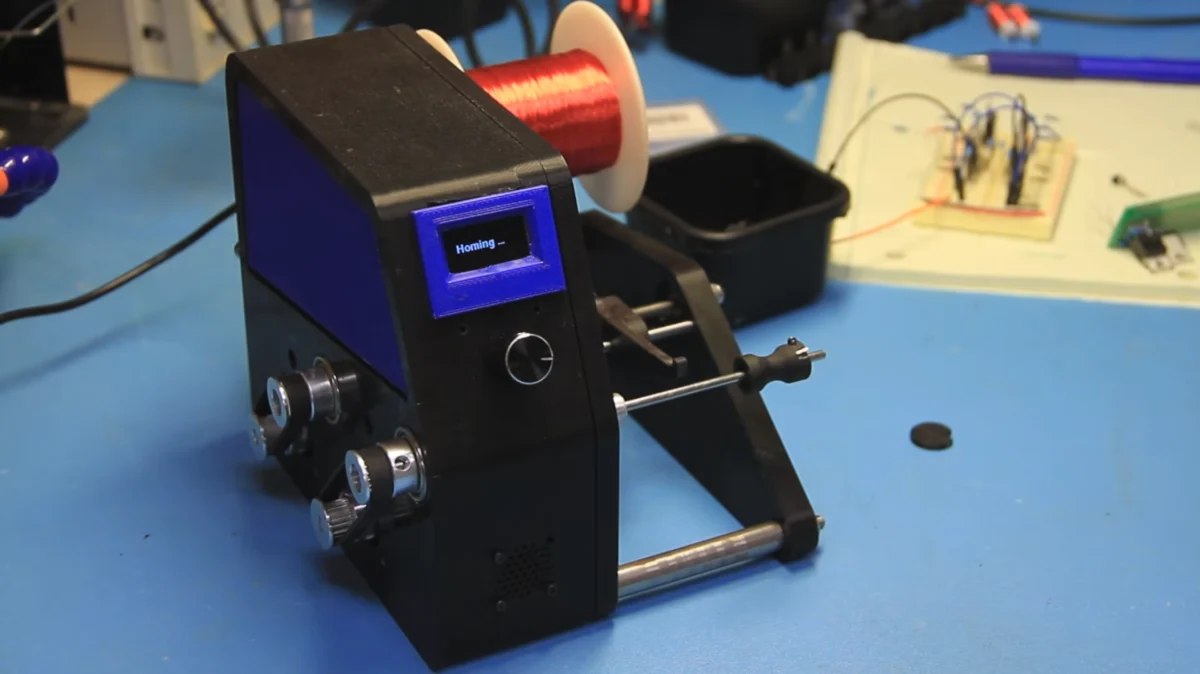

The final stage of development involved the implementation of an end-stop switch. Before any winding begins, the machine performs a homing sequence, moving the guide carriage to a fixed zero-point. This ensures that the wire distribution starts at the correct edge of the bobbin every time, preventing the "drift" that often plagues amateur coil winders.

Supporting Data: The Anatomy of the Machine

To understand the complexity of [Larry]’s machine, one must look at the specific components that allow for such high-quality results.

• Microcontroller: Teensy (chosen for its robust processing power and reliability in handling time-sensitive stepper pulses).
• Motion Control: Dual stepper motors (1.8-degree NEMA style for high resolution).
• User Interface: 128×64 OLED display and a rotary encoder with integrated push-button functionality.
• Mechanical Structure: Fused Deposition Modeling (FDM) 3D-printed frame, reinforced with stainless steel rods for rigidity.
• Tensioning System: Variable-pressure foam pad compression system.
• Safety/Initialization: Limit switch for automatic carriage homing.

The machine’s ability to track layers is perhaps its most significant feature. By counting the rotations of the primary motor and calculating the travel distance of the guide carriage, the Teensy ensures that each layer is uniform. This precision is vital for electromagnetic efficiency; a tightly packed, uniform coil generates a more consistent magnetic field than a loose, overlapping one, which is essential for the reliable operation of flip-dot pixels.

Official Perspectives: The Maker Community’s Stance

Within the DIY and "Maker" communities, the consensus is clear: automation is the final frontier for the hobbyist. While 3D printers have become ubiquitous, the adaptation of those printers for specialized tasks—like winding stators or coils—represents the next evolution of home manufacturing.

As noted by industry observers, projects like [Larry]’s serve as a bridge between high-end industrial manufacturing and the kitchen-table workshop. When [Larry] published his project, it was met with immediate interest from the engineering community, particularly those interested in retro-tech displays and electromagnetic actuators.

Previous attempts at this problem have varied wildly in complexity. We have documented users who adapted stock Ender-3 Pro 3D printers to wind stators, essentially repurposing the printer’s X-axis to move the wire guide while the print bed acted as a rotating mandrel. However, [Larry]’s approach differs by being a "single-purpose" machine. By building a dedicated tool, he avoided the compromises associated with multi-purpose hardware, resulting in a cleaner, more efficient, and more reliable output.

Implications: The Future of Modular Manufacturing

The implications of this project extend far beyond a single flip-dot display. [Larry] has essentially developed a scalable manufacturing pipeline. By automating the most tedious part of his display construction, he has lowered the barrier to entry for building large-scale, custom electromagnetic hardware.

1. Reducing Human Error

Manual winding is inherently flawed. Fatigue leads to uneven coils, which can result in "hot spots" or failures in electromagnetic devices. An automated machine provides a level of uniformity that is impossible to achieve by hand, ensuring that every pixel in the flip-dot matrix behaves identically.

2. Democratizing Complex Tech

Flip-dot displays were once the domain of transit authorities and large industrial manufacturers. By open-sourcing or documenting the process of building the necessary components (the coils), [Larry] is enabling others to experiment with these fascinating displays in their own homes.

3. The "Tool-Building" Paradigm

Perhaps the most significant takeaway is the philosophy of "building the machine to build the project." In the maker movement, there is often a rush to complete the end goal. [Larry]’s approach demonstrates the wisdom of investing time in the infrastructure of a project. By spending a few weeks building a winder, he saved himself months of repetitive, frustrating labor and ended up with a higher-quality result.

4. Future Scalability

Should [Larry] decide to expand his flip-dot matrix into a massive wall-sized installation, he now possesses the infrastructure to scale production. If the display requires 10,000 coils, the machine can handle the workload with minimal human intervention. This shift from "crafting" to "manufacturing" is what separates hobbyist projects from professional-grade installations.

Conclusion

[Larry]’s coil-winding machine is a testament to the power of thoughtful engineering. By identifying a specific pain point—the tedium of winding electromagnetic coils—and applying a combination of 3D printing, stepper-motor control, and clever mechanical design, he has effectively solved the production bottleneck for his flip-dot project.

As the DIY community continues to push the boundaries of what is possible at home, machines like this one will become increasingly common. They represent a transition point: the moment when a project moves from being a simple hobbyist pursuit to a sophisticated, semi-automated engineering endeavor. Whether for flip-dots, electric motors, or custom transformers, the lesson remains the same: if the work is tedious, build a machine to do it for you.

For those interested in exploring the details of this build or the underlying mechanics of the flip-dot design, [Larry]’s ongoing documentation provides a roadmap for anyone looking to undertake a similar challenge. It is a reminder that in the world of modern making, the only limit is the willingness to engineer the tools you need to succeed.
