Beyond the CAD Model: How Extrudio is Revolutionizing 3D Print Visualization

In the world of additive manufacturing, there has long been a disconnect between the "perfect" world of CAD (Computer-Aided Design) and the physical reality of a 3D-printed object. Designers spend hours perfecting a model, only to be met with the inevitable nuances of Fused Deposition Modeling (FDM)—layer lines, surface artifacts, and the slight geometric deviations inherent in the extrusion process.

Standard CAD software offers rudimentary rendering engines that display models as clean, seamless meshes. While excellent for engineering validation, these renders often mislead clients or customers who expect a smooth surface, only to receive a part characterized by the distinct, ridged topography of a printed layer. Enter Extrudio, a novel software utility designed to bridge this gap by rendering directly from G-code, the actual instruction set sent to a 3D printer.

Main Facts: The Paradigm Shift in Visualization

Extrudio represents a fundamental departure from conventional rendering methodologies. Historically, 3D renders were generated by interpreting the surface geometry of a 3D model (the STL, OBJ, or STEP file). This approach treats the object as a solid, mathematical volume.

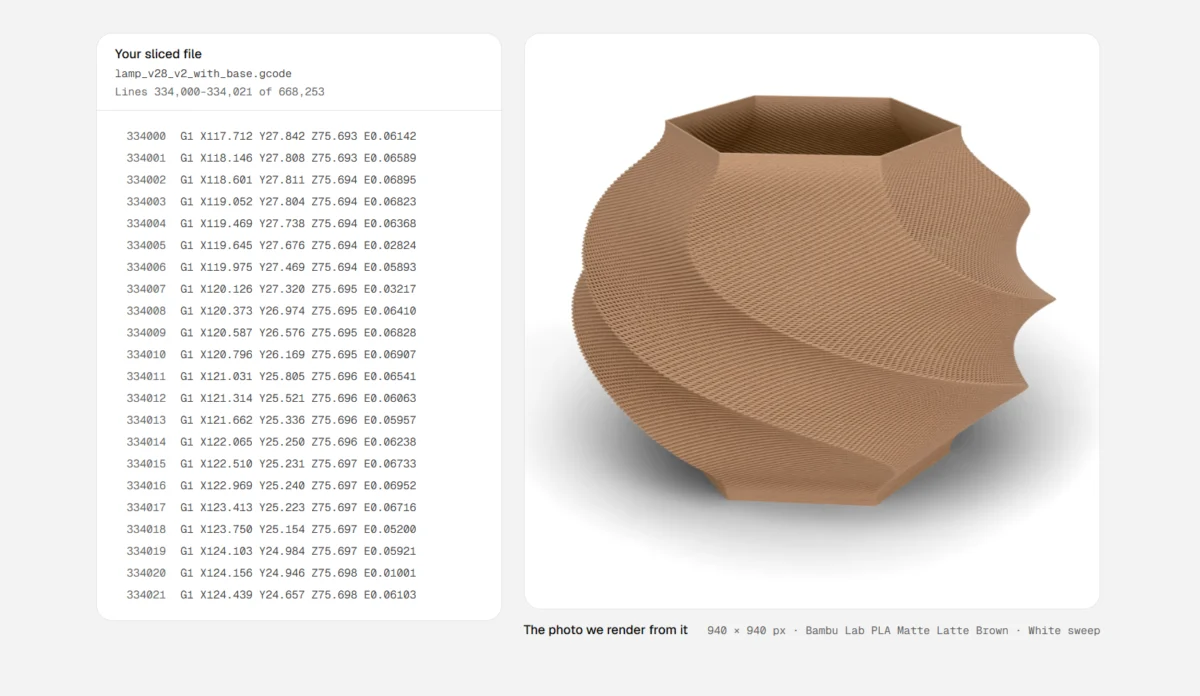

Extrudio, by contrast, adopts a "bottom-up" approach. It ingests G-code—the machine-readable script that dictates extruder movement, temperature, and material flow—and virtually "prints" the object within a digital environment. By sweeping a virtual bead of plastic along the specific toolpaths defined in the code, the software accurately reproduces the physical reality of the print.

Key Features of the Extrudio Engine:

• Layer-Line Simulation: Rather than smooth surfaces, the tool renders the precise, stacked horizontal layers that define FDM printing.
• Artifact Replication: It accurately depicts "stair-stepping" on curved surfaces and spheres, a common phenomenon caused by the discrete layer heights of 3D printing.
• Contextual Environments: Users can place their "printed" models into various high-fidelity studio settings, ranging from minimalist white backgrounds to lifestyle scenes like workshops or domestic kitchens.
• Material Versatility: The software allows users to simulate different filament types, colors, and printing techniques, providing a visual preview of the end result without the multi-hour wait for a physical print.

Chronology: The Evolution of Print-Accurate Rendering

The need for this technology has grown in tandem with the "prosumer" 3D printing boom. For years, the workflow for presenting a 3D-printed part to a client involved a tedious loop: design, slice, print, post-process, and photograph.

1. The Era of "Clean" CAD (2010–2018): Designers relied heavily on tools like KeyShot or SolidWorks Visualize. While these produced stunning, photorealistic images, they looked like injection-molded parts. This created a "buyer expectation gap," where customers were disappointed when the physical print arrived with visible layer lines.
2. The Rise of Slicer Previewers (2019–2023): Slicers like PrusaSlicer and Cura began offering more sophisticated "preview" modes that allowed users to visualize the toolpath. However, these were utilitarian, designed for debugging rather than aesthetic presentation.
3. The Emergence of Extrudio (2024–Present): Extrudio entered the scene to fill the niche between "utilitarian slicer preview" and "high-end marketing render." By prioritizing the aesthetic output of the G-code, the software enables a "what you see is what you get" (WYSIWYG) experience for additive manufacturing.

Supporting Data: Why "Reality-Based" Rendering Matters

The shift toward G-code-based rendering is not merely an aesthetic preference; it is a data-driven response to the realities of the market. According to recent industry surveys, nearly 40% of small-batch manufacturers report that customers are surprised or dissatisfied by the surface texture of 3D-printed items when viewing them only through standard, smooth CAD renders.

Comparative Metrics: CAD vs. Extrudio

The utility of this tool is underscored by the current trend in "support-free" printing. As researchers develop new methods—such as the recent advancements in slicer technology that enable horizontal overhangs without support structures—the ability to visualize how these complex toolpaths will look becomes paramount. Extrudio allows a designer to verify if a new, experimental printing technique will leave behind unwanted artifacts before committing the time and material to a real-world print.

Official Responses and Industry Reception

The response from the professional 3D printing community has been largely positive, though tempered with a realistic understanding of the software’s limitations.

"Extrudio isn’t trying to replace the physical photograph," says one prominent additive manufacturing consultant. "Instead, it’s a bridge. If you are selling a 3D-printed product on an e-commerce platform, you still want that professional photo of the physical object. But for the design-review phase, or for listing hundreds of color variations that you haven’t printed yet, Extrudio is a massive time-saver."

Critics, however, point out that G-code is machine-specific. A G-code file generated for a Prusa MK4 may not translate perfectly into an Extrudio render if the software isn’t calibrated for that specific printer’s extrusion profile. The developers have acknowledged this, noting that future updates will focus on "Printer Profiles" to ensure that the virtual bead of plastic matches the specific nozzle diameter and flow characteristics of the user’s actual machine.

Implications for the Future of 3D Printing

The implications of software like Extrudio are far-reaching, particularly for the democratization of professional-grade manufacturing.

1. Reducing Waste

By visualizing the print artifacts, designers can identify problematic toolpaths that might lead to part failure or aesthetic defects. This "virtual prototyping" cycle significantly reduces the amount of failed prints, saving filament and electricity.

2. Streamlining Sales and Marketing

For small-scale 3D printing businesses, the cost of printing and photographing every iteration of a product in every available color is prohibitive. Extrudio offers a way to create high-quality, realistic catalog imagery that accurately reflects the "printed" aesthetic, managing customer expectations and reducing returns.

3. The "Hybrid" Design Workflow

We are entering an era where design software and manufacturing software are merging. We are moving away from designing a "shape" and toward designing a "process." By rendering the process (the G-code) rather than the static shape, engineers can better understand how machine settings like print speed, cooling, and layer height interact with the final geometry.

4. Innovation in Slicing

As we look at other recent innovations—such as new slicer algorithms that enable complex geometries without the need for support material—the role of visualization tools becomes critical. If a designer uses a novel, experimental slicing technique, they need to see exactly how those toolpaths will manifest on the final part. Extrudio provides the visual feedback loop necessary to iterate on these advanced techniques.

Conclusion

Extrudio serves as a timely reminder that in the world of 3D printing, the "model" is only half the battle. The true product is the result of the physical translation of digital instructions into a tangible, layer-by-layer reality.

While it does not replace the raw authenticity of a physical print, it provides a powerful, efficient, and highly accurate way to visualize that reality before the first drop of plastic is even heated. As additive manufacturing continues to mature from a hobbyist’s curiosity into a professional manufacturing pillar, the tools that bridge the gap between design and physical output—like Extrudio—will become an essential part of the modern designer’s toolkit. Whether for rapid prototyping, marketing, or complex process validation, the ability to "see" your G-code is a capability that is long overdue in the CAD ecosystem.
