Beyond the Optical Limit: Exploring the Nanoscale with Atomic Force Microscopy

In the landscape of modern scientific imaging, we are accustomed to the limitations of light. From the earliest glass lenses of the 17th century to the sophisticated confocal systems of today, optical microscopy has been constrained by the diffraction limit of light—a physical barrier that prevents us from seeing the truly infinitesimal. Enter the Atomic Force Microscope (AFM), a revolutionary tool that bypasses optics entirely, replacing photons with a physical probe to map the surface of the world at the scale of single atoms.

In a recent technical deep dive, experimenter Ben Krasnow has provided a masterclass in the practical applications of AFM technology. By stepping away from theoretical academic environments and bringing these instruments into a hands-on lab setting, Krasnow illustrates that the nanoscopic world is not just a subject for ivory-tower research, but a tangible, explorable frontier for the modern maker and scientist.

The Mechanism: How AFMs "See" Without Light

To understand the significance of Krasnow’s work, one must first appreciate the fundamental difference between an AFM and a traditional microscope. An AFM does not "photograph" a sample in the conventional sense. Instead, it utilizes a microscopic cantilever tipped with an ultra-sharp probe—often only a few nanometers in radius—to "feel" the topography of a surface.

As the probe scans across the sample, it interacts with the forces between the tip and the atoms on the surface. These interactions—which can be van der Waals forces, capillary forces, or electrostatic forces—cause the cantilever to deflect. A laser reflected off the back of this cantilever tracks these minute movements, building a three-dimensional height map of the specimen. The result is a topographic image with resolution so precise that it can discern features below a single nanometer.

Chronology of a Nanoscale Investigation

Krasnow’s recent project, detailed in his latest video release, serves as a chronological journey through the versatility of the AFM. His investigation began with a foundational challenge: visualization of the probe itself.

Phase 1: High-Speed Stroboscopic Visualization

The probe of an AFM does not remain static; it oscillates at high frequencies—in this instance, nine kilohertz—to maintain sensitivity and avoid damaging the sample. Visualizing such rapid mechanical motion is impossible with standard high-frame-rate cameras. By utilizing a stroboscopic welding camera synced to the oscillation frequency of the cantilever, Krasnow was able to "freeze" the motion of the probe, providing a rare glimpse into the hyper-fast mechanical environment of the nanoscale.

Phase 2: Biological Preparation and Imaging

Moving from mechanical calibration to biological inquiry, Krasnow turned his attention to bacteria harvested from nattō (fermented soybeans). The challenge in imaging biological samples with an AFM is surface preparation. Biological entities are often soft and loosely attached to surfaces, making them difficult to scan without the probe "sweeping" them away.

Krasnow employed a sophisticated substrate technique: spin-coating a thin layer of gelatine onto a silicon wafer. The gelatine acts as a biological "glue," electrostatically binding the bacterial cells to the surface. After centrifuging and washing the samples to remove contaminants, the AFM revealed crisp, detailed imagery of the bacterial structures. Perhaps most notably, the spin-coating process inadvertently oriented the bacteria in a uniform direction, demonstrating how substrate preparation influences the ultimate data output.

Phase 3: Advanced Material Analysis

The investigation extended into the realm of synthetic materials, specifically silver nanoprisms and track-etched membranes. Track-etched membranes are a marvel of material science, created by bombarding plastic films with high-energy ions to create "tracks," which are then chemically etched into consistent, high-precision pores. The AFM allowed for the verification of these pore sizes, proving that the manufacturing process met the required specifications at the nanometer scale.

Phase 4: Validating Laser-Etched Gratings

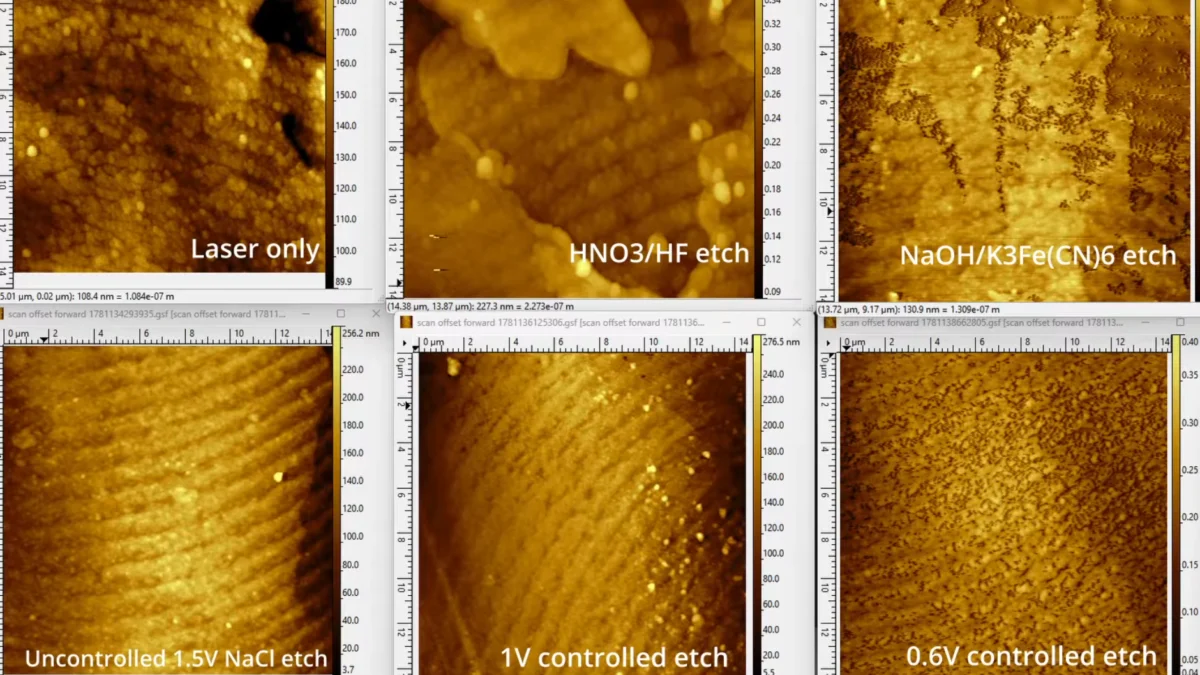

In a final application, Krasnow utilized the AFM to analyze his own laser-etched diffraction gratings. By attempting to selectively etch away the metal exposed to the laser, he used the AFM as an inspection tool to confirm whether the unwanted metal had been successfully stripped. This iterative process—etching, imaging, and re-evaluating—highlights the AFM’s utility as a diagnostic tool in micro-fabrication, helping to refine electrochemical etching processes that standard light microscopy would be unable to verify.

Supporting Data: The Anatomy of an AFM Experiment

The success of these experiments relies on several key technical pillars:

1. Substrate Flatness: The use of silicon wafers provides an atomically flat background, which is essential. If the background is not significantly flatter than the subject, the AFM cannot resolve the specimen’s true height.
2. Force Control: The ability to modulate the force exerted by the probe is the most critical variable. If the force is too high, the probe destroys the sample (a common issue with biological films). If it is too low, the signal-to-noise ratio renders the image useless.
3. Environmental Stability: Because the AFM measures angstrom-level movements, the entire system is hyper-sensitive to vibration. Even the ambient noise of a laboratory can introduce artifacts, requiring the heavy dampening systems typically associated with high-end microscopy.

Implications: The Democratization of Nanotechnology

The most striking implication of Krasnow’s work is the shifting accessibility of high-resolution imaging. For decades, AFMs were sequestered in government labs or university cleanrooms. Today, the availability of secondary market instruments and the proliferation of "DIY" designs—some of which are capable of resolving individual atoms—suggest a shift toward the democratization of nanoscience.

When an individual can investigate the surface of a bacteria or the precision of a laser-etched diffraction grating in a home lab, the barriers to entry for nanotechnology research are significantly lowered. This does not merely foster hobbyist curiosity; it allows for rapid prototyping of materials and biological sensors that were previously out of reach for independent researchers.

Challenges and Future Perspectives

While the results are impressive, the professional community acknowledges that AFM technology remains notoriously difficult to master. Unlike a scanning electron microscope (SEM), which provides a wide field of view, an AFM is a tactile experience. It is slow, prone to tip degradation, and requires a deep understanding of surface chemistry.

Furthermore, the "selective etching" experiments mentioned by Krasnow underscore the ongoing difficulty in manipulating matter at the nanoscale. As we move toward the manufacturing of quantum dots, nanocircuits, and advanced biosensors, the ability to verify these structures via AFM is becoming a mandatory step in the R&D cycle.

Conclusion

Ben Krasnow’s work serves as a reminder that the most profound discoveries often happen at the intersection of traditional engineering and cutting-edge measurement technology. By treating the Atomic Force Microscope not as an abstract scientific monolith but as a functional, tactile tool, he has bridged the gap between theoretical physics and practical application.

Whether one is a student, a professional engineer, or a dedicated maker, the ability to "touch" the atomic world is no longer a fantasy. As the techniques for DIY microscopy continue to evolve, we can expect to see an increase in independent breakthroughs, proving that even in the world of the infinitely small, there is plenty of room for exploration.

Acknowledgments: Special thanks to [H Hack] for bringing this investigation to light. For those interested in the DIY movement, historical projects such as the 2014 and 2025 community-built AFM initiatives continue to serve as the definitive blueprints for those wishing to enter this field.
