Precision at the Edge: Yokogawa’s WT1500 Redefines Power Analysis for Modern Drive Systems

The landscape of power electronics is undergoing a seismic shift. Driven by the rapid transition toward electrification in the automotive sector, the expansion of renewable energy grids, and the emergence of ultra-efficient power conversion technologies, the demands placed on measurement instrumentation have never been higher. Engineers are no longer merely measuring volts and amps; they are managing complex, high-frequency, and high-voltage power flows that require a new level of synchronization between electrical and mechanical domains.

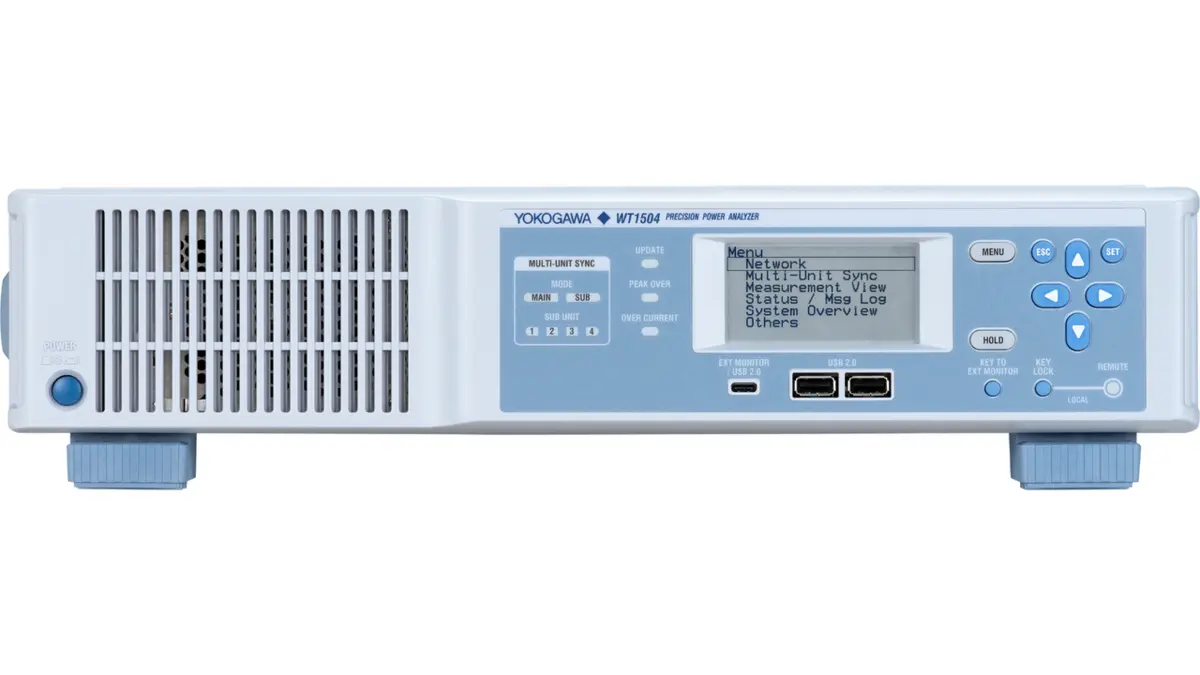

Yokogawa’s introduction of the WT1500 precision power analyzer marks a strategic response to these challenges. By consolidating high-voltage measurement capabilities, mechanical signal processing, and massive scalability into a single, unified platform, the WT1500 aims to eliminate the fragmentation that has historically plagued development labs.

Main Facts: The Core of the WT1500

The WT1500 is a modular, high-performance power analyzer designed to serve as the backbone of modern R&D test benches. Its architecture is built around two primary pillars: versatility and precision.

• High-Voltage Direct Measurement: Capable of measuring up to 2000 V DC and 1500 V AC, the device eliminates the need for external high-voltage dividers, which are not only cumbersome but also introduce potential sources of measurement uncertainty.
• Integrated Mechanical Analysis: The device features optional, direct inputs for resolvers and encoders, allowing it to capture torque, speed, and rotor position alongside electrical parameters.
• Scalability: A single unit supports up to four power modules and four motor evaluation channels. Through optical fiber synchronization, up to five WT1500 units can be linked, creating a massive, phase-locked system of 20 synchronized power channels.
• High-Bandwidth Capability: With a 2 MHz bandwidth and a 1 MHz effective measurement range, the device is specifically engineered to handle the fast switching speeds of silicon carbide (SiC) and gallium nitride (GaN) power semiconductors.

Chronology of Development: Addressing the "Kilovolt Standard"

The development of the WT1500 was not an arbitrary product cycle update but a direct reaction to changing industrial standards. Over the last decade, the industry has seen a steady migration toward higher battery voltages to increase efficiency and decrease charging times in electric vehicles (EVs).

Phase 1: The Shift to High Voltage
As manufacturers moved from 400V to 800V and even 1000V+ architectures, traditional measurement equipment hit a ceiling. Engineers were forced to rely on external attenuators and signal conditioners. These additions increased the "footprint" of the test bench and added complexity to the calibration chain. Yokogawa recognized this pain point early in the development cycle, shifting the focus to internal, direct-input high-voltage modules.

Phase 2: The SiC/GaN Revolution
The widespread adoption of wide-bandgap (WBG) semiconductors like SiC and GaN changed the nature of the signals being measured. These components enable faster switching frequencies, which in turn require higher sampling rates to capture the true power loss. Yokogawa responded by implementing a 2.5 MS/s, 16-bit digitization process for both voltage and current paths, ensuring that high-frequency harmonics are not missed.

Phase 3: The Holistic Integration
The final stage of development focused on the "mechanical-electrical" gap. Historically, engineers had to synchronize power analyzers with separate data acquisition systems (DAQ) to correlate electrical power with mechanical output. By integrating motor evaluation directly into the WT1500, Yokogawa effectively collapsed two disparate workflows into one, allowing for real-time efficiency calculations on a single time base.

Supporting Data: Why Precision Matters

In the world of high-performance power electronics, a margin of error of 0.1% can be the difference between a successful design and a failure. The WT1500 differentiates itself through its rigorous accuracy specifications.

• Guaranteed Accuracy: The system provides an accuracy of up to ±0.038% for DC and 50/60 Hz measurements. Crucially, Yokogawa provides these specifications with a 100% confidence interval, a rarity in the industry where many manufacturers provide "typical" values that may not hold up under stress.
• Dynamic Filtering: The device utilizes independent digital filter paths for broadband measurements and harmonic analysis. This prevents "aliasing" or interference between the fundamental frequency analysis and the capture of high-frequency noise.
• Harmonic Analysis: The unit provides comprehensive analysis of grid and inverter signals, supporting up to the 100th harmonic. This is essential for compliance testing under modern grid-code regulations, which mandate strict limits on total harmonic distortion (THD).

Official Perspective: Simplifying the Test Bench

According to product specialists at Yokogawa, the philosophy behind the WT1500 is to reduce the "measurement overhead" that hampers R&D teams. By providing internal power for current clamps and zero-flux sensors, the WT1500 serves as a central hub for all sensors, removing the need for auxiliary power supplies.

Furthermore, the implementation of the IEEE 1588 Precision Time Protocol (PTP) highlights the manufacturer’s commitment to the broader test ecosystem. "In a modern lab, the power analyzer is one node in a larger network," a company representative noted. By supporting PTP, the WT1500 ensures that its data can be perfectly aligned with external temperature sensors, CAN-bus logs, and mechanical vibration data, providing a "single source of truth" for the entire system under test.

Implications: The Future of Power Analysis

The launch of the WT1500 has profound implications for the automotive and energy sectors.

1. Accelerated Development Cycles

By integrating mechanical and electrical signals, the time required to calculate motor efficiency and inverter performance is reduced from hours (post-processing data) to seconds (real-time visualization). This accelerates the "design-test-iterate" loop, allowing companies to bring EVs and chargers to market faster.

2. Enhanced Reliability in High-EMC Environments

The use of optical fiber connections for multi-unit synchronization is a significant advantage. In an environment dominated by high-power inverters and switching transients, electrical noise is the primary enemy of signal integrity. Fiber-optic communication between units ensures that the master-slave synchronization is immune to electromagnetic interference (EMI), allowing the measurement system to be placed closer to the high-voltage inverter without compromising data quality.

3. Future-Proofing for Grid Stability

As renewable energy sources like wind and solar require more complex power conditioning to integrate into the grid, the demand for precise harmonic analysis will grow. The WT1500’s ability to analyze dual-frequency domains simultaneously—measuring the grid side and the inverter side at the same time—positions it as an essential tool for utility-scale power electronics testing.

Conclusion

The Yokogawa WT1500 is more than a measuring tool; it is a platform designed to bridge the gap between complex electrical theory and practical mechanical reality. By addressing the core issues of high-voltage safety, high-bandwidth precision, and cross-platform synchronization, it sets a new benchmark for what engineers should expect from their test equipment. As the world moves toward a fully electrified future, the ability to analyze energy flows with absolute clarity—without the interference of outdated, fragmented measurement methods—will be the key to unlocking the next generation of power efficiency.
