Precision in the Field: How High-Tech Robotics is Revolutionizing Potato Harvesting

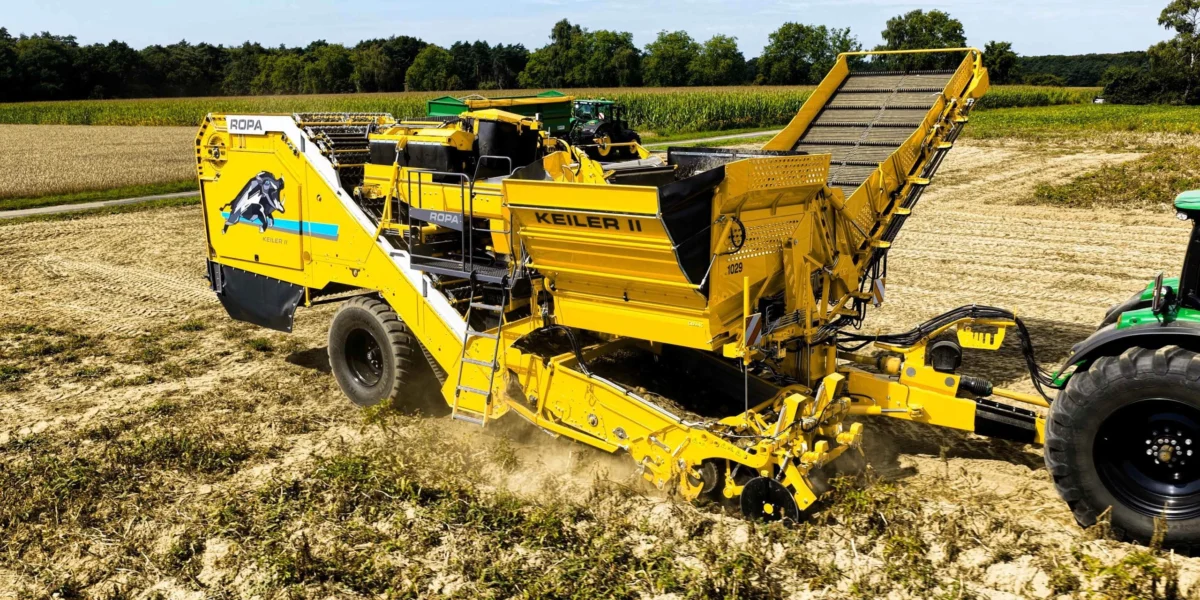

The modern agricultural landscape is undergoing a silent, high-tech revolution. While the public often views large-scale farming machinery as little more than robust, brute-force mechanics, the reality behind the wheel of a modern potato harvester is one of sophisticated software, real-time sensor integration, and precise automation. A new technical breakdown from ROPA, focusing on their Keiler 2 RK22 harvester, provides a rare, deep-dive look into how these machines transform the arduous task of root-crop extraction into a seamless, high-yield operation.

Main Facts: The Anatomy of a Modern Harvester

The fundamental process of harvesting potatoes remains a mechanical challenge: lifting a crop from the earth, separating it from soil, stones, and haulms (foliage), and transporting the clean product into a bunker or a companion vehicle. However, the Keiler 2 RK22 demonstrates that the "mechanical" aspect is now merely the chassis for a complex digital nervous system.

At the heart of the system is a centralized control interface within the tractor cab. Operators like Stefan Grimm, a seasoned contractor from Goch, Germany, manage the harvest through a combination of physical multi-function joysticks and a high-definition, customizable software display. This is supplemented by a multi-screen camera array, which provides the operator with real-time visual data from the bowels of the machine—a crucial requirement for maintaining quality in dusty, high-speed environments.

The harvester utilizes an automated system to manage the intake, using hydraulic adjustments to ensure the intake shares (the digging elements) remain at the perfect depth relative to the potato ridges. This reduces crop damage—a critical metric, as bruised or cut potatoes suffer from reduced shelf life and lower market value.

Chronology of the Harvest: From Field Entry to Bunker Load

To understand the complexity of the operation, one must follow the path of the tuber through the machine:

1. Deployment: Upon entering the field, the operator uses the terminal to unfold the machine. The axle is extended for stability, and the bunker mechanism is deployed.
2. Digging: The intake shares lift the earth and crop. Automated systems adjust the height and angle of the intake, compensating for soil density and moisture.
3. The Sieving Channel: The harvested material passes through a series of conveyor belts. The primary goal here is to remove sand and soil. This stage is a balancing act; the machine uses "knockers" to vibrate the belts and loosen dirt, but these must be calibrated carefully to prevent the potatoes from striking the metal components too hard.
4. Separation: Once the heavy soil is removed, the haulm (plant matter) is separated via specialized chains.
5. Final Quality Control: The potatoes move onto "hedgehog belts" (belts with rubber studs). These provide a gentle, high-friction surface that further cleans the crop without causing physical trauma.
6. Storage/Transfer: The clean potatoes are either moved into the internal bunker or discharged directly onto a trailer via an elevator belt.

Supporting Data: Automation and Precision Controls

Modern harvesters are no longer "set and forget" machines. They are dynamic systems. According to the technical documentation provided by ROPA, several key automated features have become standard in the industry:

• Damm-Tracking: The harvester utilizes automatic steering to keep the digging units centered over the ridges. This prevents the machine from accidentally slicing through the tubers.
• Tilt Compensation: As fields are rarely perfectly flat, the harvester’s internal sensors detect the incline and adjust the harvesting geometry to ensure uniform depth and efficient soil separation.
• Bunker Management: Automated filling logic ensures the internal storage bunker is filled evenly, preventing the machine from becoming unbalanced and ensuring maximum capacity utilization.
• Haptic Feedback and Manual Overrides: Despite the heavy automation, the operator retains control via a potentiometer-equipped knob to adjust the speed of the sorting belts. This allows the operator to react instantly to varying soil moisture levels or crop density, which can change significantly even within a single row.

Official Perspectives: The Evolving Role of the Operator

The transition to digital-heavy machinery has fundamentally altered the role of the agricultural contractor. As ROPA and other manufacturers highlight, the physical labor involved in operating the machine has decreased, but the required level of technical literacy has skyrocketed.

"The job is less about raw force and more about data management," notes the ROPA technical team. "An operator must be able to interpret the diagnostic data on the display—including oil temperatures, hydraulic pressures, and RPMs—while simultaneously monitoring the video feeds for potential blockages or mechanical wear."

For contractors, this represents a significant shift in business models. Maintaining a fleet of Keiler 2 harvesters requires not just mechanics, but individuals capable of troubleshooting software glitches and calibrating complex sensor arrays. The reliance on these systems is justified by the output: a cleaner, higher-quality crop with significantly lower waste, which in turn justifies the high capital investment of such sophisticated machinery.

Implications: The Future of Agricultural Engineering

The implications of this technology extend far beyond the potato field. The integration of high-definition camera monitoring and adaptive, AI-assisted control systems in the Keiler 2 is a microcosm of the "Smart Farming" movement.

1. Sustainability and Soil Health

By automating the depth of the digging shares and the intensity of the sieving process, these machines minimize the amount of earth moved. This leads to lower fuel consumption and less soil compaction, both of which are critical for sustainable farming practices.

2. Economic Efficiency

The cost of agricultural labor continues to rise across Europe and North America. Automating the routine tasks of the harvester allows a single operator to manage a high-capacity machine, effectively increasing the "yield per man-hour." This efficiency is vital for farmers competing in a global market where margins are razor-thin.

3. The Need for Continuous Education

As machines become more complex, the agricultural sector faces a widening skills gap. The need for specialized training for the next generation of farmers and technicians is more pressing than ever. Manufacturers are responding by creating detailed explanatory content and digital interfaces that are increasingly intuitive, yet the underlying demand for technical expertise remains a challenge.

4. Precision Maintenance

The focus on diagnostics—such as the warnings for oil temperature or mechanical stress—enables predictive maintenance. By alerting the operator to a failing bearing or a hydraulic leak before a catastrophic failure occurs, these systems significantly reduce machine downtime during the critical, short-window harvest period.

Conclusion

The Keiler 2 RK22 and its contemporaries represent the peak of modern agricultural engineering. They are no longer just tools, but mobile factories that perform delicate processing in some of the most demanding environments on earth. As the industry moves forward, the synergy between robust mechanical design and advanced digital control will continue to define the success of modern agriculture, ensuring that the global food supply remains consistent, efficient, and increasingly automated.

For the operator, the challenge remains: to harness the power of the machine while maintaining the "fingertip feel" that can only come from years of experience in the field. The screen may show the data, but it is the human judgment that ultimately dictates the success of the harvest.
