Resurrection Through Code: How Open Source Firmware is Saving Legacy Onkyo Receivers

For decades, the high-fidelity audio market has been plagued by a cycle of planned obsolescence and catastrophic hardware failure. Among the most notorious victims of this cycle are the Onkyo AV receivers produced during the early 2010s. For many owners, the experience is identical: the unit powers on, the lights flicker to life, the display indicates that the device is ready—but the silence is deafening. No audio signal passes through.

For a long time, this was considered a terminal diagnosis. However, a new open-source project, OSIRIS, is changing the narrative. By bypassing proprietary constraints and enabling the use of modern, reliable hardware, developer [Jokūbas] is breathing new life into high-end audio equipment that was otherwise destined for the landfill.

The Core Failure: The Texas Instruments D830 Bottleneck

To understand why OSIRIS is a breakthrough, one must first understand the mechanical vulnerability at the heart of the Onkyo units, such as the TX-NR717. These receivers rely on a sophisticated digital signal processor (DSP) architecture centered around the Texas Instruments (TI) D830 chip.

The D830 is the "brain" of the receiver’s audio chain. It manages everything from decoding multi-channel surround sound formats to handling digital-to-analog conversion. The problem, as identified by the hardware hacking community, is twofold. First, the D830 itself is prone to thermal fatigue and failure over years of continuous operation. Second, the architecture relies on a 64 MiB NAND flash chip to store the essential firmware required for the DSP to initialize.

When these components fail, the proprietary Onkyo firmware—locked away in a factory-sealed ecosystem—is unable to recover. Owners who attempted to repair these units in the past were hit by a "double-wall" of hardware restrictions:

1. The Component Barrier: The original TI D830 chips are increasingly difficult to source, and even if found, they carry the same inherent design flaws that caused the original to fail.
2. The NAND Compatibility Wall: Even if a user managed to source a modern, more robust NAND flash chip, the original Onkyo firmware was hardcoded to interact only with 512-byte page architectures. Modern flash storage utilizes 2 KiB or 4 KiB pages, rendering current-market replacements incompatible with the stock software.

Chronology of a Restoration: From "Bricked" to Booting

The journey to an open-source solution did not happen overnight. The failure of these receivers has been a documented pain point in audio-visual forums for over a decade.

• 2014–2018 (The Era of Silence): As the affected Onkyo units aged, the "no-sound" failure became widespread. Owners were forced to rely on expensive, authorized repair centers that often charged more than the unit’s depreciated value, or simply discard the equipment.
• 2020–2023 (Initial Investigations): Hardware enthusiasts began probing the boards of defunct units. Initial efforts focused on identifying the culprit as the DSP/NAND pairing. Small-scale experiments with "reflowing" the chips (using heat to re-seat solder joints) provided temporary fixes but failed to address the underlying software incompatibility.
• 2024–2025 (The Development of OSIRIS): Recognizing that the hardware could be replaced if the software was made flexible, developer [Jokūbas] began the arduous process of reverse-engineering the firmware environment. The goal was to create a "middleware" or an entirely new OS that could communicate with the D830 architecture while being modular enough to support modern memory addressing.

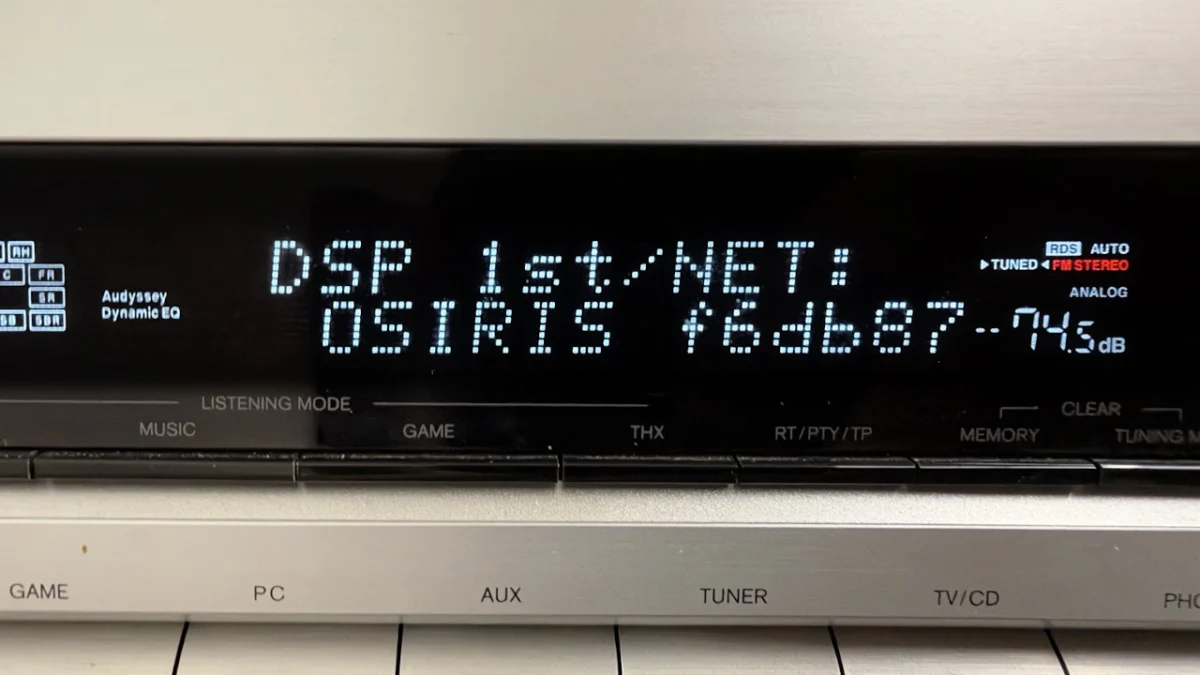

• October 2026 (The Breakthrough): The OSIRIS project reached a milestone where it could successfully initialize a replacement chip, verify the hardware, and output audio. While still in a nascent, "work-in-progress" state, it proved that the hardware—which had been abandoned by its manufacturer—could indeed be reclaimed by its owners.

Technical Implications: Why Modern NAND Matters

The ability of OSIRIS to address modern NAND flash is perhaps its most significant technical achievement. By bridging the gap between the 512-byte page limitation of the original firmware and the 4 KiB standards of today, the project effectively future-proofs the repair process.

When a user replaces a failed 64 MiB chip with a modern equivalent, OSIRIS acts as a translator. It allows the receiver to interface with hardware that is not only easier to procure but is also manufactured with more reliable silicon processes than the original components from 2012.

Furthermore, the firmware includes support for pin-compatible alternatives to the D830, such as the OMAP-L137. This means that a repair technician is no longer beholden to "New Old Stock" (NOS) parts that may have been sitting in a warehouse for a decade. Instead, they can utilize modern, available, and stable alternatives, fundamentally changing the economics of the repair.

Official Responses and Industry Context

Onkyo, like many other legacy consumer electronics manufacturers, has faced significant challenges in supporting its older product lines. In 2021, the parent company, Onkyo Home Entertainment, filed for bankruptcy and eventually sold its audio division to a joint venture between Sharp and Premium Audio Company (a subsidiary of Voxx International).

In the wake of these structural changes, official support for older receivers like the TX-NR717 has effectively evaporated. There is no official "patch" for the DSP failure, and there is no manufacturer-provided way to update the firmware to accommodate modern hardware replacements.

From a corporate perspective, the OSIRIS project exists in a grey area. While it violates no copyright laws—as it is a completely original, clean-room implementation—it effectively extends the life of a product for which the manufacturer no longer wishes to be responsible. Historically, manufacturers have viewed such projects with skepticism, fearing that third-party firmware could cause safety issues or damage components. However, in the case of a "dead" receiver that would otherwise be discarded, the project is viewed by the community as a net positive, preventing e-waste and providing value to the consumer long after the warranty has expired.

Implications: A New Era for Consumer Electronics

The success of OSIRIS carries broader implications for the "Right to Repair" movement and the future of consumer electronics.

1. The Death of E-Waste

Every year, millions of tons of consumer electronics end up in landfills. Often, these devices are discarded because one small, proprietary component fails, and the software ecosystem prevents the use of a generic, functional replacement. Projects like OSIRIS prove that if software is opened, hardware can be recycled indefinitely.

2. Community-Led Maintenance

We are seeing a shift where the "support lifecycle" of a product is no longer defined by the manufacturer’s bottom line, but by the community’s interest in the device. As long as a device has a dedicated following, its hardware can be maintained, repaired, and even upgraded.

3. The Need for Open Standards

The difficulties faced by [Jokūbas] in reverse-engineering the NAND flash address requirements underscore the danger of proprietary, "black box" firmware. Had the original firmware been open, or had it been designed with standard hardware interfaces, these receivers might never have required such a massive effort to fix. The industry’s shift toward proprietary locking is not just an anti-consumer practice; it is a fundamental design flaw that ensures products fail prematurely.

Future Outlook for OSIRIS

While the OSIRIS project is a massive victory for the "resurrection" of the TX-NR717, it is not yet a plug-and-play solution. The feature list currently shows that many functions remain "untested" or "not implemented." A casual user cannot simply download an app and click "update." This is, for now, a project for the dedicated hobbyist—someone comfortable with soldering, flashing firmware, and troubleshooting hardware.

However, the trajectory is clear. As the documentation improves and the feature set expands, the barrier to entry will lower. What began as a desperate attempt to fix a single receiver has blossomed into a proof-of-concept for how we can fight back against planned obsolescence.

In the world of high-end audio, the goal is "timelessness." An amplifier or a receiver should, in theory, be able to drive speakers for decades. Thanks to the efforts of independent developers, the high-end receivers of the 2010s are getting a second chance to prove that they are more than just a collection of parts destined for the trash. They are, once again, the centerpieces of home audio, resurrected by the very code that was supposed to be their limitation.

For those holding onto a silent, broken Onkyo unit, the message from the hacking community is clear: don’t throw it out just yet. The silence may only be temporary.
