The Backbone of the Energy Transition: How RJ-DIN Rail Couplers are Revolutionizing Modern Electrical Infrastructure

The global energy landscape is undergoing its most significant transformation since the dawn of the industrial age. As nations pivot toward decentralized, renewable-heavy power grids, the demand for "intelligent" infrastructure has skyrocketed. In Germany, the Gesetz zur Digitalisierung der Energiewende (Act on the Digitization of the Energy Transition) mandates that by 2032, nearly every household will be equipped with a digital "Smart Meter."

However, this transition is not merely about replacing analog dials with digital screens; it is a fundamental reconfiguration of how our electrical cabinets—the nerve centers of our homes and factories—process data. As these cabinets become conduits for both high-voltage electricity and sensitive network data, the need for organized, shielded, and scalable connectivity has never been more critical. Enter the RJ-DIN rail coupler, a seemingly modest component that is rapidly becoming the silent hero of the modern smart grid.

Main Facts: The Intersection of Power and Data

At the heart of the modern smart home or industrial facility lies the control cabinet. Historically, these cabinets were static environments, housing simple circuit breakers and relays. Today, they are active network nodes. Smart meters, photovoltaic inverters, battery storage systems, and EV charging stations all require constant communication with one another to optimize energy flow.

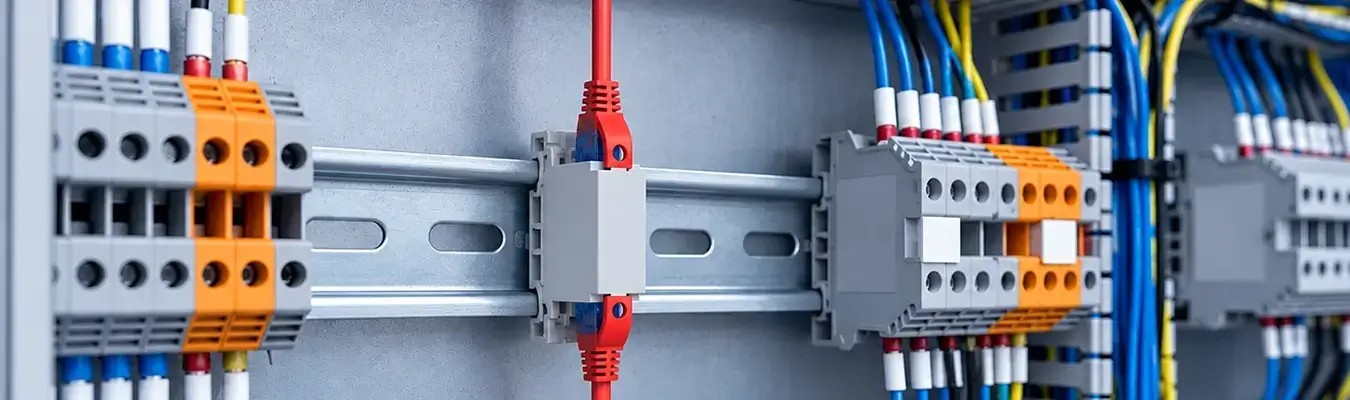

The RJ-DIN rail coupler serves as a bridge between the physical world of electrical distribution and the digital world of networked communication. By providing a standardized, robust interface on a 35mm DIN rail (the universal mounting standard for switchgear), these couplers allow technicians to transition from messy, haphazard cabling to a structured, modular system.

Key Technical Specifications:

• Form Factor: Designed for standard 35mm DIN rails (top-hat rails).
• Interface: RJ45 (Ethernet), RJ12, or RJ11 standards.
• Mounting: Tool-free snap-in mechanisms for rapid installation.
• Shielding: Integrated metallic housing to combat Electromagnetic Interference (EMI).

Chronology: From Analog Cabinets to Intelligent Hubs

To understand the necessity of these components, one must look at the evolution of electrical distribution:

• 1950s–1990s: The Era of Pure Power. Electrical cabinets were strictly for power management. Communication was non-existent; switches were manual, and the "network" was essentially the grid connection itself.
• 2000s–2015: The Rise of Industrial Automation. As PLCs (Programmable Logic Controllers) entered the scene, Ethernet began appearing in industrial cabinets. However, the cabling was often custom-run, fragile, and prone to failure due to the high-vibration, high-heat environment of a switchgear cabinet.
• 2016–2024: The Smart Metering Explosion. With legislative mandates like Germany’s 2032 initiative, the volume of data-transmitting devices in cabinets has exploded. Standard "consumer-grade" network solutions proved insufficient for the strict safety requirements of electrical enclosures.
• The Future (2025 and beyond): The focus is shifting toward "Plug-and-Play" modularity. RJ-DIN rail couplers have become the industry standard for ensuring that technicians can repair, replace, or upgrade modules without stripping wires or reconfiguring the entire network.

Supporting Data: Why Reliability Matters

The integration of network cables into environments saturated with electrical noise (from AC motors, power converters, and high-voltage lines) presents a significant engineering challenge.

1. Signal Integrity and Shielding:
Electrical cabinets are high-interference zones. Without proper shielding, electromagnetic interference (EMI) can degrade network packets, leading to packet loss, latency, or complete device disconnection. High-quality RJ-DIN couplers provide 360-degree shielding, maintaining signal integrity even when positioned directly next to heavy-duty power lines.

2. Thermal Management and Spatial Efficiency:
Space is the most expensive commodity in a switchgear cabinet. DIN rail couplers are typically designed with a "Single Division Unit" (1 TE) width. This ultra-slim profile ensures that adding network connectivity does not require the removal of existing protective components, effectively future-proofing the cabinet without requiring a physical expansion.

3. Maintenance Downtime Reduction:
In a critical infrastructure setting, downtime is measured in lost revenue. By utilizing standardized RJ couplers, a technician can swap out a failed sensor or smart controller in seconds. Without this, the technician would have to perform a manual, time-consuming re-termination of Cat6 or Cat7 cabling, increasing the risk of human error.

Official Perspectives: The Role of Standards

Industry bodies and regulatory authorities have been clear: the digitization of the energy transition cannot rely on "hack-job" cabling. Organizations such as the VDE (Association for Electrical, Electronic & Information Technologies) emphasize that connectivity components within a cabinet must meet the same fire safety and mechanical stability standards as the breakers themselves.

According to industry engineers, the shift toward standardized couplers is not just about convenience; it is a safety requirement. When a network connection is terminated directly onto a DIN rail coupler, it is protected from the mechanical stress of cabinet vibrations. Furthermore, the use of industrial-grade plastics or metallic casings ensures that the component can withstand the thermal fluctuations typical of high-load electrical environments.

Implications: The Future of the Smart Grid

The move toward universal RJ-DIN rail connectivity has profound implications for the future of energy management:

1. Decentralization of Energy

As we move toward "Virtual Power Plants" (where thousands of home batteries are aggregated to balance the national grid), the reliability of the communication link between the smart meter and the inverter is paramount. If the connection fails, the grid loses its visibility into that home’s energy storage, potentially leading to instability. The DIN rail coupler ensures this link remains physically secure.

2. Cybersecurity at the Physical Layer

While cyber-attacks are often discussed in the context of software, the physical layer is a key component of security. By using fixed, enclosed, and industrial-grade connectivity, facility managers can prevent unauthorized tampering. Standardized interfaces also make it easier to implement hardware-level security measures, such as locking covers or tamper-evident port blockers.

3. Sustainability and Modular Design

The "Right to Repair" movement is heavily influencing hardware design. By moving away from permanent, soldered, or hard-wired connections, manufacturers are creating systems that can be easily upgraded. As network standards evolve (e.g., from Gigabit Ethernet to even faster protocols), the RJ-DIN rail coupler allows the internal infrastructure to be updated without needing to replace the entire control cabinet.

Selecting the Right Component: A Buyer’s Guide

For those tasked with upgrading or installing control cabinets, the selection process is critical. When browsing options, consider the following checklist:

• Cat-Class Rating: Ensure the coupler matches your network requirements. Cat6A is currently the recommended baseline for future-proof smart home and industrial applications, supporting 10Gbps speeds.
• Material Quality: Choose couplers with metal-reinforced housings if the cabinet is subject to high vibrations.
• Mounting Compatibility: Ensure the module is designed for a 35mm DIN rail and features a reliable, spring-loaded locking mechanism that does not require a screwdriver to release.
• Certifications: Look for VDE, CE, or UL certifications. In an electrical cabinet, non-compliant plastic components can pose a significant fire hazard.
• Grounding: Check if the coupler provides a path for the cable shield to be grounded to the DIN rail. This is vital for preventing ground loops and reducing EMI.

Conclusion: The Unsung Hero of the Grid

While consumers may focus on the sleek interface of a smartphone app or the efficiency of a solar panel, the true "magic" of the energy transition happens behind the metal door of the distribution cabinet. The RJ-DIN rail coupler is the unsung hero of this process. By transforming a chaotic, disorganized mass of wires into a clean, modular, and reliable network, these components provide the stability necessary to manage the energy demands of the 21st century.

As we march toward 2032 and beyond, the role of these small, intelligent interfaces will only grow. They represent the bridge between the old world of dumb, analog power and the new, interconnected world of smart, efficient, and sustainable energy. Whether you are an industrial engineer designing a factory automation system or a homeowner setting up a smart energy hub, the investment in high-quality DIN rail connectivity is an investment in the long-term resilience of your system.
