The Digital Backbone of Energy: How RJ-DIN Rail Couplers are Revolutionizing Smart Infrastructure

The global energy sector is currently undergoing its most significant transformation since the invention of the power grid. As nations transition toward decentralized, renewable energy systems, the demand for "intelligence" at every node of the electrical supply chain has reached critical mass. In Germany, the Gesetz zur Digitalisierung der Energiewende (Act on the Digitalization of the Energy Transition) mandates that all households be equipped with digital smart meters by 2032. This legislative push is more than just a change in billing hardware; it represents a fundamental shift in how electrical distribution cabinets function.

As these cabinets evolve from passive circuit protection hubs into active, data-driven control centers, the complexity of internal cabling has skyrocketed. Managing this complexity requires robust, reliable, and standardized connectivity. Enter the RJ-DIN rail coupler—a compact yet vital component that is rapidly becoming the gold standard for organizing high-speed data communications within the industrial and residential electrical environment.

Main Facts: The Intersection of Power and Data

At the heart of the modern smart cabinet lies the need for seamless communication between electricity meters, gateways, and control systems. Traditional wiring methods—often involving loose cables and improvised connection points—are increasingly insufficient for the high-frequency, low-latency requirements of smart grid infrastructure.

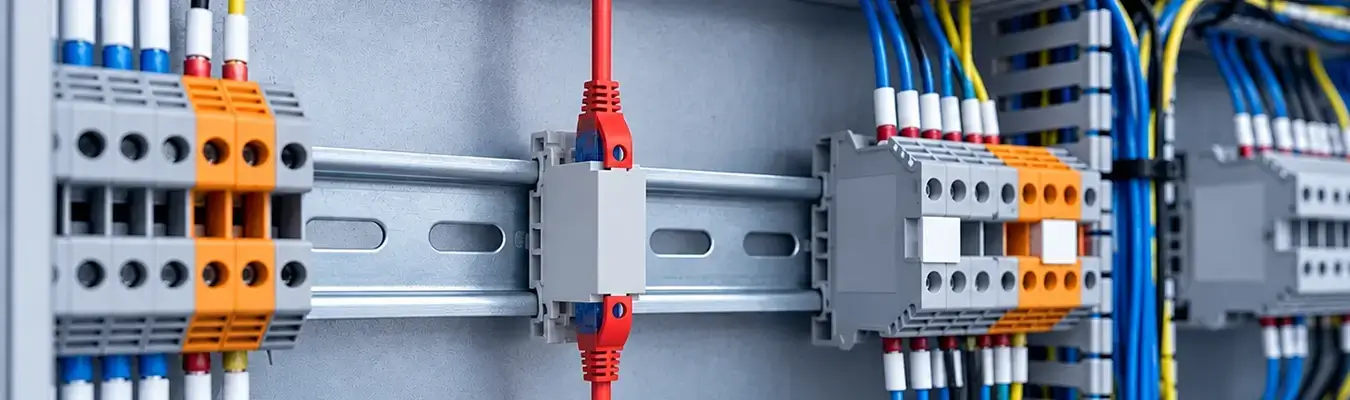

The RJ-DIN rail coupler serves as a bridge. It is an industrial-grade interface designed to mount directly onto the standard 35mm DIN rail (often referred to as a "top-hat rail"), which serves as the physical backbone of nearly every electrical distribution box. By providing a fixed, standardized RJ45 interface on the rail, installers can convert messy, unreliable cable runs into a structured, patch-panel-like environment.

Key attributes include:

• Standardization: Utilizing the globally recognized RJ45 (Registered Jack) interface, ensuring compatibility with standard Ethernet protocols.
• Physical Integration: A robust housing that snaps onto the 35mm DIN rail, providing a secure anchor that resists vibrations.
• Organizational Efficiency: Reducing "cable spaghetti" by centralizing entry and exit points for data lines.
• Signal Integrity: Providing high-quality, shielded connections that prevent electromagnetic interference (EMI) from the high-voltage lines typically found in the same cabinet.

Chronology: From Telephony to Smart Grid Integration

The evolution of these components is rooted in the history of the "Registered Jack."

The 1970s and 80s: The RJ system was developed by Bell Labs to standardize the connection between customer premises equipment and the public telephone network. RJ11 and RJ12 became the ubiquitous standards for analog voice communication.

The 1990s and 2000s: With the explosion of the internet, the RJ45 connector emerged as the global standard for Ethernet-based local area networks (LANs). Initially, these were confined to server rooms and office desks.

2010 to Present: The "Internet of Things" (IoT) and the subsequent "Industrial Internet of Things" (IIoT) began to bridge the gap between IT and operational technology (OT). As smart meters, sensors, and remote-controlled breakers became standard, the need to route Ethernet into harsh, cramped environments—such as power distribution cabinets—became apparent.

2024 and Beyond: The regulatory push for universal smart metering has moved these components from specialized industrial use cases into the residential mainstream. The current generation of DIN rail couplers reflects this, prioritizing tool-free installation and high-speed data transmission capacities (Cat 6A and above) to support future-proof bandwidth.

Supporting Data: Why Connectivity Matters in Power Grids

The shift toward smart grids is not merely for convenience; it is a technical necessity. According to energy sector analysts, the data volume produced by a fully digitalized home energy management system (HEMS) can exceed several gigabytes per month.

When routing these data streams through a distribution cabinet, several technical challenges arise:

1. Electromagnetic Compatibility (EMC): Distribution cabinets contain high-current busbars that create significant electromagnetic fields. Standard, unshielded cables can experience signal degradation or total data loss. High-quality RJ couplers are designed with integrated shielding that maintains a continuous Faraday cage effect, protecting data integrity.
2. Thermal Management: Electrical components generate heat. Dense wiring can block airflow. The slim profile of modern RJ couplers (often just one "modular unit" or 18mm wide) ensures that they occupy minimal space, preventing obstruction of critical ventilation paths.
3. MTBF (Mean Time Between Failures): In a smart home, the "brain" of the energy system must be reliable for 20 years or more. Industrial-grade couplers are built with gold-plated contacts and high-impact polymers, far exceeding the lifespan of consumer-grade networking equipment.

Official Responses and Industry Standardization

Regulatory bodies, including the VDE (Association for Electrical, Electronic & Information Technologies) in Germany, have emphasized that the digitalization of the energy transition must be safe, secure, and maintainable.

Industry leaders in electrical engineering have responded by formalizing the role of modular data interfaces. Official technical guidelines now suggest that where data and power coexist in a cabinet, there must be a clear separation of signal paths. DIN rail couplers are the official answer to this, as they allow for the physical separation of data cabling from high-voltage wiring, effectively creating a "dedicated data zone" on the DIN rail.

Furthermore, cybersecurity experts note that physical access to a home’s network via an outdoor-accessible smart meter is a potential attack vector. Modern coupler designs now incorporate locking mechanisms that prevent unauthorized removal or tampering, adding a layer of physical security to the digital infrastructure.

Implications for the Future of Smart Infrastructure

The move toward universal smart metering is only the first step. The implications of integrating modular data connectivity into electrical distribution extend into several key areas:

1. The Prosumer Era

As homeowners increasingly become "prosumers"—producing their own energy via solar panels and storing it in residential batteries—the distribution cabinet becomes a bi-directional traffic controller. The ability to quickly patch and repatch connections between inverters, battery management systems, and the grid controller is essential for system maintenance. RJ couplers facilitate this "plug-and-play" flexibility.

2. Predictive Maintenance

With high-speed connectivity routed through the DIN rail, smart meters can communicate real-time diagnostic data to grid operators. This allows for predictive maintenance, where the utility company can detect a potential failure in a transformer or a localized grid imbalance before it leads to a blackout. The reliability of the connection—provided by secure rail-mounted couplers—is the weak link that determines the success of this telemetry.

3. Sustainability and Modular Design

The "Right to Repair" movement has gained significant traction in the EU. Traditional, hard-wired systems are notoriously difficult to repair; if a wire breaks, the entire cabinet may need to be rewired. Using modular, plug-in components like RJ couplers allows for "hot-swapping" of damaged cables or modules, significantly reducing e-waste and the environmental impact of maintenance.

4. Smart City Integration

Looking further ahead, the standards set in residential distribution cabinets will dictate the ease of integration for neighborhood-wide smart grids. If every household uses a standardized, rail-based communication interface, city planners can deploy grid-wide management software with much higher confidence.

Conclusion: A Small Component with Massive Influence

It is easy to overlook the small, plastic-encased RJ coupler tucked away in the corner of a distribution box. Yet, it acts as the silent, reliable bridge between the physical world of electrons and the virtual world of data.

As we move toward a future where our energy consumption is dictated by real-time grid availability, renewable production, and artificial intelligence, the infrastructure within our walls must be as capable as the software running it. By ensuring organizational clarity, providing high-speed signal integrity, and facilitating easy maintenance, the RJ-DIN rail coupler has established itself as an essential component of the modern energy landscape.

Whether you are a professional electrician overseeing a commercial installation or a homeowner upgrading your system to accommodate a smart meter, the implementation of these couplers represents a commitment to a safer, more efficient, and truly "smart" electrical future. The digital revolution in energy is happening behind the door of your fuse box—and it is connected, one coupler at a time.
