The Ferranti Files: Unlocking the Engineering DNA of the Sinclair Revolution

For enthusiasts of 1980s computing, the name Sir Clive Sinclair is synonymous with the democratization of technology. His machines—the ZX81, the ZX Spectrum, and the idiosyncratic peripherals that followed—were not merely consumer electronics; they were the gateway drug to a generation of coders, engineers, and digital pioneers. Yet, for decades, the "brain" of these machines remained a black box. The Ferranti Uncommitted Logic Array (ULA) was the secret sauce that allowed Sinclair to pack immense power into a budget-friendly chassis.

Today, that mystery has finally been pierced. Thanks to an extraordinary archival discovery by the digital historian known as "Happy Little Diodes," a treasure trove of original Ferranti design documentation has emerged from the shadows of history. This collection of engineering schematics, handwritten notes, and manufacturing blueprints offers an unprecedented look at how the British home computer boom was built from the silicon up.

The Secret Architecture: The ULA Explained

To understand the magnitude of this discovery, one must appreciate the engineering constraints of 1980. Sir Clive Sinclair’s business model relied on extreme cost-efficiency. While competitors like Commodore and Apple were utilizing sprawling motherboards packed with expensive discrete logic chips, Sinclair sought a more elegant solution.

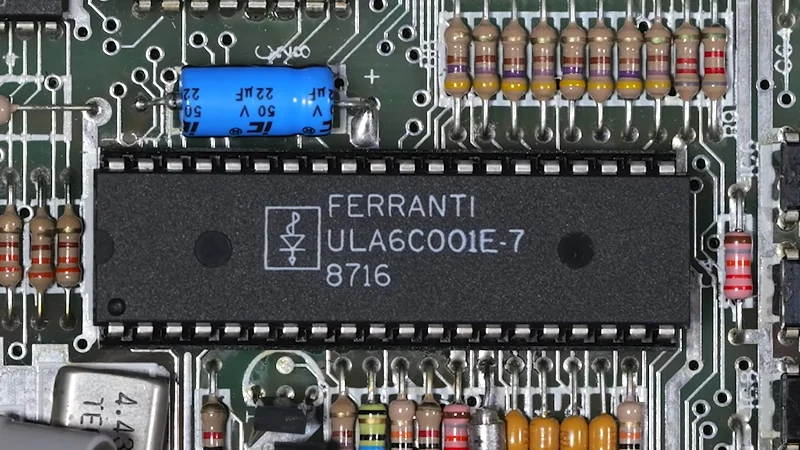

The Ferranti ULA served as the bridge between custom-designed integrated circuits and off-the-shelf parts. An Uncommitted Logic Array is essentially a semi-custom ASIC (Application-Specific Integrated Circuit). Ferranti provided a "master slice" of silicon containing a library of pre-fabricated logic gates. The client—in this case, Sinclair Research—would then design a single "customization layer" (the metal interconnects) to link those gates in a specific configuration.

This process allowed Sinclair to consolidate the logic of dozens of separate chips into a single, compact package. It reduced power consumption, cut physical board space, and slashed manufacturing costs. However, because Ferranti’s process was proprietary and highly complex, the internal logic of these ULAs became a permanent "black box" to the hobbyist community. While modern reverse-engineers have spent years using high-resolution microscopy to map these chips layer by layer, they have often been left guessing at the design intent behind certain gate layouts.

Chronology of a Computing Legend

The timeline of this hardware is a roadmap of the British technology industry’s rapid ascent and eventual consolidation:

• 1979–1981: The inception of the ZX80 and ZX81. These machines established the ULA as the core component for Sinclair’s cost-saving strategy.
• 1982: The release of the ZX Spectrum. This machine pushed the ULA to its limits, handling color graphics and sound generation within a tiny, affordable footprint.
• 1983–1985: The era of expansion. Sinclair introduced the Microdrive, the ZX Printer, and the Interface 1. Each device required bespoke logic, leading to a proliferation of ULA variants.
• 1986: The collapse and acquisition. Following financial instability, the Sinclair brand was sold to Amstrad, helmed by Alan Sugar.
• 2007: Amstrad is acquired by BSkyB (now Sky). The intellectual property rights to the Sinclair archives effectively vanished into the legal holdings of a satellite broadcasting giant.
• 2024: The "Ferranti Files" discovery. A massive cache of internal documents is recovered from an estate, leading to the preservation and public release of the engineering history of the 8-bit era.

The Archival Goldmine: What the Files Reveal

The documents unearthed by Happy Little Diodes are not mere summaries; they are the raw, unfiltered engineering files used on the factory floor. The collection includes:

• Engineering Drawings: High-level architectural diagrams that clarify how the ULA interacted with the Zilog Z80 processor and the system memory.
• Handwritten Design Notes: These offer a rare "human" element, showing the scribbled corrections and logic tweaks made by engineers as they discovered bugs in the silicon during the prototyping phase.
• Version Iterations: Perhaps most valuable to historians is the ability to track the evolution of specific ULA versions. Researchers can now see exactly how Ferranti and Sinclair engineers attempted to patch hardware glitches, effectively witnessing the "bug-fixing" process of the 1980s.
• Peripheral Schematics: The files extend beyond the main computers to the ZX Microdrive, the ZX Printer, and the Sinclair flat-screen TV—a product so ahead of its time that it struggled with the limitations of the manufacturing technology of the day.

Corporate Stewardship: A Rare Act of Transparency

One of the most surprising aspects of this story is the role of Sky. In the world of intellectual property, corporations are notoriously protective, often burying legacy documentation under layers of restrictive NDAs and legal threats.

When the files were discovered, the current rights holders (Sky, via the Amstrad acquisition) were approached. Rather than issuing a "cease and desist" or burying the data, the company recognized the historical, non-commercial value of the documents. In a rare act of corporate stewardship, Sky permitted the release of these files for educational and historical purposes with only minimal, administrative redactions. This has allowed the data to be hosted in a public, searchable format—a Google spreadsheet cataloging every document, drawing, and note.

For the archival community, this sets a positive precedent. It demonstrates that when digital artifacts are treated with respect, corporations may be willing to allow the history of their acquired assets to survive in the public domain.

Implications for the Hobbyist and Engineering Communities

The implications of this release are profound. Firstly, the "reverse engineering" community, which has spent decades peering at micro-photographs of silicon dies, can now cross-reference their findings with the original design specifications. This will allow for 100% accurate software emulators and FPGA (Field Programmable Gate Array) implementations of Sinclair hardware.

Secondly, this provides a masterclass in hardware constraints. For modern engineers, looking at how Ferranti squeezed complex video timing and memory management onto a tiny chip provides a lesson in optimization that is often lost in an era of multi-gigahertz processors and abundant RAM.

Finally, the release serves as a tribute to the engineers of Ferranti and Sinclair. The ULA was, at the time, a high-stakes bet on manufacturing efficiency. Seeing the handwritten notes and the iterative drawings reminds us that these machines were not just products—they were the result of intense, collaborative human struggle against the physical limitations of the time.

Conclusion: A Living History

The Ferranti Files are more than just dusty blueprints; they are the blueprints of a culture. For the millions who learned to code on a Spectrum, these documents provide the "why" behind the "how." They explain why certain graphical glitches occurred, why specific peripherals were so difficult to interface, and how the Sinclair machines managed to punch so far above their weight class.

As the community begins to parse through this data, we can expect a wave of new discoveries regarding the inner workings of 8-bit computing. The mystery of the ULA has been solved, but the story of how it changed the world is only just beginning to be fully understood. Through the dedication of historians and the cooperation of current stakeholders, a vital piece of the digital revolution has been saved from the dustbin of history, ensuring that the legacy of Sinclair—and the ingenuity of Ferranti—will continue to inspire engineers for decades to come.
