The FiberMotor: A Revolutionary Leap Towards Flexible, Integrated Robotics

Lausanne, Switzerland – In a development that blurs the lines between engineering and textiles, researchers at the École Polytechnique Fédérale de Lausanne (EPFL) have unveiled a groundbreaking linear actuator that promises to revolutionize the field of robotics, particularly in wearable applications. Dubbed the "FiberMotor," this remarkably thin and flexible device, measuring a mere one to three millimeters in diameter, eschews traditional rotating shafts for a novel approach: two telescoping fibers that slide against each other, generating linear motion. This innovative design opens up a world of possibilities for soft robotics, exosuits, and integrated wearable technology, though significant developmental hurdles remain before widespread adoption.

The Genesis of a Flexible Force: Unveiling the FiberMotor

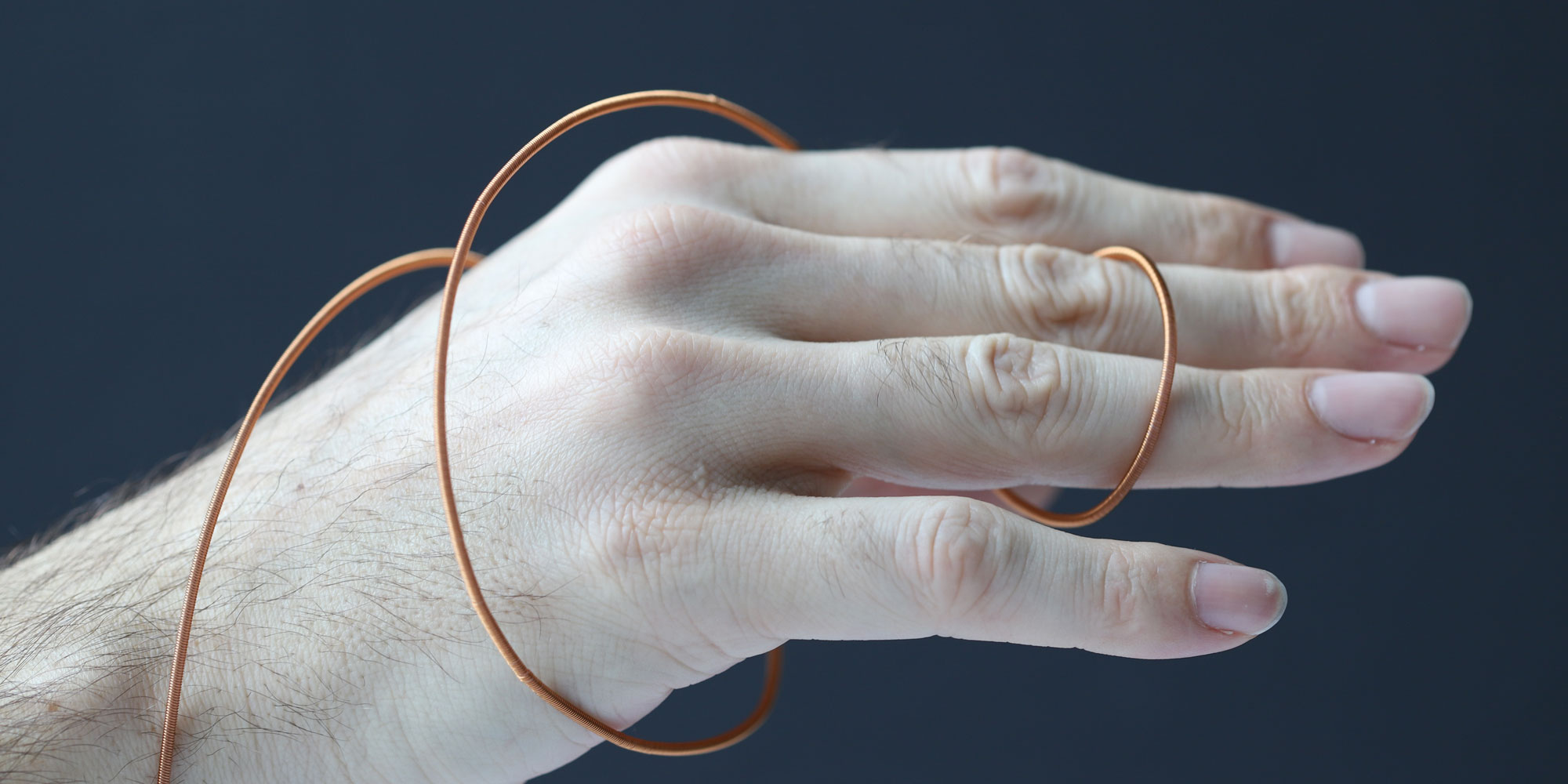

The FiberMotor, at first glance, resembles a piece of high-tech cable rather than a conventional motor. Its unassuming appearance belies its sophisticated internal mechanism. Unlike traditional motors that rely on the rotation of a shaft, the FiberMotor operates by precisely moving two hollow fibers, nested like the tubes of a telescope. Each fiber is embedded with wafer-thin, insulated electrodes. By sequentially energizing these electrodes, electrostatic forces are harnessed, drawing the fibers into a more favorable configuration and causing them to slide against each other. Repeated switching of these electrodes generates a step-by-step linear movement, allowing the motor to push, pull, and hold loads.

This fundamental departure from conventional motor design sets the FiberMotor apart from many existing "artificial muscles." While many artificial muscle technologies rely on material expansion, contraction, or bending, their range of motion is inherently limited by the material’s physical properties. The FiberMotor, in contrast, leverages the principle of sliding components, theoretically limiting its effective range of motion only by the length of the fibers themselves.

Pioneering Performance: Early Results and Capabilities

Initial research conducted by the EPFL team, led by Sylvain Schaller and Herbert Shea, has yielded impressive preliminary results. In no-load conditions, various iterations of the FiberMotor have achieved impressive speeds exceeding 85 millimeters per second. Furthermore, a single motor demonstrated a holding force of over 750 millinewtons, translating to a specific force of more than 450 Newtons per kilogram.

However, these figures must be contextualized. The high-speed measurements were conducted without any external load. Under load, the FiberMotors have operated at significantly lower actuation frequencies. The researchers are actively undertaking further investigations to precisely delineate the complex interplay between force, speed, electrical power consumption, and efficiency across a spectrum of load conditions.

Scaling Up: The Power of Parallelism

To amplify the force output, the EPFL team has explored the concept of deploying multiple FiberMotors in parallel. In a compelling demonstration, a bundle of four FiberMotors was successfully employed to lift and lower a 46-gram chocolate bar. It is crucial to note that the weight of the chocolate bar in this instance did not represent the ultimate load-bearing capacity of the four-motor array but rather served as a quantifiable benchmark for the demonstration. In other experiments, FiberMotors have been used to actuate a tendon-driven robotic finger, showcasing their potential for more intricate robotic movements.

The ability to bundle and distribute these thin actuators holds immense promise for wearable robotics. Instead of housing bulky, rigid motors in a single location, the FiberMotor concept allows for the dispersal of numerous thin actuators throughout a garment. This distributed actuation approach could lead to more unobtrusive, adaptable, and comfortable robotic assistance.

A Glimpse into the Future: Applications in Wearable Robotics

The EPFL researchers have already begun to integrate the FiberMotor into wearable prototypes. A demonstration featuring a FiberMotor integrated into a knee brace showcased its ability to conform to the body’s anatomy. While this prototype did not provide complete gait support, it effectively illustrated the potential for these flexible actuators to adapt to body contours and be seamlessly incorporated into clothing.

This pursuit of textile-integrated actuation is not unique to EPFL. Researchers in South Korea, for instance, have developed woven artificial muscles for wearable robots that utilize shape-memory alloys for actuation. The FiberMotor, however, distinguishes itself by relying on electrostatic forces and a sliding mechanism, offering a distinct technological pathway.

The "Backdrivable" Advantage: Safety and Adaptability

A critical characteristic of the FiberMotor, particularly for body-worn applications, is its inherent "backdrivability." This means that if an external force exceeding a certain threshold is applied against the direction of the motor’s intended movement, the fibers can slide past each other. Unlike rigid gear systems that would resist such external forces, the FiberMotor allows for a degree of compliance. Once the external load is reduced, the electrostatic coupling between the electrodes can re-engage, allowing the motor to resume its operation.

This backdrivable nature is fundamentally important for exosuits and other assistive systems. An ideal robotic actuator should not only support and enhance human movement but also avoid hindering the user when they deviate from the intended motion. The FiberMotor’s ability to yield to external forces offers a promising step towards more intuitive and safer human-robot interaction.

Navigating the Challenges: High Voltage and Control Systems

Despite its promising attributes, the FiberMotor faces significant developmental challenges before it can be widely deployed in everyday applications, particularly exosuits. One of the most prominent hurdles is the requirement for high electrical voltages. In many of their experiments, the EPFL researchers operated the FiberMotor at voltages as high as 3 kilovolts. While electrostatic actuators inherently consume low currents, the high voltage presents considerable challenges in terms of insulation, electronics, and overall safety, especially in close proximity to the human body.

Furthermore, the current prototypes are tethered to mains-powered high-voltage power supplies. The development of a fully portable and self-contained actuation system remains a crucial objective. The control systems for the FiberMotor are also in their nascent stages. Current implementations lack feedback mechanisms to accurately report the motor’s actual position. This can lead to the motor missing steps under significant load, potentially compromising the precision of its movements. Future iterations will require sophisticated control loops incorporating position sensors to detect and rectify such deviations.

Lubrication and Longevity: The Unseen Hurdles

An often-overlooked but critical aspect of the FiberMotor’s design lies in the thin film of silicone oil situated between the two sliding fibers. This oil serves a dual purpose: reducing friction and preventing electrical breakdowns. While surface tension largely confines the oil within the narrow gap between the fibers, it requires replenishment after several hours of operation. This need for regular oil top-ups presents a significant impracticality for washable garments or permanently wearable clothing.

The EPFL team acknowledges this limitation and is actively working on solutions. These include enhancing the sealing mechanisms to retain the lubricant more effectively or redesigning the motor’s materials and structure to achieve sustained, oil-free operation.

Durability and the Path Forward: Towards a Practical Solution

Initial durability tests have demonstrated that the FiberMotor concept is not limited to a few cycles of operation. Typical test specimens have successfully withstood well over 1,000 cycles, and some individual motors have operated continuously for 24 hours. The most common failure mode identified by the researchers is electrical breakdown within the insulation. Consequently, ongoing research is focused on developing thinner electrodes, improved insulating materials, and ultimately, extending the lifespan of the motor.

While the FiberMotor is not yet a finished product ready for integration into commercial wearable robots, it represents a compelling alternative to many existing artificial muscle technologies. Its unique approach, utilizing the controlled sliding of flexible fibers rather than significant material deformation, offers a novel avenue for actuation.

The critical question now is whether this principle can be further developed into a durable and fully portable system. Potential applications envisioned by the researchers span a wide range, including soft exosuits, advanced prosthetics, and haptic clothing for virtual reality applications. The broader field of textile electronics is also demonstrating its capacity for motion sensing, as evidenced by another EPFL development in electronic fibers made from liquid metal that can directly measure movement within fabrics.

In a significant stride towards commercialization, the first author, Sylvain Schaller, has founded a startup named Elecsyor with the explicit goal of advancing the FiberMotor technology. This entrepreneurial venture underscores the perceived potential of this innovative actuator and its promise to reshape the landscape of flexible and integrated robotics.
