The Future of Energy: Stuttgart Researchers Unveil 3D-Printed “Fuel-Agnostic” Nozzle for Gas Turbines

As Germany transitions toward a climate-neutral energy grid, a persistent technological shadow looms over the transition: the "Dunkelflaute"—periods where wind and solar power generation fail simultaneously. To maintain grid stability, the federal government is moving to secure 9 gigawatts of long-term backup capacity through 2026. While natural gas power plants are the current stopgap, they face a mandatory mandate: they must be convertible to pure hydrogen and achieve full carbon neutrality by 2045.

However, the energy landscape of 2045 remains a mystery. Will it be hydrogen, methanol, synthetic e-fuels, or a blend? For engineers, this uncertainty creates a massive design bottleneck. Traditional gas turbine injection nozzles are precision-engineered to favor specific fuel properties, making them highly sensitive to changes in viscosity, volatility, and combustion temperature.

A team of researchers at the University of Stuttgart, led by Fabian Hampp at the Institute of Combustion Technology for Aerospace, has proposed a radical solution: a 3D-printed injection nozzle capable of processing almost any fuel. This breakthrough promises to decouple turbine infrastructure from the volatile global fuel market.

The Technical Challenge: Why One Fuel Does Not Fit All

To understand the significance of the Stuttgart innovation, one must grasp the physics of combustion. Turbines rely on the precise atomization of fuel. When dealing with carbon-based fuels—be it natural gas, kerosene, or synthetic e-fuels—the formation of soot and nitrogen oxides ($NO_x$) is heavily dependent on the quality of the fuel-air mixture.

"Nitrogen oxides form primarily when the fuel and air are not mixed sufficiently," explains Fabian Hampp. Traditional nozzles are designed to create a fine mist and a homogenous mixture, but these geometries are optimized for a specific fuel’s physical properties. A liquid fuel behaves fundamentally differently than a gaseous one in a combustion chamber.

Currently, operators must commit to a specific fuel source years in advance, locking themselves into long-term infrastructure investments. If the chosen fuel—for instance, green hydrogen—becomes too expensive or scarce, the turbine’s efficiency drops, or the emissions profile spikes, potentially violating future climate regulations.

A Lesson from the Skies: The Airblast Principle

The Stuttgarter team turned to the aviation industry for inspiration, utilizing the "airblast" atomization principle common in high-performance jet engines.

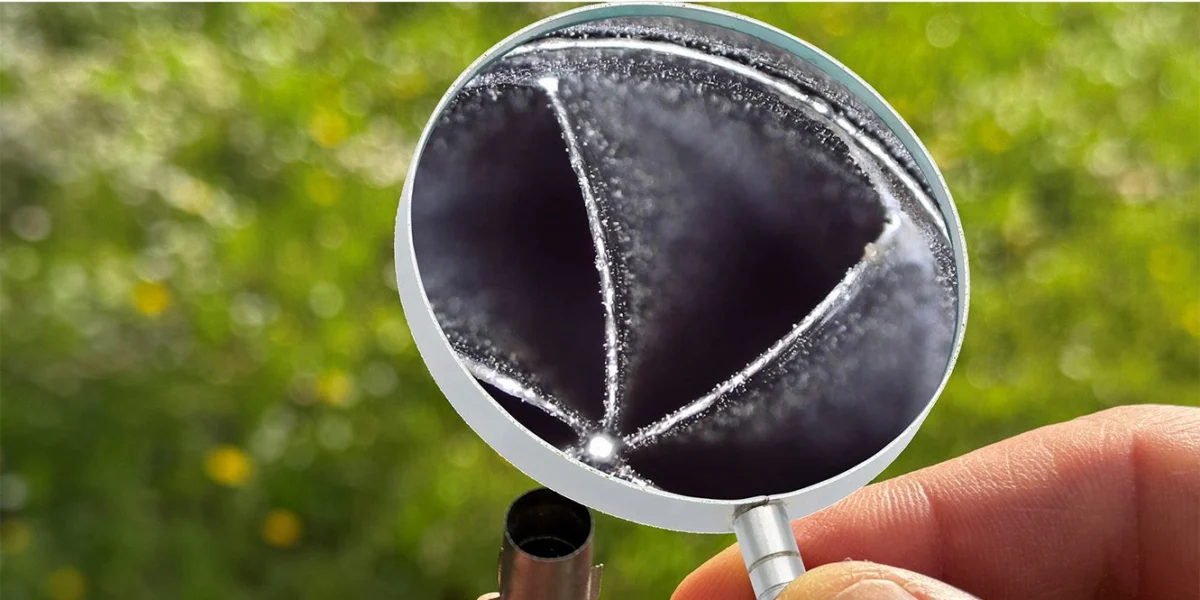

In this system, liquid fuel is channeled through micro-slits—engineered to a mere 0.05 mm in width—where it is stretched into ultra-thin films. A high-velocity airflow then tears these films apart, creating droplets smaller than 0.025 mm. These microscopic droplets evaporate rapidly and mix uniformly with the air, ensuring a clean, low-emission burn. For gaseous fuels like hydrogen, the process is even simpler, as the gas bypasses the atomization stage and is injected directly into the stream.

The breakthrough here is not the physics, but the manufacturing method. Previous attempts to utilize this principle in stationary power plants were limited by the mechanical constraints of traditional machining. The University of Stuttgart researchers have successfully miniaturized this system using additive manufacturing (3D printing), allowing the nozzle to be integrated directly into the burner housing of compact gas turbines.

Overcoming the "Roughness" Barrier in 3D Printing

For years, the additive manufacturing of injection nozzles was considered an engineering impossibility. While 3D printing is common in turbine production—used to create complex, hollow combustion chambers—it has historically been unsuitable for the high-precision requirements of fuel injection.

"The printed surfaces are never perfectly smooth," notes Hans-Christian Möhring, head of the Institute for Machine Tools at the University of Stuttgart. "That creates significant issues when you are trying to inject a defined quantity of fuel through tiny openings as a fine mist."

The team’s innovation lies in embracing these inherent imperfections. Instead of attempting to print perfect, circular bores, the engineers designed the fuel channels as narrow slits. They discovered that the flow rate could be controlled by leveraging the microscopic, stochastic pores that occur naturally during the laser powder bed fusion process. By meticulously optimizing the laser power and scanning speed during the printing process, they achieved the desired droplet distribution despite the rough surface textures.

This approach essentially turns the "weakness" of 3D printing into a manufacturing feature, reducing costs by eliminating the need for separate precision-machining of fuel injectors.

Implications for the Energy Transition

The potential impact of this technology on the German "Energiewende" (Energy Transition) is profound.

1. Future-Proofing Assets

For power plant operators, this technology acts as an insurance policy. A turbine equipped with an "agnostic" nozzle can burn whatever is available on the market, whether it is natural gas today, a hydrogen-blend tomorrow, or synthetic e-fuels in the distant future. This eliminates the risk of "stranded assets"—power plants that become obsolete because they cannot adapt to changing fuel supplies.

2. Retrofitting Existing Infrastructure

Perhaps most importantly, the Stuttgart team suggests that this technology could be applied to older, existing turbines. If a significant portion of the current fleet can be retrofitted with these 3D-printed components, it would drastically lower the cost of decarbonizing the power sector, as building entirely new hydrogen-ready power plants is capital-intensive and time-consuming.

3. Decentralized Energy Systems

While the current focus is on industrial-scale turbines, the technology is highly scalable. The team identified decentralized energy systems, shipping, and even the aerospace sector as potential beneficiaries. Smaller, modular energy systems could benefit significantly from fuel-flexible burners that allow for local, sustainable fuel usage.

Chronology and Future Development

• Initial Research: The team began exploring the integration of aerospace airblast technology into stationary turbines to solve the fuel-mixing dilemma.
• The AMFlexInj Project: A formal project was established in collaboration with the German Aerospace Center (DLR) to move from theoretical design to a functional prototype.
• Laboratory Success: The university reported in September 2026 that the nozzle successfully demonstrated a wide range of fuel processing in controlled laboratory environments.
• The Road Ahead: The project is currently in the prototype stage. The next phase involves rigorous testing under real-world pressure and temperature conditions to confirm the durability of the 3D-printed components.

Skepticism and Reality Checks

Despite the excitement, the academic team remains grounded. They have yet to publish specific data on $NO_x$ emission levels or disclose the exact fuel blends tested in the laboratory. Furthermore, the project lacks an industrial partner for mass production.

Scaling the production of high-precision, 3D-printed parts requires significant investment in quality assurance. Because the internal geometry relies on "random" pores, certifying these parts for industrial safety standards—where failure could lead to catastrophic turbine damage—will require a new framework for testing and validation.

Conclusion

The University of Stuttgart’s development represents a shift in how we approach the energy crisis. Instead of waiting for a single, perfect "green" fuel to become dominant, engineers are creating technology that accepts the ambiguity of the future. By printing the fuel injection system, they are not just creating a part; they are creating a platform that allows the power grid to remain resilient, regardless of which fuel the market dictates.

Whether this laboratory success can transition to a robust, long-term industrial application remains to be seen. However, as Germany and the rest of the world race toward 2045, technologies that offer "optionality" are becoming the most valuable tools in the engineering arsenal. The ability to switch fuels without switching the machine is not just a clever design trick—it is a cornerstone of a stable, carbon-neutral future.
