The Ghost in the Machine: How One Engineer Is Resurrecting the Golden Age of Analog Television

For the modern collector of vintage electronics, the glow of a Cathode Ray Tube (CRT) is a siren song of nostalgia. Yet, the experience of owning a mid-century television set is often bittersweet; these technological marvels, once the centerpieces of the living room, are now effectively glorified paperweights. With the global transition to digital broadcasting—a process that concluded in the United States in 2009 and has since swept through most of the developed world—the airwaves that once crackled with over-the-air signals have fallen silent.

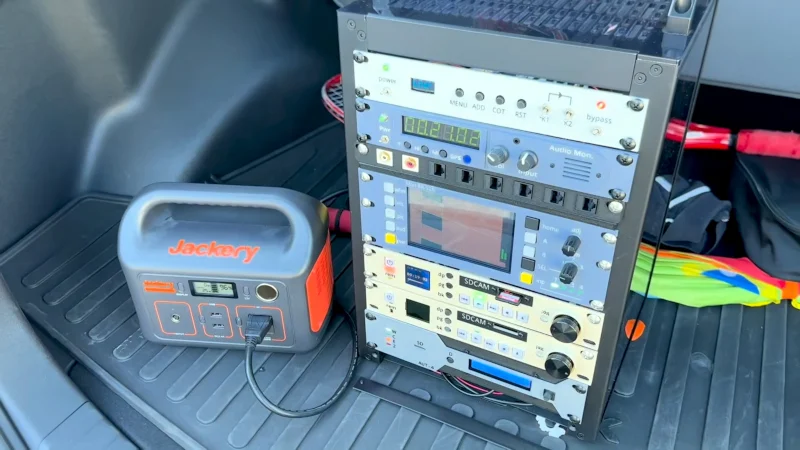

For [BorisDigital], a former TV transmitter control room operator from the 1990s, this silence was not merely a technical hurdle; it was a lost connection to a specific, tactile era of media history. Driven by the desire to use his vintage hardware as it was intended, he has engineered a comprehensive solution: a fully functional, miniature analog television station housed within a 10-inch rack.

Main Facts: A Broadcast Studio in Miniature

The project, which has gained significant traction within the retro-computing and engineering communities, is far more than a simple signal converter. It is a faithful recreation of a professional broadcast environment, condensed into a compact, transportable chassis.

At the heart of the setup is an inexpensive, off-the-shelf transmitter board sourced from China, capable of modulating audio and video signals onto standard analog frequencies. However, the true brilliance lies in the supporting hardware. The rack contains:

• The Control Center: A series of Raspberry Pi 5 units equipped with USB video digitizers, providing real-time signal monitoring.
• Precision Instrumentation: A dedicated vectorscope and waveform monitor, essential tools for broadcast engineers to ensure color accuracy and signal integrity.
• Automation: A dedicated Raspberry Pi acting as an automatic scheduler, mimicking the "playout" systems that define commercial broadcasting.
• Monitoring and Timing: A Pi Pico-powered clock and audio monitor, providing the necessary synchronization for a professional broadcast feel.

What elevates this project from a hobbyist tinkering to a professional-grade achievement is the physical enclosure. The rack front panels are custom-designed, 3D-printed components that utilize dual-filament techniques to create crisp, permanent lettering. The result is a system that looks and operates with the gravitas of a multi-million-dollar broadcast facility from the analog era.

Chronology: The Twilight of the Analog Signal

To understand the necessity of this project, one must look at the timeline of the digital transition.

The Analog Heyday (1940s–1990s)

Analog television was a triumph of physics. By manipulating electrons and scanning lines, engineers achieved a "miracle" of transmission that required no complex compression or packet delivery. It was robust, simple, and required only an antenna to function.

The Digital Shift (2006–2010)

The transition to ATSC (Advanced Television Systems Committee) standards in the United States and DVB-T (Digital Video Broadcasting — Terrestrial) in Europe marked the end of the analog era. Governments worldwide auctioned off the "analog dividend"—the valuable radio spectrum occupied by television—to telecommunications companies for mobile data, effectively killing the over-the-air analog signal.

The Last Gasp (2010–2021)

For over a decade, a few low-power analog stations continued to operate in niche markets. By 2021, however, the FCC in the United States finalized the total shutdown of analog TV, rendering every vintage CRT television in the country incapable of displaying live content without a digital-to-analog converter box.

The DIY Revival (2024)

BorisDigital’s intervention represents the current "Third Wave" of retro-technology. While the first wave involved simple preservation, and the second involved digital emulation, the current wave focuses on the recreation of the infrastructure required to make vintage hardware behave as it did in its prime.

Supporting Data: Engineering a Signal

The complexity of the project is underscored by the technical requirements of NTSC/PAL signaling. In a professional environment, a signal is not simply "sent"; it is monitored.

The Role of the Vectorscope

A vectorscope is a specialized oscilloscope used in television production to visualize the chrominance (color) of a video signal. By creating a visual representation of color intensity and phase, it allows the operator to calibrate the picture to industry standards. BorisDigital’s integration of a Pi-based vectorscope demonstrates an understanding of broadcast engineering that goes well beyond the average "media server" approach.

The Pi-Powered Playout

The use of the Raspberry Pi ecosystem is a masterclass in modern hardware integration. By utilizing the Pi 5’s significant processing overhead, the system can perform real-time video encoding and scheduling that would have required several racks of equipment in the 1990s. The scheduler software, in particular, allows the station to run autonomously, looping programming, commercials, and station IDs, perfectly replicating the experience of watching broadcast TV in the late 20th century.

Official Responses and Industry Perspectives

While the project is a personal undertaking, it has been met with significant praise from the engineering community.

"The beauty of this project is in its structural honesty," says Dr. Aris Thorne, a historian of broadcast technology. "We often think of television as a black box. By reconstructing the rack, the waveforms, and the clock, BorisDigital is demystifying the labor that went into every hour of television we consumed in the 20th century. It’s an archival project disguised as a hobby."

However, there remain regulatory nuances. Operating any transmitter, even a low-power one, falls under the jurisdiction of telecommunications regulators like the FCC or Ofcom. While a small-scale, short-range transmitter inside a home is generally considered a "Part 15" device (in the U.S.), the legal line between a "hobbyist toy" and an "unlicensed broadcast station" is thin. Experts emphasize that such projects must be contained to Faraday-shielded environments or kept at extremely low power levels to ensure they do not cause interference with emergency services or cellular networks.

Implications: Why We Still Need Analog

The implications of this project extend far beyond the nostalgia of the screen.

1. The Preservation of Mechanical Literacy

Analog television is a "wonderfully intricate technology that just worked," as the creator notes. By maintaining systems that rely on physical signals rather than internet-delivered data streams, we preserve a form of mechanical literacy. In an age of cloud dependency, the ability to generate a signal locally—independent of the internet or third-party servers—is a powerful statement on digital sovereignty.

2. The Future of "Hardware-as-a-Service"

This project offers a blueprint for other technical enthusiasts. If a single individual can replicate an entire transmitter control room using Raspberry Pis and 3D printing, the barrier to entry for managing "legacy" technologies has effectively collapsed. This is a critical development for museums, theaters, and film productions that require period-accurate technology that is actually functional.

3. The Psychology of the "Scheduled" Experience

The most profound implication, perhaps, is the return to scheduled programming. In the era of on-demand streaming, the "curated flow" of television has been lost. By using an automatic scheduler, BorisDigital is not just watching a show; he is experiencing the rhythm of broadcast media. This shift from "content consumption" to "broadcast experience" highlights a growing fatigue with the algorithmic recommendation engines of modern platforms.

Conclusion

The portable TV station built by [BorisDigital] serves as a bridge between two worlds: the rapid, ethereal nature of modern digital broadcasting and the tangible, robust engineering of the analog age. By meticulously recreating the tools of a trade that has largely vanished, he has done more than just save a few old television sets from the landfill. He has successfully captured the spirit of an era, proving that with enough ingenuity, the ghosts of our technological past can be summoned back to the screen—flicker, scan lines, and all.

As we move further into a fully digitized future, the value of such projects will only increase. They remind us that technology is not just about the content we consume, but the infrastructure we build to deliver it. And sometimes, the best way to move forward is to look back, rebuild the rack, and tune in to the signal one more time.
