The Hidden Complexity of Power: A Deep Dive into iPhone Battery Manufacturing

In the sleek, minimalist world of modern consumer electronics, the battery is often relegated to the background—a necessary utility that we take for granted until it inevitably degrades or fails. However, behind the simple act of plugging in a charging cable lies a manufacturing marvel of staggering complexity. Recently, the repair experts at iFixit provided a rare, behind-the-scenes look at the life cycle of an iPhone battery, pulling back the curtain on a production process that is as precise as it is industrialized.

By gaining unprecedented access to a high-volume manufacturing facility in China, iFixit has documented the metamorphosis of raw chemical components into the sophisticated energy storage modules that power our digital lives. The resulting footage serves as a stark reminder: the "unsuspicious" battery tucked away inside your smartphone is the product of world-class engineering, high-stakes safety protocols, and massive-scale automation.

The Scale of Production: 13 Million Units a Month

To understand the magnitude of Apple’s supply chain, one must look at the numbers. According to iFixit, the facility showcased is capable of churning out roughly 13 million individual battery cells per month. This figure is not merely a testament to the factory’s efficiency; it represents a relentless global demand for lithium-polymer energy density.

The production of these cells is a feat of micro-engineering. Modern lithium-polymer batteries are not simple blocks of chemicals; they are composed of a multitude of ultra-thin, conductive layers. These layers must be stacked, aligned, and sealed with near-perfect precision. In this environment, the margin for error is effectively zero. Even the most microscopic deviation in layer alignment or chemical purity can lead to catastrophic failure, diminished capacity, or, in the worst-case scenario, thermal runaway.

The Anatomy of the Process: A Chronology of Construction

The journey of an iPhone battery begins long before it is inserted into an aluminum chassis. The fabrication process is a multi-stage marathon that balances chemical volatility with structural integrity.

Stage 1: The Chemical Foundation

The process starts with the creation of the anode and cathode materials. These are coated onto metal foils—typically copper for the anode and aluminum for the cathode. These foils are then rolled into massive coils. The precision required here is immense: the thickness of the coating must be consistent across the entire length of the foil to ensure uniform ion flow.

Stage 2: The Stacking and Winding

Once the electrodes are prepared, they are combined with a polymer separator, which prevents the anode and cathode from touching—a short circuit here would be fatal to the battery’s safety. These components are then wound or stacked into the characteristic flat, rectangular shape familiar to iPhone users.

Stage 3: The Electrolyte Infusion

Once the core is assembled, it is sealed within a protective pouch. It is at this stage that the liquid electrolyte is introduced. This chemical medium acts as the "highway" for lithium ions to move between the electrodes. The cell is then vacuum-sealed to ensure no moisture—which can cause internal corrosion or gas buildup—enters the environment.

Stage 4: Formation and Aging

The battery is not ready for use immediately after assembly. It must undergo "formation," a process involving controlled charging and discharging cycles that "trains" the battery and establishes the stable chemical pathways necessary for long-term health. This is followed by an aging period, where the cells are monitored to see if any exhibit self-discharge, which would indicate a defective separator or contamination.

The Brain of the Battery: The Battery Management System (BMS)

As iFixit highlights, the lithium-polymer cell itself is only half the story. Without a "brain," the cell is a dangerous, unpredictable component. This is where the Battery Management System (BMS) enters the equation.

The BMS is a small, sophisticated circuit board attached to the battery cell. Its primary role is to serve as the gatekeeper for every milliampere of electricity that enters or leaves the battery. The BMS monitors:

• Voltage: Ensuring the cell never drops below a critical threshold or exceeds a maximum capacity.
• Temperature: Preventing the battery from charging or discharging when internal temperatures hit dangerous levels.
• Current: Limiting the flow of electricity during rapid charging cycles to prevent overheating.

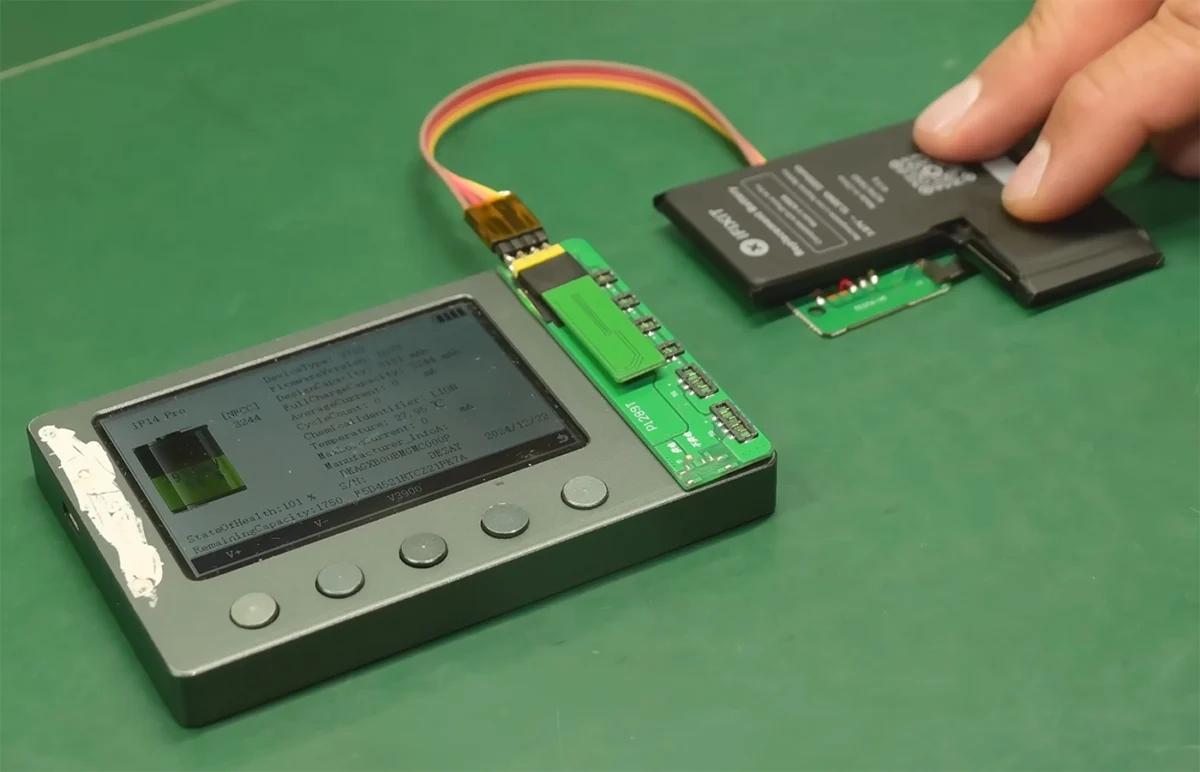

The programming of this BMS is a highly automated step. Specialized robotic systems flash the necessary firmware onto the microcontrollers. This firmware is essentially the "personality" of the battery, defining how it communicates with the iPhone’s operating system (iOS) to report health data, cycle counts, and capacity degradation. Only after the BMS is successfully integrated and verified is the assembly considered a finished, safe component.

Rigorous Quality Assurance: The Final Frontier

Before a single battery leaves the factory floor, it is subjected to a series of automated, high-stress tests. These are not merely sample-based spot checks; they are exhaustive evaluations of every single unit.

Automated systems measure the internal resistance of the battery, a key indicator of its overall health and ability to deliver peak power to the iPhone’s processor during intensive tasks like gaming or 4K video recording. Furthermore, the battery is tested for its ability to cut off power instantly should a short-circuit condition be simulated. This rigorous testing regimen ensures that the batteries that make it into the retail supply chain meet the stringent safety standards set by both regulatory bodies and Apple’s internal engineering teams.

Implications for the Consumer and the Industry

The transparency provided by iFixit’s investigation carries significant weight in the current landscape of the "Right to Repair" movement.

Sustainability and Durability

By documenting the extreme effort required to manufacture a single battery, iFixit indirectly highlights why the longevity of these components is so critical. A battery that is designed to last through 800 or 1,000 cycles is far more sustainable than one that fails after 300. When consumers understand the resource-intensive nature of battery production—from the mining of lithium and cobalt to the high-precision cleanroom manufacturing—the value of maintenance and battery health management becomes clearer.

The Myth of the "Simple Replacement"

For the end-user, this video serves as a sobering reminder of why DIY battery replacements are often more complex than they appear. The battery is not just a chemical cell; it is an integrated electronic system. When a user attempts a self-repair, they are not just handling a physical object, but a piece of calibrated hardware that relies on tight integration with the phone’s logic board.

Future Trends

As we move toward a future of increasingly thinner devices, the pressure on battery manufacturers to increase energy density without sacrificing safety will only grow. The industry is currently flirting with solid-state electrolytes and silicon-anode technologies, which will likely make the manufacturing process even more complex. The insights shared by iFixit provide a baseline for what to expect: as we demand more power in smaller packages, the sophistication of the manufacturing process must scale accordingly.

Conclusion

The iFixit documentation is more than just a "how-to" for the curious; it is a vital piece of educational content that demystifies one of the most important components in modern technology. The next time you glance at your iPhone’s battery health percentage in the Settings app, remember the 13 million cells created each month in massive Chinese factories, the microscopic precision of the layer-stacking process, and the vigilant, software-driven protection of the Battery Management System.

The iPhone battery is a triumph of modern industrialization—a fragile, powerful, and meticulously crafted component that serves as the heartbeat of our digital existence. By understanding the complexity behind it, we move one step closer to respecting the hardware we use every day, potentially leading to better care and a longer life for the devices that keep us connected to the world.
