The Legacy of the Rainbow: Why Your PC Ports Are Still Color-Coded After 25 Years

Even in an era dominated by Bluetooth headphones, USB-C peripherals, and cloud-based audio streaming, the back panel of a desktop computer remains a bastion of tradition. If you glance at the motherboard of a modern gaming rig or a workstation, you will almost certainly find the same trio of colors that have defined PC aesthetics since the turn of the millennium: lime green, sky blue, and a shade of pink often mistaken for red.

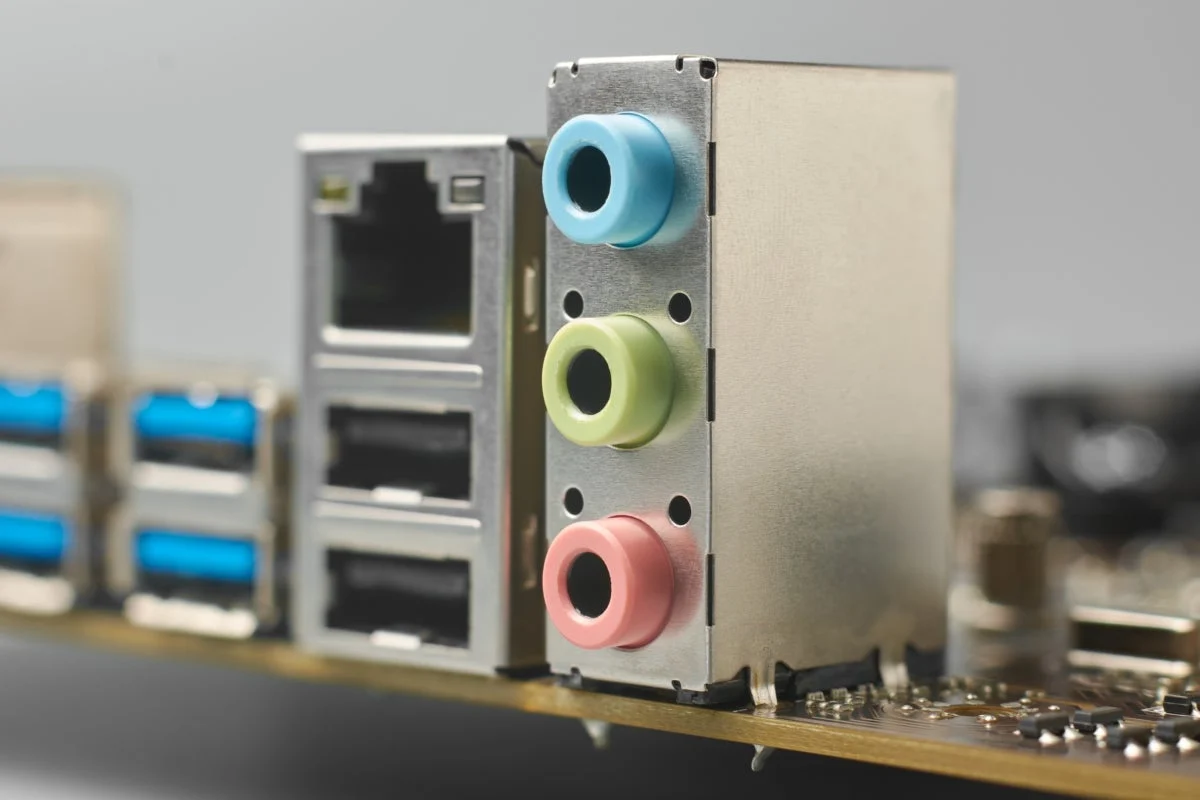

These color-coded audio jacks—green for output, blue for line-in, and pink for the microphone—are more than just a convenient visual guide. They represent a rare instance of industrial standardization that has survived for over a quarter-century, persisting long after the technical necessity for such labels has evaporated. But how did these specific hues become the global standard, and why do we continue to use them in an age where our hardware is smart enough to know what we’ve plugged in?

The Standardization Crisis: Life Before 1999

To understand the ubiquity of these colors, one must look back at the chaotic state of the personal computer market in the mid-1990s. As the PC market exploded, hundreds of manufacturers began producing motherboards, sound cards, and peripherals. Without a central governing body for hardware design, every manufacturer adopted their own idiosyncratic labeling system.

One motherboard manufacturer might use black for the microphone jack, while another might use yellow, and a third might leave it unlabeled entirely. For the average consumer or IT professional in 1995, setting up a PC was a frustrating exercise in trial and error. You couldn’t simply glance at the back of a machine and know where the headset belonged. This lack of uniformity was not just a minor inconvenience; it was a barrier to mass adoption for a demographic that was increasingly becoming less "technical."

Chronology of the PC System Design Guide

The solution to this hardware anarchy arrived in the form of the PC System Design Guide, a collaborative effort between industry giants Microsoft and Intel.

• 1994: The foundation is laid with the Hardware Design Guide for Microsoft Windows 95. This document set the initial requirements for hardware compatibility, establishing the baseline for what a machine needed to be "Windows-ready."
• 1997: The first edition of the PC System Design Guide is published. This was the first major step toward defining the physical interface of the PC. It standardized the colors for the mouse port (a distinctive "mini-DIN" connector in dark green) and the keyboard port (purple).
• 1999: The third edition, commonly referred to as the "PC-99" standard, was released. This version was the watershed moment for audio connectivity. It mandated specific colors for audio jacks to ensure that, regardless of the manufacturer, a user would have a consistent experience.
• 2001: The final edition of the PC System Design Guide was released, cementing the legacy of these color codes. By this point, the industry had widely adopted the "PC-99" color palette, and the standard became self-perpetuating.

The colors themselves were not selected based on any deep acoustic theory. Instead, they were chosen from the Pantone color system to be distinct enough to be recognized by individuals with varying degrees of color vision, and to contrast sharply against the standard beige or black chassis of the time.

Decoding the Color Palette

The PC System Design Guide established a comprehensive roadmap for every port on the back of a computer, but the audio cluster remains the most recognizable legacy of the project:

1. Lime Green (Audio Out): Designated for the primary stereo output, intended for headphones or powered speakers.
2. Sky Blue (Line In): Intended for external audio sources like tape decks, CD players, or synthesizers.
3. Pink (Microphone): Designed specifically for low-voltage, mono-input microphones.

The choice of pink for the microphone is perhaps the most debated of the three. While many users colloquially refer to it as "red," the official Pantone designation was a vibrant pink. This was chosen specifically to differentiate it from the "red" sometimes used on older RCA-style stereo cables, preventing users from accidentally plugging a high-output device into a low-sensitivity microphone preamp, which could lead to distortion or hardware damage.

Supporting Data: The Impact of Compatibility

The move to standardize was not merely about user experience; it was about the bottom line. By ensuring that any pair of speakers could work with any motherboard, Microsoft and Intel reduced the number of support calls related to hardware configuration.

According to historical industry reports from the early 2000s, the "PC-99" standard led to a measurable decline in "dead-on-arrival" returns for sound cards and motherboards. When hardware was easier to install, the perceived quality of the PC platform increased. The standard was so successful that it effectively killed off the market for proprietary audio port adapters. It created a "plug-and-play" reality that set the stage for the modern digital era.

The Technical Obsolescence of Color

In 2024, the color-coding is technically redundant. The turning point occurred in 2004 with the introduction of the Intel High Definition (HD) Audio standard. Modern audio codecs are capable of "jack sensing"—a feature that detects the electrical impedance of a device plugged into a jack.

If you plug a microphone into the green "output" jack, the motherboard’s audio controller can detect the specific electrical signature of the microphone and prompt the user: "You have plugged a device into an input. Would you like to use this as a microphone?" Because of this, the physical color of the plastic housing no longer serves a functional, electrical purpose. The software has become intelligent enough to bypass the hardware’s physical limitations.

Implications for Modern Hardware Design

If the colors are no longer necessary, why do they remain? The answer lies in the psychological phenomenon of "Affordance."

In design, an affordance is a visual clue that tells a user how an object should be used. Even if the computer is smart enough to handle a misconfiguration, the green, blue, and pink colors act as a shorthand that communicates "audio" to the user before they even touch the cable. Removing them would likely cause more confusion than it would solve.

Furthermore, the manufacturing ecosystem is built around these molds. Replacing the colored plastic inserts with uniform black or silver would require re-tooling injection molds for millions of units annually. For a legacy feature that does not interfere with modern performance, the cost of change far outweighs the benefits.

Conclusion: A Living History

The persistence of the lime green, sky blue, and pink audio ports is a fascinating study in industrial inertia. It is a reminder that the PC is not just a high-tech tool, but a cultural object with a deep, layered history.

While we have moved toward USB-C, optical audio (S/PDIF), and wireless connectivity, the humble analog jack remains. It stands as a testament to the 1999 PC System Design Guide—a document that successfully tamed the wild west of hardware development and created a universal language for computing. The next time you reach behind your computer to plug in your headphones, take a moment to appreciate the colors. They are a relic of a time when the industry decided that clarity, simplicity, and consistency were the keys to bringing computing into the home. Even as technology moves forward, some traditions are simply too useful—and too iconic—to discard.
