The Physics of Displacement: Why the Water Level Falls When the Steel Ball Sinks

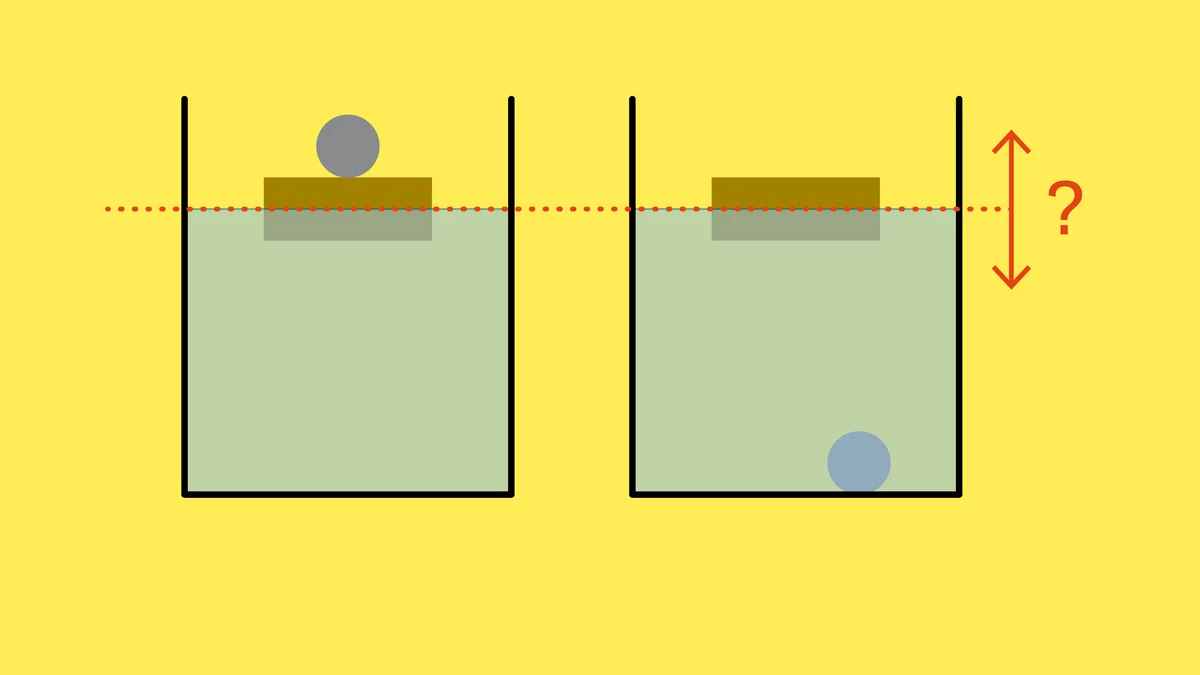

Physics is not merely a collection of abstract formulas confined to dusty textbooks; it is a discipline that governs the mundane interactions of our daily lives. From the buoyancy of a ship on the open ocean to the simple mechanics of a glass of water on a kitchen table, the laws of physics are constantly at play. A classic thought experiment, often used to test one’s intuitive grasp of fluid mechanics, involves a simple setup: a piece of wood floating in a glass of water, with a small steel ball resting atop the wood.

The question posed is deceptively straightforward: If the steel ball were to slip from the wood and sink to the bottom of the glass, what happens to the water level? Does it rise, fall, or remain perfectly stagnant? While the answer—that the water level falls—may seem counterintuitive to those who associate the addition of an object to a fluid with an increase in volume, it provides a perfect masterclass in Archimedes’ Principle and the nature of density.

The Core Phenomenon: Understanding the Setup

To analyze this scenario, we must look at the system in two distinct states: the "floating" state and the "submerged" state.

In the initial state, the wood is floating, and the steel ball is resting on top of it. Because the wood remains buoyant, the combined weight of the wood and the steel ball is being supported by the upward buoyant force of the water. According to Archimedes’ Principle, any object immersed in a fluid is acted upon by an upward force equal to the weight of the fluid displaced by that object. Therefore, in the first scenario, the total weight of the floating assembly (wood plus steel) is exactly equal to the weight of the water displaced by the submerged part of the wood.

The Shift in State

When the steel ball slides off the wood and drops to the bottom of the glass, the equilibrium of the system is fundamentally altered. The wood, now relieved of the weight of the steel, rises slightly in the water, as it no longer needs to displace as much water to remain afloat. The steel ball, meanwhile, now sits at the bottom of the glass. Because steel is significantly denser than water, it occupies a relatively small volume compared to its mass. It no longer displaces a volume of water equal to its weight; instead, it displaces only a volume of water equal to its own physical volume.

Chronology of the Physical Event

The transition from a floating system to a submerged one happens in a rapid sequence of physical adjustments:

1. The Initial Equilibrium: The steel ball sits on the wood. The system is in static equilibrium. The mass of the displaced water is equal to the mass of the wood plus the mass of the steel.
2. The Disturbance: The ball loses its balance and breaks the surface tension, sinking through the water column. During this brief moment, the wood bobbles, adjusting its buoyancy as the downward force (the weight of the ball) is removed from its surface.
3. The Final Equilibrium: The steel ball comes to rest at the bottom of the glass. The wood floats higher, displacing less water. The steel ball is fully submerged, displacing a volume of water equal to its own volume, which is significantly less than the volume of water required to support its weight when it was floating on the wood.

The result is an undeniable drop in the water level. The "lost" displacement—the difference between the water displaced by the ball’s weight (when floating) and the water displaced by the ball’s volume (when sunk)—manifests as a measurable lowering of the liquid surface.

Supporting Data and Theoretical Framework

To understand why this happens, we must turn to the relationship between density and displacement.

The Archimedean Calculation

Let $M_s$ be the mass of the steel ball and $rho_w$ be the density of water.

• When floating: The ball is supported by the wood. The wood displaces water equal to the total mass of the wood and the ball. The volume of water displaced by the ball’s presence is $V_displaced_floating = fracM_srho_w$.
• When submerged: The ball rests on the bottom. It displaces its own volume, $V_submerged = fracM_srho_s$, where $rho_s$ is the density of steel.

Since the density of steel ($rho_s approx 7,850 , textkg/m^3$) is much greater than the density of water ($rho_w approx 1,000 , textkg/m^3$), the volume of water displaced when the ball is floating is significantly larger than the volume of water displaced when the ball is sitting on the bottom. Specifically, the ball displaces roughly 7.85 times less water when submerged than it "forced" the wood to displace when it was floating.

Official Perspectives and Educational Implications

Physics educators and scientists often use this riddle to highlight the difference between "weight-based displacement" and "volume-based displacement." In academic circles, this is considered a "threshold problem"—one that separates those who think about physics in terms of forces and those who rely on visual heuristics that often lead to incorrect conclusions.

Professor Holger Dambeck, author of Das Kreuz mit dem Quadrat, has frequently noted that these types of puzzles serve as an essential bridge between mathematical theory and physical intuition. "People often assume that because the ball enters the water, the water level must rise," Dambeck explains. "They visualize the volume of the ball being added to the water. They fail to consider that the ball was already part of the system’s weight-displacement balance while on the wood."

By focusing on the system as a whole rather than the individual components, students learn to account for the "displacement debt" created when an object transitions from being supported by buoyancy to being supported by a solid surface (the glass floor).

Broader Implications: From Glassware to Global Oceans

While the experiment with a glass of water is a classic classroom demonstration, the principles involved have significant real-world applications, particularly in the study of sea-level rise and climate change.

The Ice Shelf Analogy

A parallel can be drawn between this experiment and the melting of sea ice. When icebergs (which are less dense than water but still carry mass) melt in the ocean, the sea level does not rise in the same way it would if ice resting on land (like glaciers) were to melt. Because the ice is already floating, it is already displacing its own weight in water.

This leads to a critical distinction in environmental science:

1. Floating Ice (Sea Ice): When it melts, it replaces the volume of water it was already displacing, resulting in a negligible change to the global sea level.
2. Land-based Ice (Glaciers/Ice Sheets): When this ice melts, it adds new water to the ocean that was not previously displacing ocean volume, which directly contributes to rising sea levels.

Understanding the "floating vs. submerged" dynamic is therefore not just a fun parlor trick or a math riddle; it is a fundamental pillar for interpreting the data that scientists use to model the impact of climate change on our coastlines.

Conclusion

The sinking steel ball is a potent reminder of the elegance of physical laws. It challenges our cognitive biases—the tendency to assume that "more stuff in the water" equals "higher water"—and replaces them with a precise, logical framework. Whether in a laboratory, a classroom, or the vast expanses of the Earth’s oceans, the interaction between mass, density, and displacement remains one of the most reliable and fascinating aspects of our natural world. Next time you see an object fall into a container of water, remember: the change in the water level is not just a movement of fluid, but a manifestation of a fundamental law that has held true since the days of Archimedes.
