The Physics of Measurement: A Comprehensive Guide to Modern Current Sensing Technologies

Measuring electric current is one of the most fundamental yet complex challenges in electrical engineering. Whether it is managing the power delivery of a high-end graphics processing unit (GPU) or monitoring the massive loads of a utility-scale power grid, the ability to accurately sense current without disrupting the circuit is a cornerstone of modern technological design.

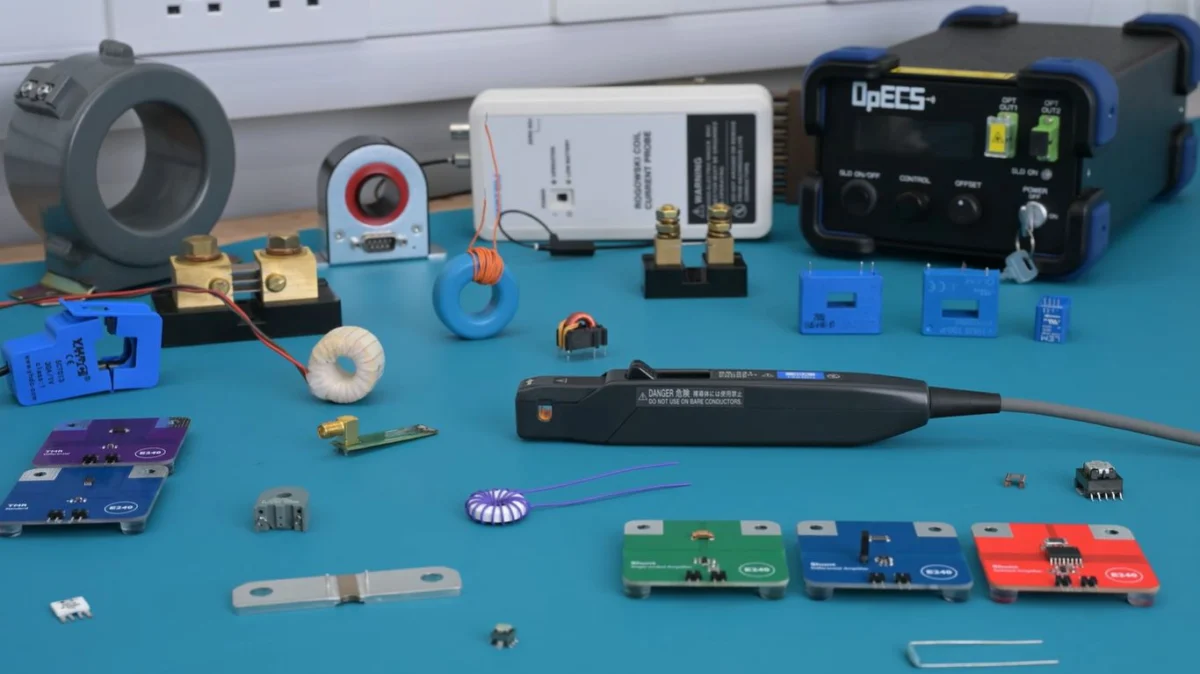

A recent deep-dive presentation by [ElectrArc240] has brought this complex landscape into focus, providing a masterclass on the evolution of current sensing. From the humble, ubiquitous shunt resistor to the cutting-edge precision of fiber-optic interferometry, understanding these tools is essential for any engineer looking to balance cost, accuracy, and non-intrusiveness.

Main Facts: The Spectrum of Current Sensing

At its core, current sensing is about converting an electrical current into a measurable signal—usually a voltage—without introducing significant losses or interference into the primary circuit. The "perfect" sensor would be isolated from the power path, consume zero power, and offer infinite bandwidth. In the real world, engineers must navigate a series of trade-offs.

Current sensing technologies are generally categorized into two primary methodologies: Direct (Contact) Sensing and Indirect (Non-Contact) Sensing.

Direct Sensing: The Shunt Resistor

The most straightforward method remains the shunt resistor. By placing a precision resistor of a known, very low value in series with the load, one can measure the voltage drop across it according to Ohm’s Law ($V=IR$).

• Pros: Low cost, high reliability, and excellent linearity.
• Cons: It introduces a series resistance into the circuit, causing power dissipation (heat), and it lacks electrical isolation between the measurement circuitry and the high-power path.

Indirect Sensing: Electromagnetic Coupling

For high-power or high-voltage applications, contact-based sensing becomes dangerous or impractical. Indirect sensors leverage the magnetic fields generated by current flow. These sensors do not need to be physically "in" the circuit, allowing for galvanic isolation. This is the principle behind clamp meters and sophisticated Hall-effect sensors.

Chronology: The Evolution of Measurement Technology

The history of current sensing is the history of electrical engineering itself. The progression of these technologies can be mapped through several distinct eras:

1. The Galvanometer Era (19th Century): Early measurements relied on the mechanical deflection of a needle within a magnetic field. While groundbreaking, these were bulky, slow, and prone to error.
2. The Resistive Era (Early 20th Century): As low-power electronics emerged, the shunt resistor became the standard. It allowed for the miniaturization of measurement devices and eventually paved the way for analog-to-digital conversion.
3. The Semiconductor Revolution (1970s–1990s): The invention of the Hall-effect sensor transformed the field. By utilizing the Lorentz force to detect magnetic fields in semiconductor materials, engineers could measure high currents without physical contact.
4. The Precision & Exotic Era (2000s–Present): With the rise of green energy and high-frequency power electronics, the demand for extreme precision has led to the development of TMR (Tunneling Magnetoresistance) sensors, fluxgate sensors, and fiber-optic current transformers (FOCTs).

Supporting Data: Comparative Analysis of Sensor Types

To determine the right sensor for an application, engineers typically look at four key metrics: bandwidth, sensitivity, isolation, and cost.

1. Hall-Effect Sensors

Hall-effect sensors work by placing a semiconductor in a magnetic field, which creates a transverse voltage proportional to the current. They are ideal for medium-to-high current applications. However, they are susceptible to temperature drift and external magnetic interference, which can reduce their precision.

2. Fluxgate Sensors

Fluxgate technology utilizes a saturable magnetic core. By driving the core into saturation, the sensor can detect extremely weak magnetic fields. This makes them significantly more sensitive than standard Hall-effect sensors, often used in aerospace and high-end industrial control systems where precision is paramount.

3. TMR (Tunneling Magnetoresistance) Sensors

TMR sensors represent the current state-of-the-art in compact magnetic sensing. They offer higher sensitivity and lower power consumption than Hall-effect sensors. As they become cheaper to manufacture, they are rapidly replacing older technologies in battery management systems (BMS) for electric vehicles.

4. Fiber-Optic Current Sensors (The Faraday Effect)

Perhaps the most exotic method discussed by [ElectrArc240] is the fiber-optic sensor. This system utilizes the Faraday effect: when polarized light travels through a fiber optic cable placed in a magnetic field, the polarization of the light rotates. By using an interferometer, this rotation can be measured with extreme accuracy.

• Use Case: These are exclusively used in high-voltage utility substations where traditional metal-based sensors would be prone to electrical arcing or electromagnetic interference (EMI).

Official Perspectives: The Engineering Trade-offs

Industry experts often emphasize that there is no "best" sensor—only the "best-fit" sensor. In a professional setting, the selection process is governed by the following considerations:

• Thermal Management: Shunt resistors dissipate power as $P=I^2R$. In high-current circuits, a shunt resistor might require massive heatsinks or active cooling, which can be larger than the circuit itself.
• Common-Mode Rejection: In applications like motor drives, the current measurement must survive high-voltage switching transients. Isolated sensors (like Hall or Fluxgate) are essential here to prevent the measurement circuitry from being "fried" by the high-voltage side.
• Bandwidth Requirements: If you are monitoring a high-speed switching power supply (operating in the MHz range), a slow, high-precision sensor is useless. You need a sensor with a wide bandwidth, often favoring shunt resistors or Rogowski coils over integrated magnetic sensors.

Implications for Future Technology

The ongoing shift toward electrification—specifically in electric vehicles (EVs) and renewable energy storage—is driving massive innovation in current sensing.

The Rise of Smart Grids

As we move toward decentralized power grids, the ability to measure current accurately at the household and micro-grid level is becoming critical. Low-cost, non-intrusive sensors are allowing for real-time demand-side management, where appliances can be adjusted based on the current load of the entire neighborhood.

Miniaturization and Integration

We are currently seeing a trend where current sensing is being integrated directly into the silicon of power modules. By embedding TMR or Hall-effect sensors inside the same package as the power MOSFETs or IGBTs, manufacturers are reducing parasitic inductance and improving the response time of protection circuits. This "smart power" trend is critical for the next generation of highly efficient electronics.

Sustainability and Efficiency

Improved current sensing is a silent driver of energy efficiency. By precisely monitoring current in real-time, systems can optimize their switching frequencies and minimize idle losses. A 1% gain in efficiency across the global power grid through better monitoring equates to massive carbon emission reductions.

Conclusion: The Path Forward

The video exploration by [ElectrArc240] serves as a vital reminder that while we often focus on the "intelligence" of our circuits—the microcontrollers and software—the "senses" of those circuits—the current sensors—are what keep the system safe and functional.

For the hobbyist, the shunt resistor will likely remain the go-to solution for its simplicity and affordability. For the professional, the choice of sensor is a sophisticated balancing act that requires a deep understanding of magnetic physics, thermal dynamics, and signal processing. As technologies like TMR and fiber-optic sensing continue to mature and drop in price, we can expect the next decade to bring even more accurate, reliable, and compact sensing solutions that will underpin the green energy revolution.

Whether you are designing a high-efficiency charger or simply troubleshooting a faulty GPU, the principles of current measurement remain the same: understand the load, respect the physics, and choose the sensor that provides the signal integrity your application demands. As the world becomes increasingly electrified, the ability to "see" the flow of electrons will remain the most important tool in the engineer’s kit.
