The Science of Connectivity: A Comprehensive Guide to Selecting the Right Cable

In an era defined by ubiquitous technology, we often overlook the "nervous system" of our modern infrastructure: the cable. From the power lines delivering electricity to our homes to the intricate wiring inside a high-end gaming PC, cables are the silent conduits of our daily lives. However, choosing the wrong cable is not merely an inconvenience—it can result in unstable connections, equipment failure, and, in the most severe cases, significant safety hazards such as fire or electrocution.

For DIY enthusiasts, apprentices, and homeowners, navigating the technical landscape of cable selection can be daunting. This guide demystifies the complexity of electrical and data cabling, providing the knowledge necessary to make informed, safe, and efficient decisions for any project.

The Anatomy of a Cable: Understanding the Layers

To select the right cable, one must first understand that a cable is a complex, multi-layered component designed for specific environmental and electrical demands.

1. The Conductor: The core of any cable. Usually made of copper, this is the medium through which electrical current or data signals flow.
2. The Insulation: A protective, non-conductive layer—typically made of plastic or rubber—encasing the conductor. Its primary role is to prevent short circuits and accidental electric shocks.
3. The Shielding (Optional): Crucial for data cables, this layer protects signals from electromagnetic interference (EMI), ensuring data integrity in environments prone to electrical noise.
4. The Outer Sheath (Jacket): The final, outermost layer. It provides mechanical protection against abrasion, moisture, chemicals, and extreme temperatures.

Rigid vs. Fine-Stranded Conductors

The physical composition of the conductor determines the cable’s application. Rigid conductors consist of a single, solid copper wire. They are remarkably stable and break-resistant, making them the industry standard for permanent installations, such as those buried within residential walls.

Conversely, fine-stranded conductors (litze) consist of numerous thin copper wires bundled together. This structure offers superior flexibility, making them the ideal choice for mobile applications, extension cords, and internal device wiring where the cable must endure constant movement or tight bending radii.

Nomenclature: Kabel vs. Leitung

In common parlance, "cable" and "wire" are often used interchangeably. However, in technical and engineering contexts, the distinction is significant.

A "Leitung" (line/wire) is a general term for a conductor or a bundle of conductors meant for current transmission. A "Kabel" (cable) is a more robust, heavily insulated, and often reinforced assembly of one or more lines, typically designed for permanent or semi-permanent installation. For example, the flexible cord on your desk lamp is technically a Leitung, whereas the heavy-duty, shielded assembly running through your house’s infrastructure is a Kabel. Understanding this distinction helps professionals specify the correct components for specific building codes and safety standards.

Decoding the Label: Understanding Standardized Markings

Every high-quality, standardized cable carries a alphanumeric code, such as "H05VV-F." These markings are not random; they follow a strict European harmonization system (HAR):

• H: Indicates the cable conforms to the harmonized European standard.
• 03/05/07: Denotes the voltage rating (300V, 500V, or 750V). Higher numbers are required for more demanding industrial or high-power residential applications.
• V/R/N: Describes the material. "V" signifies PVC insulation, while "R" or "N" indicates various grades of rubber or specialized heavy-duty polymers.
• F/U/K: Describes the conductor flexibility (F for flexible, U for solid, K for finely stranded).

Standardized Color Coding: The Language of Safety

Safety depends on the universal recognition of wire colors. While standards can vary in legacy installations (pre-2003), modern European standards dictate:

• Brown, Black, Grey: The Phase (Live) wires. These carry the electrical current and are always considered hazardous.
• Blue: The Neutral wire, which completes the circuit.
• Green-Yellow: The Protective Earth (PE). This is the most critical safety feature, as it conducts fault current to the ground to prevent electrocution.

Implications of Improper Cable Selection

The Danger of Undersized Cross-Sections

A common mistake in DIY projects is selecting a cable with an insufficient cross-sectional area (measured in mm²). If the wire is too thin for the load it carries, electrical resistance leads to heat buildup. Over time, this insulation degradation can trigger a fire.

• 1.5 mm²: Suitable for standard lighting and low-draw outlets.
• 2.5 mm²: Essential for high-load appliances like tumble dryers or heavy-duty power tools.
• 4.0 mm² and above: Required for electric stoves, large industrial machinery, or long-distance runs.

The Role of Distance: Voltage drop is a physical reality. As a cable lengthens, resistance increases. A 30-meter cable with a 1.5 mm² cross-section may experience a voltage drop exceeding the 3% threshold defined by DIN 18015 standards, leading to inefficient operation or premature device failure.

Official Guidelines and Best Practices

Industry standards bodies emphasize three pillars for safe installation:

1. Compliance: Always use materials that meet the Harmonized (HAR) standards.
2. Protection: The use of an RCD (Residual Current Device), or "FI-Schutzschalter," is mandatory for outdoor and wet-room installations. An RCD detects minute discrepancies in the current flow and cuts power in milliseconds, often the difference between life and death.
3. Verification: Never assume a wire is dead. Utilize a calibrated multimeter to check for voltage and continuity before performing any modifications.

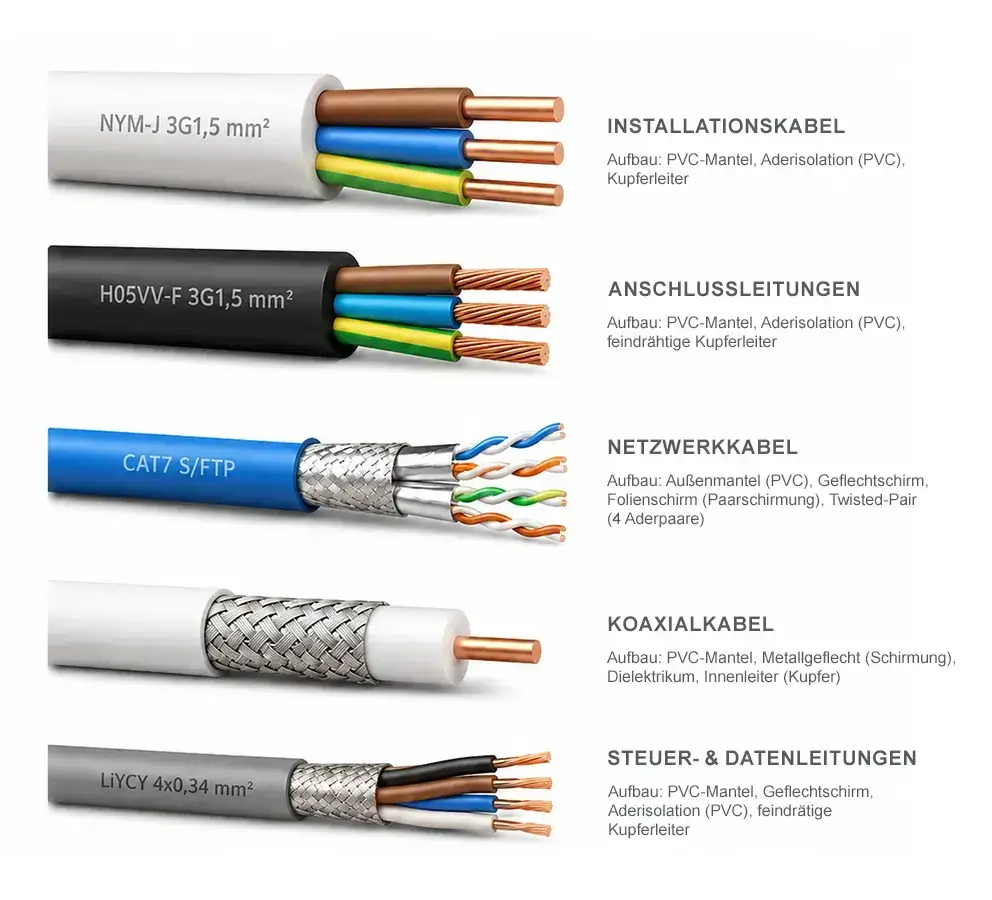

Summary of Common Cable Types

Conclusion: Engineering for Longevity and Safety

Choosing the correct cable is a foundational element of any electrical project. Whether you are wiring a smart home, setting up a professional workshop, or simply replacing a damaged extension lead, the variables of voltage, current, environment, and physical flexibility must be calculated with precision.

By adhering to standardized markings, understanding the physical properties of insulation and conductors, and respecting the critical importance of safety devices like the RCD, you ensure not only the longevity of your equipment but the safety of your home. When in doubt, consult a certified electrician. In the world of electrical engineering, there is no such thing as being "over-prepared"—the cost of a quality, correctly specified cable is negligible compared to the price of a failure.
