The Silent Revolution: How the TTP223 Touch Sensor is Replacing the Mechanical Switch

In an era dominated by sleek, bezel-less smartphones and haptic-feedback interfaces, the humble mechanical switch—with its clicking springs and physical fatigue—has begun to feel like a relic of the past. For DIY enthusiasts, engineers, and industrial designers alike, the quest for a more refined user interface has led to a burgeoning interest in solid-state alternatives. Chief among these is the TTP223 touch sensor module, an inexpensive, versatile, and remarkably efficient component that is fundamentally changing how we interact with our custom electronics projects.

Main Facts: The Anatomy of a Modern Interface

The TTP223 is a capacitive touch sensor integrated circuit designed to replace traditional tactile switches. Unlike mechanical pushbuttons, which rely on the physical movement of metal contacts to complete a circuit, the TTP223 detects the change in capacitance caused by the proximity of a human finger.

The module is remarkably compact, typically no larger than a postage stamp, and operates on a wide voltage range, making it compatible with everything from 3.3V microcontrollers like the ESP32 to 5V Arduino platforms. Its core strength lies in its "through-material" capability. Because it functions via capacitive sensing, the sensor can be mounted behind non-conductive surfaces such as acrylic, glass, plastic, or even thin wood. This allows designers to create "invisible" control panels where the interface is seamlessly integrated into the aesthetic of the device housing.

However, the technology is not without its nuances. The sensitivity of the sensor is inversely proportional to the thickness of the overlay. While this may seem like a limitation, it is often a design advantage. By carefully selecting the material thickness or modifying the touch pad area, designers can calibrate the sensitivity to prevent accidental triggers, ensuring that the interface remains robust and reliable under real-world conditions.

Chronology: From Industrial Tech to the Maker Bench

The journey of the TTP223 into the mainstream "maker" consciousness did not happen overnight. Initially, capacitive sensing was the domain of high-end consumer electronics—expensive appliances and specialized industrial control panels. As semiconductor manufacturing costs plummeted, manufacturers began packaging these complex circuits into small, "drop-in" modules, bringing the technology within the reach of hobbyists.

In recent years, community-driven documentation—such as the recent technical breakdowns provided by developers like [Tarantula3]—has demystified the module for the average user. Early adoption was plagued by issues regarding false triggering and power management. Through iterative testing, the community identified that the key to stability lay in proper power supply decoupling. The introduction of small filtering capacitors became a standard "best practice" in forums, effectively solving the noise issues that once deterred casual users. Today, the TTP223 is a staple in the inventory of online component retailers, marking its transition from a specialized industrial component to a commodity item in the electronics hobbyist’s toolkit.

Supporting Data: Efficiency and Configuration

One of the most common concerns regarding electronic sensors is power consumption. Mechanical switches, by nature, consume zero power at rest. Electronic sensors, however, must be "always on" to detect a touch. The TTP223 addresses this with remarkable efficiency.

Power Consumption Metrics

Under static, idle conditions, the TTP223 consumes less than 2 microamps. To put this in perspective, a standard coin-cell battery could theoretically power this sensor for years without depletion. This makes it an ideal candidate for battery-operated IoT devices, remote controls, and wearable technology where energy efficiency is paramount.

The "Solder Configuration" Methodology

One of the most ingenious aspects of the TTP223 module is its configuration system, which relies on the physical modification of the board through soldering—a method often jokingly referred to as the "solder programming language."

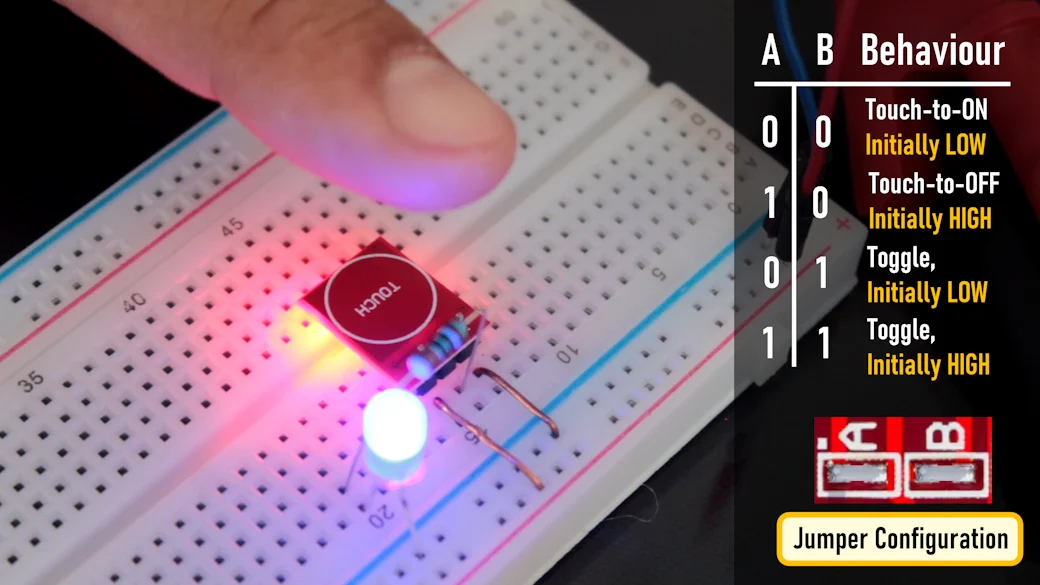

The board features two primary jumper pads, labeled A and B, which define the logic state of the output:

• Default State: With both jumpers open, the module acts as a momentary switch. The output goes "High" only while the sensor is being touched and reverts to "Low" upon release.
• Inversion (Jumper A): By bridging Jumper A, the logic is inverted; the output is "High" by default and goes "Low" when touched.
• Toggle Mode (Jumper B): Bridging Jumper B changes the behavior from momentary to latching. Each press toggles the output state, effectively turning the sensor into a digital flip-flop.
• Advanced Configuration: Bridging both A and B allows for a toggling output with an inverted default state, providing developers with a high degree of flexibility without the need for additional logic gates or software overhead on the microcontroller side.

Official Responses and Engineering Perspectives

From an engineering standpoint, the shift toward capacitive touch is driven by both form and function. Industrial designers prefer the TTP223 because it eliminates the need for holes in the chassis, which are potential entry points for dust, moisture, and debris. A sealed, monolithic plastic surface is significantly easier to clean and sanitize, making these sensors ideal for kitchen appliances, medical devices, and public-facing kiosks.

However, industry experts caution that capacitive sensing is not a "magic bullet." Because the sensors rely on detecting minute changes in capacitance, they are susceptible to environmental interference. High-frequency electromagnetic noise, poor grounding, and even rapid changes in humidity can cause a sensor to trigger erroneously.

"The component itself is robust," notes one hardware consultant, "but the implementation is everything. If the ground plane is not properly isolated, or if the power supply is noisy, the TTP223 can become an unreliable source of interrupts. We always recommend adding a small bypass capacitor between the VCC and GND pins of the module to filter out high-frequency transients, especially in environments where motors or high-power LEDs are present."

Implications for Future Design

The implications of the TTP223 and similar capacitive sensors for the future of 3D printing and rapid prototyping are profound. We are moving toward a paradigm where the "switch" is no longer a separate part bought from a catalog, but rather a functional feature printed directly into the product’s housing.

3D Printing Integration

The ability to "drop in" these modules during a print job—pausing the printer, inserting the sensor, and sealing it behind a layer of filament—allows for the creation of smart, touch-sensitive objects that look completely solid. This opens up a new aesthetic language in industrial design where the interface is hidden, only revealing itself when the user interacts with the surface.

Power Management Evolution

Beyond simple interfaces, there is ongoing research into using these modules as "soft power switches." By coupling a TTP223 with a MOSFET or a dedicated power management IC, designers can create circuits that keep the entire system in a deep-sleep state until a user touches the sensor. This is the cornerstone of modern power-saving design, allowing devices to remain "off" yet instantly responsive to user input.

The Human-Computer Interaction (HCI) Shift

As we continue to iterate on these designs, the physical feedback loop is changing. We are losing the mechanical "click," but we are gaining a world of customizable, ergonomic, and aesthetically pleasing surfaces. The challenge for the next generation of designers is to pair this capacitive technology with haptic feedback—vibration motors or audio cues—to restore the satisfying tactile response that users associate with high-quality engineering.

Conclusion

The TTP223 represents more than just a cheap electronic part; it is a catalyst for a design philosophy that favors integration, efficiency, and minimalism. While the traditional mechanical switch will always have its place in high-vibration or high-safety environments, the future of consumer-facing electronics is undeniably headed toward the silent, invisible, and highly configurable world of capacitive touch.

For the maker community, the lesson is clear: the most sophisticated interfaces are often the ones that disappear into the device itself. As we continue to refine our use of modules like the TTP223, we are not just building gadgets; we are redefining the tactile relationship between humans and the machines they create. Whether you are building a smart-home light switch, a custom macro pad, or a bespoke piece of hardware, the TTP223 offers a reliable, low-cost path to a professional-grade interface that feels like the future—because, in many ways, it already is.
