The Solar Revolution: How 200-Year-Old Optics Are Powering a Hydrogen Breakthrough

In a remarkable convergence of 19th-century optics and cutting-edge aerospace engineering, researchers at the Fraunhofer Institute for Solar Energy Systems (ISE) in Freiburg have achieved a milestone in renewable energy. The team has successfully demonstrated a module capable of converting sunlight directly into hydrogen with an efficiency of 31.3%—the highest value ever recorded under outdoor conditions. While the achievement marks a significant leap forward in the quest for green fuel, it also highlights the profound economic "cost paradox" that currently defines the frontier of solar-to-hydrogen technology.

Main Facts: A New Efficiency Benchmark

The core of the breakthrough lies in the direct coupling of high-efficiency solar cells with an electrolyzer. In a standard setup, hydrogen production is a multi-stage, energy-intensive process. Photovoltaic (PV) modules convert sunlight into electricity, which is then conditioned by power electronics, transmitted through the grid, and finally fed into an electrolyzer. Each of these steps introduces energy losses. Typically, a standard commercial PV module operates at about 22% efficiency, and the subsequent electrolysis process captures roughly 60% to 70% of that energy. Consequently, the end-to-end efficiency of conventional systems rarely exceeds 14%.

By contrast, the Fraunhofer ISE module eliminates these "detours." By utilizing III-V multi-junction solar cells—semiconductors traditionally used to power satellites in space—the team achieved a direct conversion process. These cells deliver a high open-circuit voltage of over 4 volts, which is perfectly calibrated to drive the electrolytic splitting of water without the need for power-hungry external electronics.

The Chronology of Development

The path to this 31.3% record was not instantaneous. It began with the foundational research into Concentrator Photovoltaics (CPV). The ISE team sought to overcome the prohibitive cost of III-V cells, which are far too expensive for terrestrial applications when used in large surface areas.

• 2020–2022: Initial conceptualization of the "HyCon" system, focusing on the electrical matching of solar cells and electrolyzers.
• 2023: Early prototypes demonstrated the feasibility of direct coupling, reaching outdoor efficiencies near 19.8% using two- and three-junction cell configurations.
• 2024–2025: The integration of a fourth semiconductor layer allowed the researchers to push the efficiency envelope past the 30% mark.
• Mid-2026: The successful outdoor field test confirms the 31.3% efficiency, proving that the system can endure 107 hours of operation and multiple load cycles without measurable degradation.

Supporting Data: The Power of Concentration

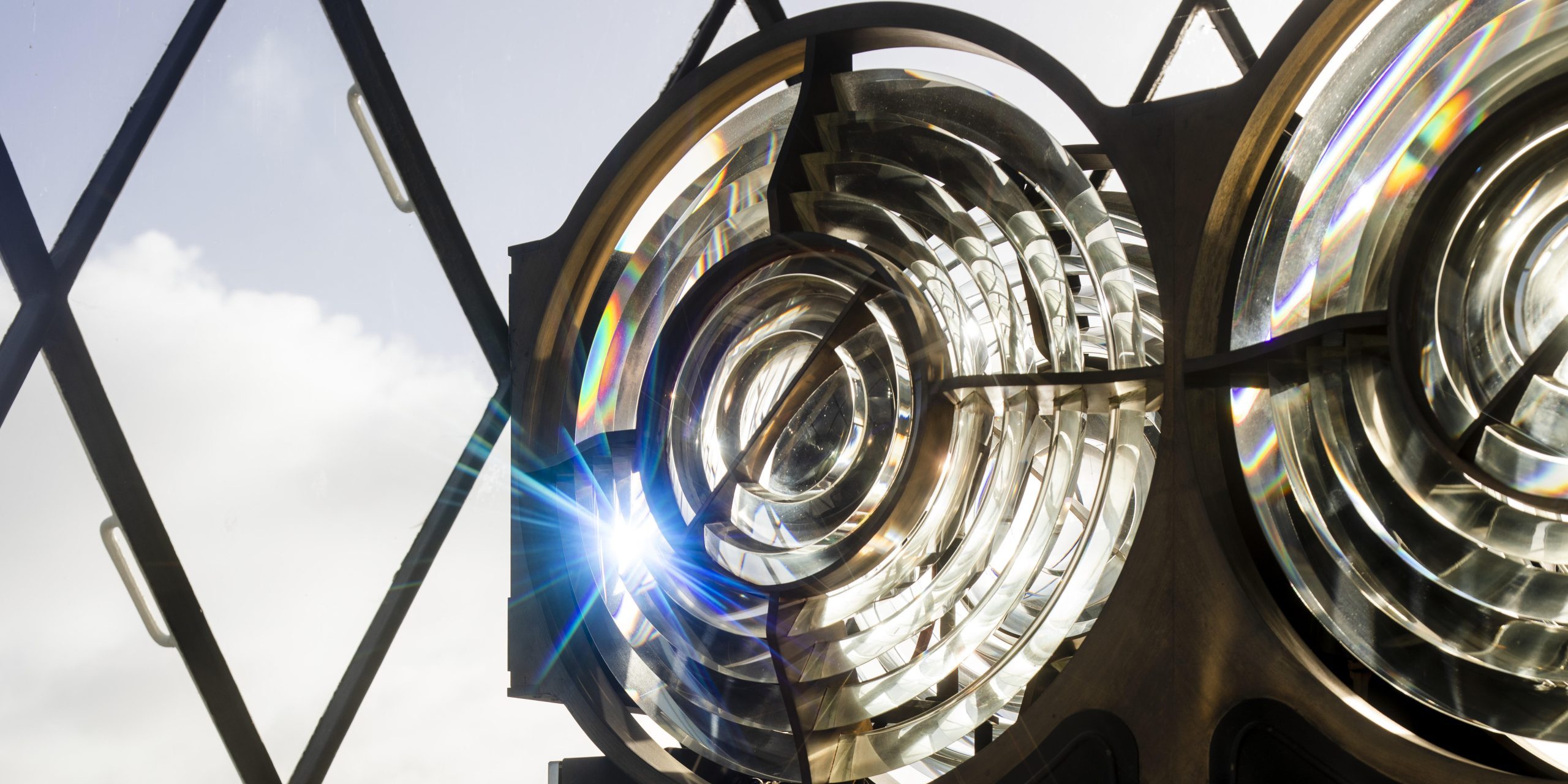

The "secret sauce" of the project is the use of Fresnel lenses, an optical technology invented by Augustin-Jean Fresnel in 1822 to focus light in lighthouses. In the modern context, these lenses serve a dual purpose:

1. Economic Viability: The lenses concentrate sunlight by a factor of several hundred onto a tiny surface area—approximately 64 square centimeters, or roughly the size of a credit card. This allows the system to generate high power output using a minimal amount of expensive semiconductor material.
2. Electrical Optimization: The concentration of light increases the current density and voltage, ensuring the "perfect match" required to drive the electrolysis reaction without energy-wasting power converters.

According to models developed by the team, this high-efficiency approach could potentially reduce the cost of green hydrogen to under 3 US dollars per kilogram, provided the system is deployed in regions with a capacity factor of 35% or higher.

Official Responses and Strategic Outlook

The researchers are acutely aware that moving from a laboratory record to industrial mass production is a daunting task. Frank Dimroth, a key researcher at the ISE, acknowledges that the technology is currently at a Technology Readiness Level (TRL) of 3—the laboratory stage.

To bridge the "valley of death" between research and market, the institute is preparing to spin off a startup called Clearsun Energy. The primary objective of this venture is to secure the necessary venture capital to scale the technology. The goal is to move beyond the Proof-of-Concept phase and into pilot projects that demonstrate the robustness of the system in real-world, off-grid environments.

"We have proven that the physics works," says Tom Smolinka, head of the Membrane Electrolysis department at ISE. "The challenge now is proving that the economics can compete with the massive, centralized electrolysis plants currently being built globally."

Implications for the Future of Energy

The success of this module carries significant implications for the global hydrogen economy. Currently, the industry relies on large-scale, grid-connected electrolyzers. However, the Freiburger approach suggests a different model: decentralized hydrogen production.

The Four Paths to Hydrogen

To understand the significance of this development, one must compare it against the broader landscape of hydrogen production:

1. Grid-Connected Electrolysis: The status quo. High dependency on existing electrical infrastructure and the volatility of the spot market.
2. Dedicated Solar-to-Hydrogen (Indirect): A common setup where a PV farm is built specifically for an electrolyzer. This is more efficient than grid-connected systems but still suffers from multiple conversion losses.
3. Direct Photo-Electrochemical (PEC) Splitting: Using specialized materials to split water directly. While promising, this technology currently struggles with very low efficiencies and durability issues.
4. Concentrated PV-Electrolysis (The ISE Approach): The "Goldilocks" solution. It combines the high efficiency of space-grade photovoltaics with the reliability of established electrolysis, skipping the power-conversion chain entirely.

Market Entry and Niche Applications

The direct-coupling technology is unlikely to replace large-scale industrial hydrogen hubs in the near future. Instead, its most immediate application lies in off-grid, sun-drenched regions. In remote areas where building a power grid is prohibitively expensive, these modules could act as self-contained "hydrogen generators." By eliminating the need for transformers, inverters, and high-voltage cabling, the system could provide energy independence to industrial outposts, mining operations, or remote agricultural projects.

Addressing the Cost Paradox

The primary hurdle remains the cost of the III-V semiconductors. Critics often point out that while the lenses reduce the required surface area, the fabrication of these multi-junction cells remains complex. However, the Fraunhofer team argues that the efficiency gains—more than double the output per square meter compared to traditional setups—could offset the initial capital expenditure over the lifespan of the system.

Furthermore, the utilization of waste heat from the module to enhance the electrolysis process is an area of ongoing optimization. By integrating thermal management, the efficiency could be pushed even higher, potentially redefining what is possible in the field of renewable fuel generation.

Conclusion

The record-breaking 31.3% efficiency achieved by the Fraunhofer ISE team is more than just a number; it is a proof-of-concept for a new paradigm in hydrogen production. By revisiting the elegant optical principles of the 19th century and marrying them with the advanced semiconductor physics of the 21st, the team has created a pathway to a more compact, efficient, and direct energy future.

While the path to commercialization remains fraught with financial and engineering challenges, the potential to unlock decentralized, carbon-free fuel production is a goal worth pursuing. As Clearsun Energy begins its search for investors, the global energy sector will be watching closely to see if this "space-age" technology can finally make the transition to the sun-scorched landscapes of the Earth. Whether it becomes a dominant technology or a niche solution for remote applications, the Freiburg breakthrough has undoubtedly shifted the goalposts for the hydrogen industry.
