Thermomanagement: The Unseen Battle for Electronic Longevity

July 6, 2026, 06:21 UTC | Report by Jürgen Harpain, Head of Development at Fischer Elektronik

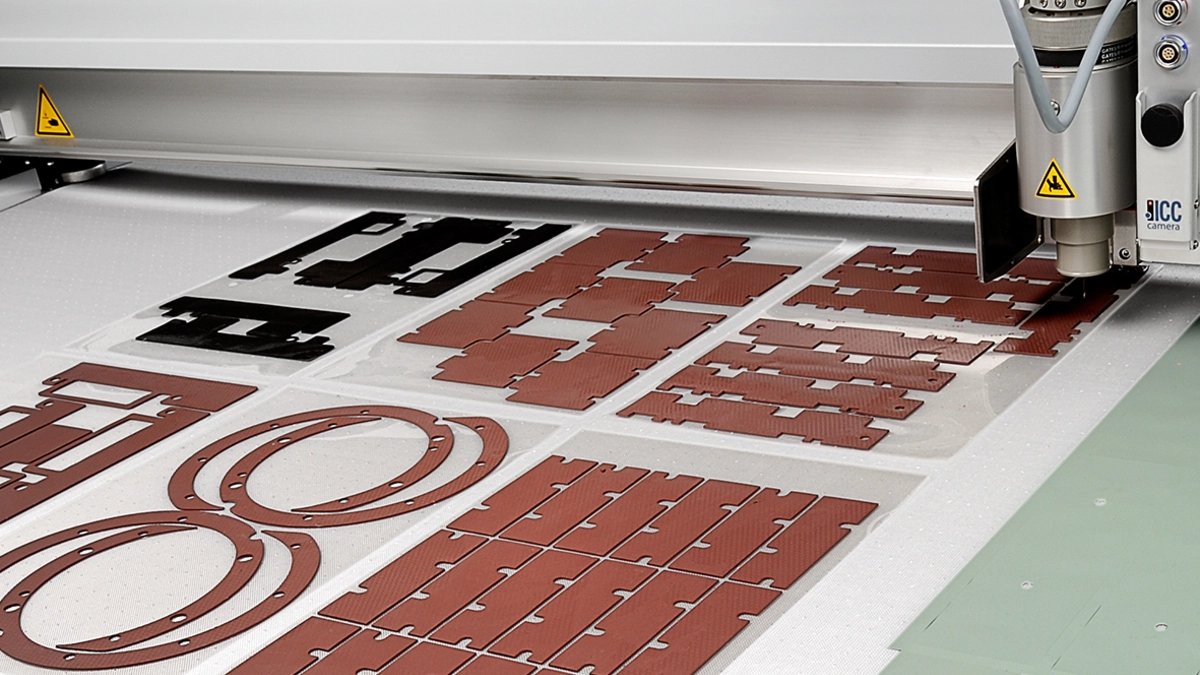

[Image: Manufacturing of customized drawing parts using modern processing centers, also with 24h sample service. Caption: Production of customized drawing parts using a cutting plotter.]

In the relentless march of technological progress, the silent killer of electronic components remains high temperatures. As devices shrink and power densities soar, ensuring the reliability and extending the lifespan of sophisticated electronics hinges critically on effective thermal management solutions. The central challenge? Achieving an optimally efficient thermal connection between the heat-generating electronic component and its designated heat sink.

Jürgen Harpain, Head of Development at Fischer Elektronik, a renowned expert in electronic packaging and thermal solutions, emphasizes this critical juncture. "Operating a component within its specified temperature range, as dictated by the manufacturer’s datasheet, is not merely a recommendation; it’s an absolute necessity," Harpain states. "Failure to do so can lead to premature degradation, intermittent malfunctions, or even catastrophic failure. The efficiency of any thermal solution is intrinsically linked to its precise selection and adaptation to the specific application and its environmental parameters."

The Escalating Challenge of Heat

The digital age, characterized by phenomena like the Internet of Things (IoT), artificial intelligence (AI), high-performance computing, and advanced automotive electronics, continuously demands more from its underlying hardware. Miniaturization, coupled with increasing computational power, inevitably leads to higher power dissipation within smaller footprints. This concentrated energy, if not effectively managed, manifests as heat, posing a direct threat to the semiconductor junctions, dielectric materials, and interconnects within electronic devices.

Modern processors, power modules, LEDs, and memory chips generate significant thermal loads. Without a robust thermal management strategy, these components quickly exceed their maximum operating temperatures. This leads to a cascade of detrimental effects: reduced performance, increased leakage currents, electromigration, accelerated aging, and ultimately, a drastically shortened operational life. The cost implications, from warranty claims to system downtime and reputation damage, underscore the urgency of addressing thermal challenges proactively.

Navigating the Thermal Pathway: Understanding Heat Transfer Dynamics

To mitigate these risks, engineers must meticulously analyze the "thermal path" – the complete journey of heat from its generation point within the electronic component to its ultimate dissipation into the ambient environment or a dedicated heat sink. This path is not uniform; it comprises various materials and interfaces, each contributing its own resistance to heat flow.

Deconstructing Thermal Resistance

The efficiency of a thermal management solution is determined by its ability to minimize the overall thermal resistance along this path. Conceptually, thermal resistance (Rth) is analogous to electrical resistance, where heat flow is akin to electrical current, and temperature difference is like voltage. The total thermal resistance is the sum of individual thermal resistances encountered along the heat’s journey. These include:

• Junction-to-Case Resistance (Rjc): Heat transfer from the semiconductor junction to the component’s package.
• Case-to-Sink Resistance (Rcs): Heat transfer from the component’s package to the heat sink – this is where Thermal Interface Materials (TIMs) play their most crucial role.
• Sink-to-Ambient Resistance (Rsa): Heat transfer from the heat sink to the surrounding air or fluid.

"In practical design, beyond an initial rough calculation, a detailed examination of each heat transfer resistance along the thermal path is indispensable," Harpain explains. "The larger this resistance to heat flow, the less effectively heat is transferred from point A to point B, and the more heat is lost or retained along the way to the heat sink." A higher total thermal resistance directly translates to a higher temperature rise at the component, accelerating its degradation. Therefore, engineers strive to minimize each of these resistances, with a particular focus on the interfaces where significant temperature drops often occur.

The Critical Interface: Bridging the Micro-Gaps

One of the most frequently underestimated, yet profoundly influential, factors in overall thermal performance is the thermal contact between the heat-generating component and the heat sink. Manufacturing processes, whether for extruded heat sinks, fan assemblies, or liquid cooling systems, inherently introduce geometric tolerances. For instance, extruded heat sinks, common due to their cost-effectiveness, exhibit variations in width, height, base thickness, fin thickness, and fin spacing. These geometric dependencies mean that profiles will have height and width tolerances, warpage in cross-section, and even torsion along their length.

"The mounting surfaces, often the heat sink base functioning as a semiconductor mounting area, are rarely perfectly flat or smooth," Harpain elaborates. "This unevenness, coupled with surface roughness, significantly impedes optimal thermal contact." Similarly, electronic components themselves are not perfectly planar or smooth; they also possess manufacturing tolerances. When two imperfect surfaces are brought together, microscopic air pockets inevitably form at the interface. Air, being an extremely poor thermal conductor, creates a significant thermal barrier, effectively insulating the component from the heat sink.

This is precisely where Thermal Interface Materials (TIMs) become indispensable. Their primary function is to fill these microscopic air gaps, providing a continuous, low-thermal-resistance pathway for heat to flow. While TIMs themselves are not necessarily excellent thermal conductors compared to metals like copper or aluminum, they are invariably superior to air, thereby dramatically improving the overall thermal coupling.

[Image: Various thermal conductive materials from Fischer Elektronik. Caption: Figure 1: Various thermal conductive materials ensure safe and long-lasting thermal contact when correctly selected and adapted to the application.]

The Indispensable Role of Thermal Interface Materials (TIMs)

The market offers a bewildering array of TIMs, making selection a complex task for designers. The evolution of these materials has been significant, with modern TIMs offering far more than just basic heat conduction. "Unfortunately, in practice, TIMs are often selected solely based on their thermal conductivity values listed in datasheets," Harpain observes. "The assumption is that the material with the highest thermal conductivity will automatically lead to the lowest component temperature and longest lifespan. However, this overlooks several other crucial parameters."

Beyond Conductivity: A Holistic Approach to TIM Selection

While thermal conductivity (measured in W/mK) is undeniably important, a comprehensive selection process for TIMs must consider a multitude of factors to ensure long-term reliability and optimal performance:

1. Thermal Resistance (Rth) and Thermal Impedance: While conductivity is a material property, thermal resistance (measured in K/W) is a system property that accounts for the material’s thickness and the contact area. Thermal impedance (K·cm²/W) further refines this by considering the interface resistance under applied pressure, which is often more representative of real-world application performance. A TIM with high conductivity but poor conformability or high contact resistance may perform worse than one with slightly lower conductivity but better interface properties.
2. Surface Flatness and Roughness of Contact Pairings: This is paramount. Before any TIM selection, a thorough assessment of the mechanical conditions and tolerances of the mating surfaces (component and heat sink) is crucial. This reveals the actual gap that needs to be bridged, guiding the choice of TIM thickness and conformability.
3. Electrical Properties: Depending on the application, a TIM may need to be electrically insulating (e.g., to prevent short circuits between a power component and a grounded heat sink) or electrically conductive (e.g., for EMI shielding or ground plane connections). Parameters like dielectric strength (breakdown voltage) and insulation resistance are critical here.
4. Temperature Range: The TIM must maintain its physical and thermal properties across the entire operating temperature range of the application, including transient peaks.
5. Long-Term Stability and Reliability:
   • Pump-out Effect: For pastes and some gels, prolonged thermal cycling can cause the material to migrate away from the interface, leading to air gap reformation.
   • Degradation: Over time, some materials can dry out, harden, or chemically degrade, losing their thermal effectiveness.
   • Outgassing: Volatile components can escape, potentially contaminating sensitive electronics or optics.
6. Application Method and Re-workability: Ease of application (e.g., dispensing, screen printing, manual placement) and the ability to rework or replace components without damaging the TIM or surrounding parts are practical considerations.
7. Pressure Requirements: Some TIMs require significant clamping pressure to achieve optimal performance, while others are designed for low-pressure applications.
8. Cost: Balancing performance requirements with budget constraints is always a factor.

Tailored Solutions: From Pastes to Pads

The specific gap dimensions and application requirements dictate the most suitable TIM type.

[Image: Thermal pastes with various filler particles are excellently suited for compensating roughness depths on planed surfaces. Caption: Figure 3: Thermal pastes with various filler particles are suitable for compensating roughness depths on planed surfaces.]

• Thermal Pastes: When the measured gap between contact surfaces is very small (typically up to 50µm), thermal pastes are often ideal for filling microscopic air voids and surface roughness. Available in silicone-based or silicone-free formulations, they excel at creating extremely thin, highly conformable layers. Harpain cautions against over-application: "Pastes are not designed to bridge larger gaps. Applying too much paste, a common mistake, causes it to squeeze out during assembly. These residues can dry out over time, crumble, and in a worst-case scenario, lead to short circuits on the PCB if the conductive fillers within the paste come into contact with sensitive traces." Fischer Elektronik provides these pastes in various small containers, from syringes to cartridges, and also in 25kg containers for automated dispensing systems.

[Image: Figure 2: Every selection of TIMs should begin with a precise consideration of the contact pairing and its associated tolerances. Caption: Figure 2: Every selection of TIMs should first start with a precise consideration of the contact pairing and its associated tolerances.]

• Solid Thermal Interface Materials: For larger gaps, or applications requiring more mechanical stability and easier handling, solid TIMs are preferred. These include silicone-based and silicone-free thermal pads (foils), foam and gel pads, graphite and aluminum foils, and phase-change materials, as well as single- and double-sided adhesive thermal tapes. Fischer Elektronik offers these as roll or sheet material, depending on thickness. These materials are typically supplied on a reinforced carrier film to provide stability during manufacturing and handling, preventing kinks or tears. An additional protective film on top further safeguards the material from dirt and dust.

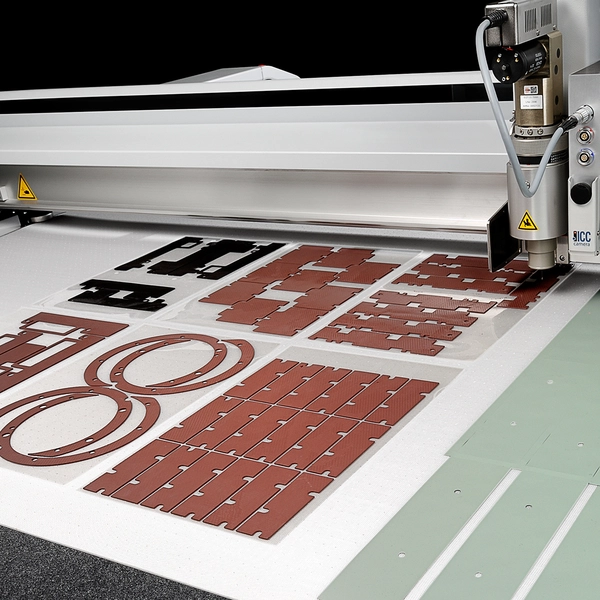

[Image: Manufacturing of customized drawing parts using modern processing centers, also with 24h sample service. Caption: When using the cutting plotter (Figure 4), the thermal conductive material in plate form, usually 300x200mm, is placed on a vacuum table and fixed by strong suction and the resulting negative pressure.]

Precision Engineering: Crafting Custom TIM Solutions at Fischer Elektronik

The demand for application-specific TIM geometries is high, necessitating advanced manufacturing techniques to produce custom cut-outs with high precision and efficiency. Fischer Elektronik employs state-of-the-art machinery to meet these diverse requirements.

The Versatility of Cutting Plotters

For flexible, precise, and often rapid prototyping or small-to-medium volume production of solid TIMs, cutting plotters are invaluable. "With our cutting plotter (Figure 4), the thermal interface material, typically in sheet form (e.g., 300x200mm), is securely held on a vacuum table using powerful suction," Harpain explains. "The desired contour geometry, defined via CAD data, is then precisely cut from the material by the plotter’s rotating cutting unit."

This technology offers significant versatility. Depending on the cutting settings, the material can be cut completely through, or a "kiss-cut" can be performed, where the cut goes only through the TIM layer down to the carrier material. This allows the desired geometry to remain on the carrier for easy peeling and placement during assembly. The waste material can then be removed by the customer or automatically peeled off. The exceptional production speed and perfected cutting technology of these plotters ensure optimal results, even for complex geometries.

The Efficiency of Automated Punching Machines

For high-volume production of custom TIM shapes, Fischer Elektronik utilizes fully automatic punching machines. "With the automatic punching machine, sheet material is placed into a fixture within the open tool, and then precisely stamped out using a band steel die," Harpain details. "Depending on the size of the desired geometry and the tool’s design, multiple parts can be punched simultaneously, significantly increasing throughput."

A key advantage of Fischer Elektronik’s specialized punching machines is their integrated roll-to-roll capability. The machine features multiple driven roll holders, offering a significant production advantage. A master roll of TIM material is loaded onto the machine, fed into the punching unit, and precisely "kiss-cut" down to the carrier material. The remaining waste material is automatically peeled off the carrier tape and wound onto a separate roll. Concurrently, the punched desired geometries, still adhering to the carrier tape, are re-spooled onto a new roll. "This innovative process allows our customers to receive their custom-punched TIMs wound onto a roll, perfectly suited for seamless integration into their fully automated assembly lines," Harpain emphasizes. This approach streamlines manufacturing, reduces manual handling, and ensures consistent quality for large-scale applications.

The Future of Electronics Depends on Effective Thermomanagement

The importance of advanced thermomanagement, particularly the intelligent application of TIMs, cannot be overstated. As electronic systems become more powerful, denser, and more critical to diverse industries, the demand for robust thermal solutions will only intensify.

Ensuring Reliability, Performance, and Innovation

Effective thermal management directly underpins the reliability and performance of modern electronics. It ensures that components operate within their safe limits, preventing thermal runaway and premature failure. This, in turn, translates to higher system uptime, reduced maintenance costs, and improved overall product quality. Beyond mere prevention, optimized thermal management can unlock new levels of performance, allowing designers to push the boundaries of clock speeds, power outputs, and miniaturization without compromising stability. It enables the development of groundbreaking technologies in fields like electric vehicles, 5G infrastructure, medical devices, and aerospace, where thermal constraints are often a primary limiting factor.

A Collaborative Imperative

The complexity of thermal challenges necessitates a collaborative approach. Manufacturers like Fischer Elektronik, with their deep expertise in materials science, mechanical engineering, and thermal design, play a vital role in partnering with electronic designers. By providing a comprehensive range of TIMs, custom fabrication capabilities, and expert consultation, they empower engineers to overcome thermal hurdles and bring innovative products to market faster and more reliably.

As Jürgen Harpain concludes, "The selection and application of thermal interface materials are far from trivial. They require a nuanced understanding of the entire thermal system. By focusing on application-specific solutions and leveraging advanced manufacturing techniques, we ensure that heat, while an inherent byproduct of electronic activity, never becomes a limiting factor in the relentless pursuit of technological advancement." The battle against heat in electronics is a continuous one, and with precise thermomanagement and intelligent TIM selection, the future of electronic innovation remains bright.
