Beyond the Zipper: The "Y-Zipper" Revolution in 3D-Printed Structural Engineering

The humble zipper, a staple of textile utility since its refinement in the early 20th century, has long served a singular purpose: the temporary, reversible joining of flexible materials. From jackets to luggage, its mechanism remains largely unchanged. However, a groundbreaking research project from a team led by Jiaji Li has reimagined this age-old fastener not as a mere clothing accessory, but as a sophisticated architectural tool.

The "Y-Zipper," as detailed in their recent publication in the ACM Digital Library, introduces a 3D-printed, compliant mechanism capable of transforming two-dimensional, flexible sheets into rigid, complex three-dimensional structures. By leveraging the geometric potential of interlocking teeth, this innovation promises to bridge the gap between rapid assembly and structural stability, offering a new paradigm for everything from modular architecture to collapsible medical devices.

The Core Mechanism: From Flat Sheets to Rigid Volumes

At the heart of the Y-Zipper lies a deceptively simple premise: if a zipper can join two edges of fabric, a precisely engineered, geometry-controlled zipper can join those edges in a way that forces the resulting structure into a pre-calculated 3D form.

Unlike standard linear zippers, which follow a straight path, the Y-Zipper components are designed to accommodate curvature, torsion, and variable rigidity. When the slider mechanism traverses the track, it does more than lock fabric; it dictates the spatial orientation of the material. By modulating the shape of the interlocking teeth and the flexibility of the base material—often a combination of rigid PLA (Polylactic Acid) and compliant TPU (Thermoplastic Polyurethane)—researchers can compel a flat strip of material to coil into a cylinder, twist into a helix, or bloom into a structural strut.

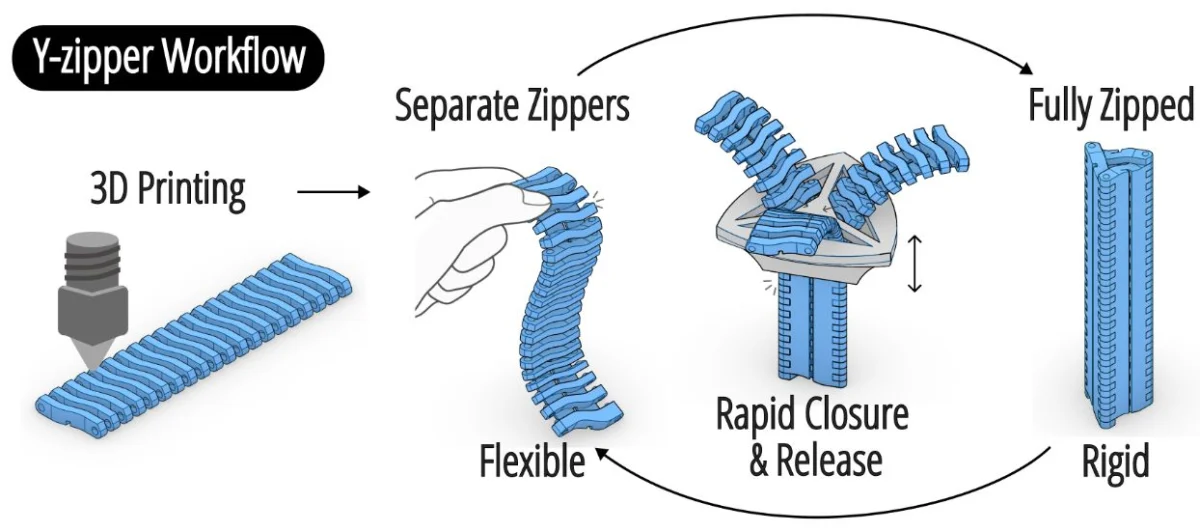

The genius of the system is its "automatic actuation" potential. Because the transition from 2D to 3D is baked into the geometric path of the track, the simple act of "zipping" provides the force necessary to lock the structure into its rigid final state. This eliminates the need for external fasteners, glues, or complex assembly jigs.

A Chronology of Geometric Innovation

The path to the Y-Zipper is a study in the evolution of compliant mechanisms. To understand the significance of this development, one must look at the progression of "transformable" materials in engineering:

• Early 2010s: The Rise of 4D Printing: Researchers began experimenting with smart materials that change shape in response to heat or moisture. While impressive, these structures often lacked the load-bearing capacity required for real-world applications.
• 2018–2022: Origami-Inspired Structures: The field turned toward folding geometry (origami/kirigami). These structures were highly efficient but notoriously difficult to manufacture at scale using standard additive manufacturing techniques.
• 2023–2025: The Search for Reversible Rigidity: Engineers identified a critical bottleneck: how to create a structure that is compact and flexible during transport, yet perfectly rigid upon deployment. The research team behind the Y-Zipper sought to solve this by moving away from "smart materials" and toward "mechanical intelligence."
• May 2026: The Y-Zipper Demonstration: The publication of Li et al.’s findings marks the culmination of these efforts. By focusing on the mechanical interlocking of teeth rather than material properties alone, the team successfully demonstrated a mechanism that is both robust and scalable via standard FDM (Fused Deposition Modeling) 3D printers.

Technical Specifications and Supporting Data

The research team’s methodology was rigorous, focusing on the material interface between the rigid teeth and the compliant backing. The choice of PLA and TPU was not merely for convenience; it was a strategic decision to balance durability with the elasticity required to navigate the zipper’s "bends."

Key Data Points:

• Material Composition: The Y-Zipper utilizes a dual-material printing approach. The teeth are constructed from rigid PLA to ensure a secure, load-bearing lock, while the track substrate is printed in TPU to provide the necessary flexibility for curved trajectories.
• Structural Versatility: The system supports "compliant bridges," which allow the zipper to transition smoothly across gaps or change direction without binding.
• Length Constraints: One of the most significant findings in the study is the "disintegration threshold." The researchers identified that for current TPU/PLA configurations, the structural integrity begins to degrade at a length of approximately 3 meters. This limitation is largely due to the accumulation of friction and the buildup of stress within the track as the slider moves further from the starting point.
• Geometric Modularity: Through the use of custom-designed joints, the team successfully demonstrated that multiple Y-Zipper rods could be interconnected. This allows for the construction of larger frameworks—a crucial feature for applications like pop-up shelters or temporary scaffolding.

Official Responses and Peer Review

The academic and engineering communities have met the Y-Zipper concept with cautious optimism. Dr. Helena Vance, a professor of soft robotics, noted that "the innovation here isn’t the zipper itself, but the use of the zipper as a programmable structural constraint. We have seen many ways to join materials, but few that force the material into a rigid, load-bearing geometry simply by closing it."

However, industry experts point out that the transition from a laboratory bench to mass manufacturing remains the primary hurdle. "3D printing is excellent for prototyping," says manufacturing consultant Marcus Thorne, "but the assembly time for these individual zipper components is currently high. If they can streamline the printing process to allow for continuous, long-format production, this could revolutionize rapid-response logistics."

The research team has acknowledged these concerns, focusing their current efforts on optimizing the slider geometry to reduce the force required for assembly and exploring high-tensile materials that could push the 3-meter structural limit further.

Implications for Future Engineering

The implications of the Y-Zipper are far-reaching, potentially disrupting several industries that rely on rapid assembly and structural portability.

1. Disaster Relief and Architecture

In the wake of natural disasters, time is the most critical resource. Current emergency shelter solutions often require complex frameworks that are difficult to transport and slow to assemble. A Y-Zipper-based system could allow for flat-packed, lightweight panels that, when zipped together, instantly form rigid, wind-resistant structural arches.

2. Space Exploration

The "compact to rigid" transition is the holy grail of aerospace engineering. Every kilogram launched into space is incredibly expensive. The Y-Zipper offers a method to send large-scale solar arrays or antenna reflectors into orbit in a flattened, coiled state, which then deploy into rigid, accurate 3D geometries once they reach their destination.

3. Medical Devices and Soft Robotics

In the medical field, the ability to create wearable braces or casts that can be rapidly tightened to exact specifications, and then just as easily removed, is a significant advancement. By integrating fabric directly into the zipper track, the Y-Zipper can serve as a structural exoskeleton that adapts to the wearer’s anatomy while maintaining the necessary rigidity for support.

4. Consumer Goods

The design potential for the average consumer is equally vast. Imagine a tent that doesn’t require poles, or a piece of furniture that arrives as a flat box and "zips" into a rigid chair. The technology effectively democratizes complex structural engineering, allowing users to assemble high-performance objects without needing an engineering degree.

Conclusion: A New Era of Assembly

The Y-Zipper is a testament to the idea that the most profound innovations often come from re-evaluating the tools we take for granted. By moving the zipper beyond the realm of textiles and into the realm of structural mechanics, Jiaji Li and their team have opened a new door for additive manufacturing.

As the technology matures, we can expect to see it integrated into more robust, longer-lasting structures. While the 3-meter limitation currently restricts the technology to mid-sized applications, the fundamental logic—that geometry can provide strength where materials alone cannot—is a breakthrough that will undoubtedly be refined in the years to come. In a world that increasingly values portability, speed, and efficiency, the Y-Zipper stands as a elegant, mechanical answer to some of our most pressing logistical challenges.
