Decoding the Silence: A Masterclass in Non-Invasive Firmware Extraction

In the high-stakes world of hardware reverse engineering, the "golden rule" is often defined by risk management. When faced with a mystery device—a black box whose secrets are locked behind a proprietary firmware blob—the standard procedure for an engineer is often to desolder the SPI flash chip and dump its contents via a dedicated programmer. However, this brute-force approach carries a non-zero risk of catastrophic failure. Should the heat from the rework station lift a pad or the chip succumb to ESD, the device is rendered a paperweight, and the data is lost forever.

For security researcher Matthew "wrongbaud" Alt, the prospect of destructive analysis is often unacceptable. In a sophisticated exploration of non-invasive data acquisition, Alt has demonstrated that when in-circuit serial programming fails, the answer lies in the silent, invisible traffic traversing the device’s own internal buses. By leveraging logic analyzers and the robust packet-manipulation capabilities of Python’s Scapy library, Alt has provided a roadmap for reconstructing firmware without ever needing to physically extract a single component.

The Challenge of the "Black Box"

Why Traditional Methods Fail

The primary barrier to entry for most hardware hackers is the fragility of modern consumer electronics. Many devices are designed with anti-tamper mechanisms or utilize BGA (Ball Grid Array) packaging that makes physical access to flash pins nearly impossible without professional-grade equipment. Even when the chips are accessible, the "in-circuit" read—connecting a clip directly to the flash pins while the device is powered down—often fails due to bus contention or the presence of other components that interfere with the programmer’s signals.

When these methods reach their limit, the engineer is left with a binary choice: destroy the device to access the data, or find a way to "sniff" the communication as it happens naturally.

The Logic Analyzer as a Window

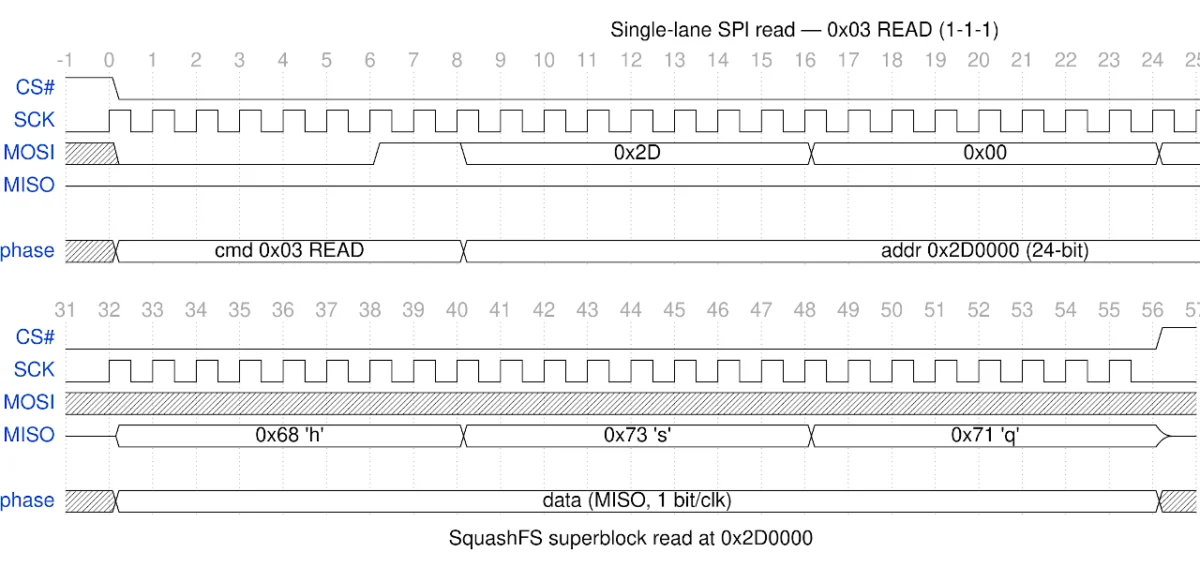

Alt’s methodology shifts the paradigm from "extraction" to "observation." Instead of attempting to force the flash chip to divulge its secrets, he monitors the communication lines between the CPU and the SPI flash during the boot sequence. By attaching a logic analyzer to the Serial Peripheral Interface (SPI) pins, he captures the exact sequence of read commands issued by the CPU to load its bootloader, kernel, and initial ramdisk.

This technique is inherently non-destructive. Because the device is allowed to boot normally, there is no risk of corrupting the firmware or damaging the hardware. However, it is a task of patience and precision; the researcher must correctly identify the SPI signals (Clock, Chip Select, MOSI, and MISO) and ensure the logic analyzer is configured with a high enough sampling rate to catch the fast-moving data stream.

A Chronology of the Extraction Process

Phase 1: Signal Identification and Theoretical Grounding

Before any data can be parsed, the researcher must understand the "language" of the device. Alt emphasizes the necessity of the chip’s datasheet. By consulting the documentation for common W25Q-series flash chips, he maps the pinout and defines the SPI mode (CPOL/CPHA). This foundational work prevents common pitfalls, such as misinterpreting the clock phase, which would render the entire captured dataset as digital noise.

Phase 2: The Capture

With the hardware connections established, the boot process is triggered. The logic analyzer records the state of the lines over several seconds. What appears in the software is a dizzying array of binary transitions. At this stage, the data is raw—it represents the CPU requesting specific addresses, followed by the flash chip streaming the corresponding bytes.

Phase 3: Decoding with Scapy

This is where Alt’s approach diverges from conventional wisdom. Rather than relying on proprietary, black-box software that often comes with logic analyzers, he utilizes Scapy. Typically used by network security researchers to craft and dissect TCP/IP packets, Scapy is remarkably effective at protocol reconstruction. By writing custom dissectors for the SPI traffic, Alt transforms the raw pulse-width data into structured binary files.

Phase 4: The Quad-SPI Obstacle

The process encountered a significant hurdle during the transition from standard SPI to Quad-SPI (QSPI). QSPI increases bandwidth by using four data lines instead of one, which is common in modern SoCs to speed up boot times. Alt’s analysis revealed a "gap" in the firmware: the bootloader and kernel were captured, but the filesystem was missing. This was because the CPU switched to QSPI mode, effectively blinding the standard SPI capture.

By expanding the number of probed lines and modifying the Python reconstruction scripts to account for the additional data lanes, Alt successfully synthesized the full firmware image. A final dd command allowed for the stitching of these segmented captures into a single, cohesive binary file ready for analysis via the binwalk tool.

Supporting Data and Technical Implications

The success of this method relies on the deterministic nature of the boot process. Because the CPU performs the same read operations every time the device is powered on, the researcher can theoretically perform multiple captures to ensure data integrity.

Efficiency Comparison

The implication here is clear: for high-value targets or "one-of-a-kind" hardware, sniffing is the gold standard. It bypasses the need for physical modification while providing a complete map of how the system initializes its memory environment.

Industry Perspectives and Security Implications

The ability to reconstruct firmware via sniffing has significant ramifications for the field of embedded security.

The Manufacturer’s Dilemma

For manufacturers, this underscores the limitations of "security through obscurity." If a researcher can reconstruct a full firmware image simply by observing the bus traffic, any proprietary code or hardcoded keys stored in the flash are potentially exposed. This has led to an increased industry shift toward "Encrypted-in-Place" flash, where the data stored on the chip is encrypted and only decrypted inside the CPU’s secure enclave. However, as Alt’s work demonstrates, until encryption becomes universal, the bus remains a primary vulnerability.

Professional Feedback

Industry veterans have praised Alt’s work for its educational value. While the technique is not new in the realm of high-end intelligence or state-sponsored reverse engineering, the democratization of this knowledge via detailed write-ups is rare. By providing the Python scripts and logic diagrams, Alt is effectively lowering the barrier for entry for junior hardware security researchers, moving the field toward a more transparent and rigorous standard of practice.

Conclusion: The Path Forward

Matthew Alt’s exploration into SPI reconstruction is more than just a clever "hack"—it is a testament to the importance of first principles. In an era where many engineers rely on automated tools that fail to provide context, Alt reminds us of the power of understanding the underlying signal protocols.

For those looking to replicate these results, the path is clear: start with the datasheet, respect the signal integrity, and don’t be afraid to repurpose existing networking tools to serve hardware-level objectives. As the complexity of IoT devices continues to grow, the ability to "listen" to the silent, invisible conversations between chips will remain one of the most vital skills in the reverse engineer’s toolkit.

For further learning, Alt’s ongoing series on hardware hacking—ranging from fault injection to advanced bus analysis—remains an essential curriculum for anyone serious about the intersection of software and silicon. As we move into an increasingly connected future, the ability to peek inside the "black boxes" of our daily lives will only become more essential.
