Democratizing Molecular Analysis: The Rise of Accessible Raman Spectroscopy

In the rarefied world of analytical chemistry, Raman spectroscopy has long stood as a pillar of molecular identification. By measuring the minute energy shifts in photons scattered by a sample, scientists can construct a "fingerprint" of molecular bonds, allowing for the non-destructive analysis of everything from pharmaceuticals to forensic evidence. However, this power has historically been gated by a high barrier to entry: the cost of professional-grade Raman spectrometers, which often reach into the tens of thousands of dollars.

That paradigm is beginning to shift. A project titled "CubeRaman," developed by the engineering enthusiast group known as [Allegedly Science], has successfully demonstrated that sophisticated molecular analysis can be achieved with a fraction of the traditional hardware investment. By combining 3D-printed precision engineering with off-the-shelf optical components, the team has created a functional, highly sensitive system that brings advanced diagnostics into the hands of independent researchers and hobbyists.

Main Facts: How the CubeRaman Works

The fundamental principle behind the CubeRaman is the inelastic scattering of light, known as the Raman effect. When a monochromatic light source—in this case, a 532-nm laser—strikes a sample, most of the photons scatter elastically, maintaining their original energy (Rayleigh scattering). However, a tiny fraction of those photons interact with the vibrational modes of the sample’s molecules. These photons lose energy, shifting to a longer wavelength. Because these energy shifts are unique to the chemical bonds present, they serve as a definitive identifier for the substance.

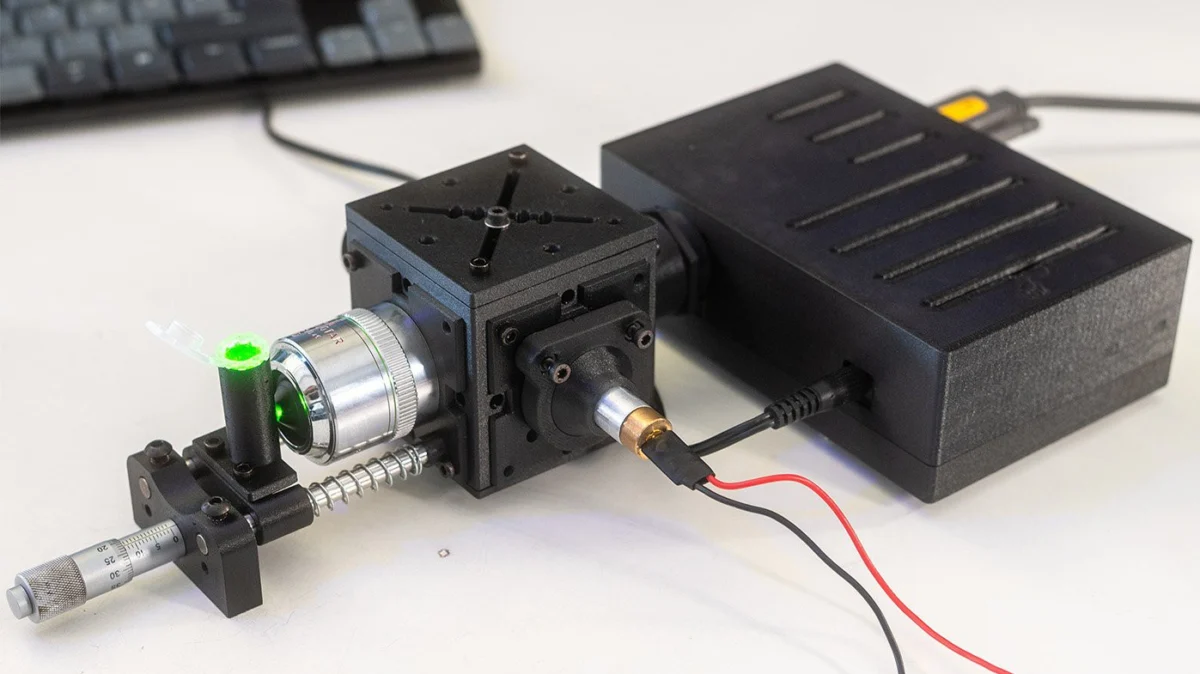

The CubeRaman system facilitates this process through a thoughtfully designed optical path contained within a 3D-printed housing. The architecture includes:

• Excitation Source: A low-cost 532-nm laser module paired with a bandpass filter to ensure the light is strictly monochromatic, stripping away extraneous infrared noise.
• Beam Management: A 45-degree dichroic mirror reflects the laser light toward the sample while allowing the shifted Raman signals to pass through to the detector.
• Collection Optics: A microscope objective serves a dual purpose, focusing the laser to a fine point on the sample and gathering the diffuse, weak Raman signal scattered back.
• Signal Refinement: A long-pass filter eliminates residual laser light, ensuring the spectrometer only processes the frequency-shifted signal, which is then focused via an achromatic lens onto the spectrometer’s input slit.

The build relies heavily on 3D-printed kinematic mounts. These mounts utilize adjustment screws seated in threaded inserts, with the tips held against the mounting surface by magnets. This design choice highlights a shift toward "desktop manufacturing," where precision alignment—previously the domain of expensive, machined metal components—is now achievable via additive manufacturing.

Chronology: From Concept to Characterization

The development of the CubeRaman was not a linear process, but rather a series of iterative refinements focused on signal-to-noise ratio optimization.

Early Development (Concept Phase): [Allegedly Science] began by mapping out the optical geometry required for a confocal-style setup. The primary challenge was ensuring the stability of the beam path, which necessitated the development of the custom kinematic mounts.

Prototyping (Hardware Integration): The team transitioned to 3D-printing the housing, aiming for a "cube-like" form factor to minimize light leakage and maximize structural rigidity. The integration of the optical filters was the next critical step; without high-quality bandpass and long-pass filters, the raw laser noise would overwhelm the weak Raman signals.

Initial Validation (The Diamond Test): To confirm the system was operating correctly, the team utilized a raw diamond. Diamond has an exceptionally strong, well-documented Raman shift (the characteristic peak at roughly 1332 cm⁻¹). The CubeRaman successfully captured this signature, marking the project’s transition from a theoretical build to a functional scientific instrument.

Operational Testing: Subsequent tests revealed the nuances of environmental interference. When testing substances inside standard glass vials, the system detected the silica signature of the container rather than the sample. This underscored the importance of sample preparation, specifically the need for thin-walled, quartz, or high-purity glass cuvettes to prevent "background contamination" of the data.

Supporting Data and Technical Observations

The performance of the CubeRaman is measured by its ability to distinguish target signals from background noise. During trials with ethanol, the team observed that the system was sensitive enough to detect the characteristic shifts of the solvent, provided the focus was dialed in precisely.

One of the most revealing aspects of the study involved testing liquids inside plastic containers. The system was able to distinguish between the ethanol and the polypropylene of the bottle, but only through careful focal adjustment. This highlights the "confocal" nature of the build—the ability to target specific depths within a sample.

Comparative Analysis of Components

The data collected suggests that while the system is highly capable, it remains sensitive to environmental stray light. Future iterations are expected to focus on light-tight enclosure improvements and the implementation of narrower spectrometer slits, which will theoretically improve spectral resolution, allowing for the distinction of more complex molecular mixtures.

Official Responses and Peer Perspectives

The open-source hardware community has reacted with significant interest to the CubeRaman. While the design is impressive, experts note that "sensitivity" is relative. Professional laboratory spectrometers utilize cooled Charge-Coupled Device (CCD) detectors to reduce thermal noise, a feature currently absent in the CubeRaman’s consumer-grade detection setup.

"The CubeRaman is a breakthrough in accessibility, not necessarily a replacement for a $50,000 Raman probe," notes one independent optical engineer. "However, for educational institutions and field researchers who need to identify common plastics or chemical solvents, this is a transformative step."

[Allegedly Science] has been transparent about the limitations of their build, emphasizing that it is a work in progress. By releasing their design files and documentation, they have invited the community to refine the kinematic mounts and propose software-based noise-reduction algorithms. This collaborative spirit mirrors the broader "Open Science" movement, which aims to remove the financial barriers that keep research tools locked within private or institutional silos.

Implications: The Democratization of Molecular Analysis

The implications of an affordable, 3D-printed Raman spectrometer are vast. In the realm of public health, such devices could eventually be used to verify the purity of pharmaceutical compounds in developing regions where professional lab testing is inaccessible. In environmental science, they could provide a rapid way to identify microplastics in water samples or monitor chemical runoff in real-time.

Barriers to Adoption

Despite the success of the CubeRaman, two main challenges remain:

1. Software Sophistication: While the hardware is now accessible, the software required to interpret the raw spectral data—specifically the deconvolution of peaks—remains complex for non-chemists.
2. Calibration Standards: Professional instruments are regularly calibrated against NIST-traceable standards. The hobbyist community lacks a standardized method for verifying the accuracy of these home-built units, which could lead to reproducibility issues.

The Future of Desktop Spectroscopy

The CubeRaman project proves that we are entering an era where the "black box" of analytical chemistry is being pried open. As 3D printing continues to improve in resolution and material science, and as optical components continue to drop in price, the distinction between a "home lab" and a "professional lab" will continue to blur.

Whether this leads to a new generation of citizen scientists or simply provides a more cost-effective entry point for university laboratories, the CubeRaman represents a vital pivot point. It challenges the industry to justify the astronomical costs of traditional equipment and empowers the individual to take ownership of the analytical process.

As [Allegedly Science] continues to iterate on their design, the focus will likely turn toward integration with single-board computers like the Raspberry Pi. By offloading the spectral analysis to local compute resources and streamlining the interface, the team hopes to turn the CubeRaman into a "plug-and-play" diagnostic tool. If successful, the next great scientific discovery may not come from a multi-million dollar facility, but from a garage-based setup built for the price of a mid-range consumer smartphone.
