Shadows Over Sunshine: Understanding and Mitigating Partial Shading in Solar Energy Systems

By Editorial Staff | May 14, 2026

As the global energy transition accelerates, millions of households are turning to balcony power plants and residential photovoltaic (PV) systems to offset rising electricity costs. However, a common technical obstacle often stands between a homeowner and their goal of energy independence: partial shading. While the concept of a shadow falling across a solar panel seems straightforward, the physical and electrical consequences are complex, often leading to performance bottlenecks that go beyond simple light obstruction.

Main Facts: The Physics of the "Bottle-Neck" Effect

The primary challenge with traditional solar modules is how they manage electrical current. Most solar panels consist of multiple individual solar cells wired in series. In a standard circuit, the current flowing through the entire string is limited by the "weakest link"—the cell producing the least amount of electricity.

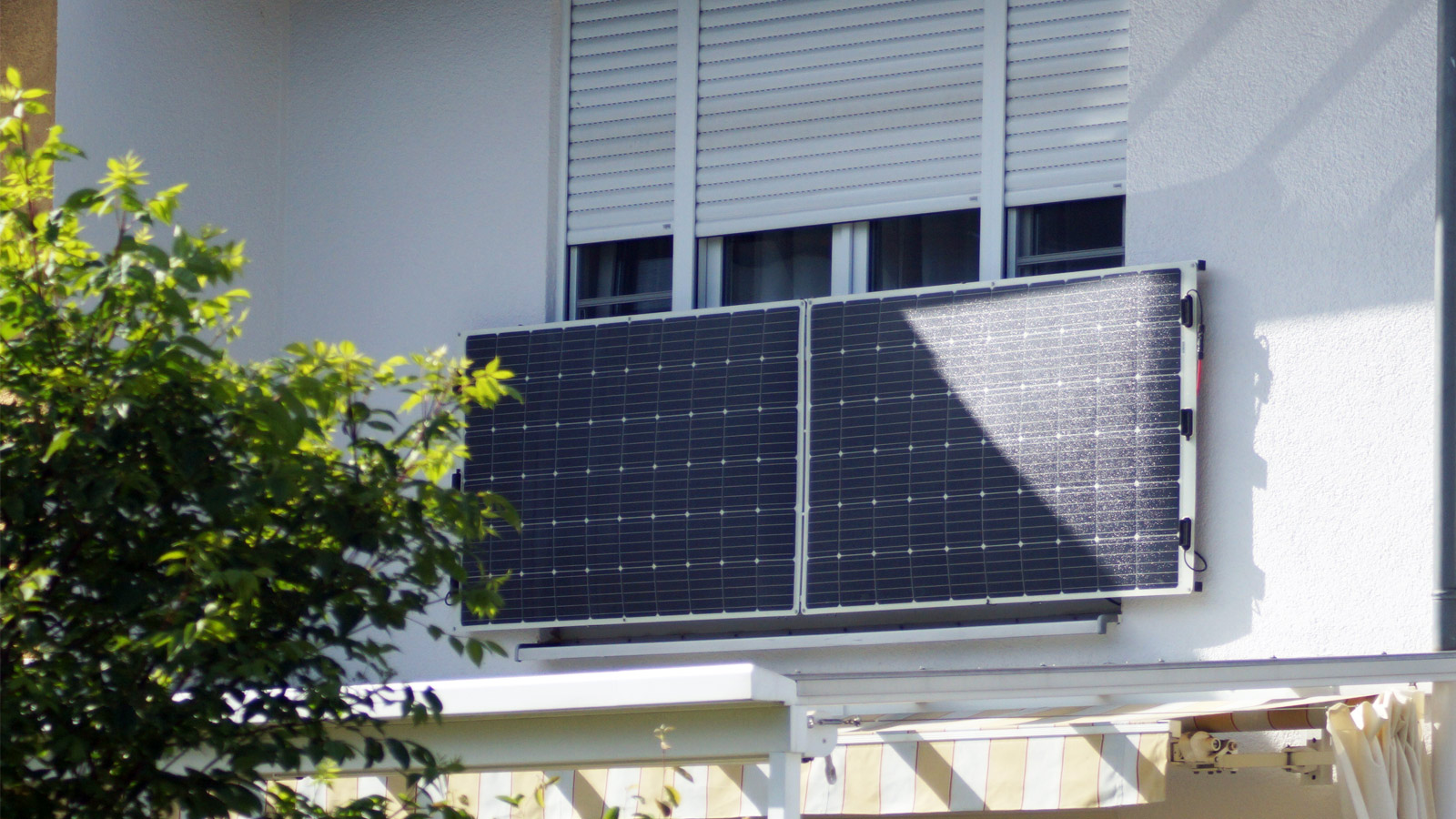

When a portion of a solar module is covered by a shadow—whether from a nearby building, a chimney, a tree, or even a build-up of dirt—the cells in that shaded area produce significantly less current. Because they are connected in series, this shaded area acts as a bottleneck, forcing the entire module to operate at the lower output level of the shaded cells.

Furthermore, this creates a secondary risk: the shaded cells can become "hot spots." Instead of producing power, they may begin to consume it as resistance, converting that energy into heat. Over time, this thermal stress can lead to accelerated degradation, potentially shortening the lifespan of the hardware.

Chronology of Technological Evolution

For decades, the solar industry has sought ways to mitigate the impact of environmental factors. The evolution of shading resistance can be categorized into three major phases:

1. The Era of Conventional Cells (Pre-2015): Early residential panels were highly sensitive to shading. A single leaf falling on a module could drop power production by over 50%. Bypass diodes were primitive and often failed to prevent significant yield losses.
2. The Bypass Diode Revolution: Engineers introduced bypass diodes as a standard safety feature. These diodes provide an alternative path for the current, effectively "bypassing" a section of the module if it becomes shaded. This prevented hot spots and kept the rest of the string functioning, though it still resulted in a measurable drop in voltage.
3. The Half-Cut and Multi-Busbar Era (2020–Present): Modern panels utilize "Half-Cut" technology, where cells are laser-cut in half. This reduces internal resistance and creates more independent sub-strings within a single module. Coupled with advanced micro-inverters that optimize performance at the panel level rather than the string level, the industry has successfully reduced the impact of partial shading from catastrophic levels to manageable inconveniences.

Supporting Data: Quantifying the Impact

Recent field studies and technical audits provide a clear picture of how much energy is lost to shading.

• Yield Reduction: A minor, persistent shadow covering just 10% of a module’s surface area can result in a 10% to 30% reduction in total output. In some cases, if the shadow hits specific critical wiring paths, the loss can exceed 50%.
• The Mitigation Threshold: With the implementation of Half-Cut cells and modern micro-inverters, these losses can be capped at 5% to 15%. This technology allows systems to harvest energy even under "diffuse light" conditions—when the sky is overcast or when the panel is in the soft shadow of a tree branch.
• The Cost-Benefit Threshold: For a typical 800-watt balcony power plant, the target yield is between 600 and 800 kWh per year. If shading is so severe that the system fails to reach 50% of this capacity during peak sunlight hours (late morning to mid-afternoon), the financial amortization period extends significantly, potentially making the investment less attractive compared to alternative energy-saving measures.

Official Industry Perspectives and Expert Recommendations

Leading experts in renewable energy engineering emphasize that "shadows are not a death sentence for a project." Instead, they advocate for a strategic approach to site assessment.

The Role of Digital Tools

Before installing any hardware, professionals recommend using digital simulation tools. Apps like ShadeMap allow homeowners to visualize the sun’s path throughout the year, identifying exactly when and where shadows will fall. By mapping the "sun-hours," users can adjust the positioning of their balcony power plant to avoid the most critical shading periods.

Maintenance as Mitigation

While shade from buildings is immutable, "artificial" shading—caused by dust, pollen, bird droppings, or snow—is entirely manageable. In agricultural regions or areas with high dust pollution, the industry suggests a bi-annual cleaning schedule. A simple wash with distilled water and a soft brush can often recover 5–10% of lost efficiency.

Implications: When to Proceed and When to Pivot

A common question for potential buyers is: At what point does a shaded location make a solar investment irrational?

The "Morning/Evening" Exception

If your balcony is shaded only during the early morning or late evening, the impact is minimal. The most critical period for solar energy production is the window between 11:00 AM and 3:00 PM. If your modules are unobstructed during these peak hours, a balcony power plant remains a highly lucrative investment, even with some shading at the start and end of the day.

When to Reconsider

The investment becomes less viable if the modules are in the "deep shadow" of a structure during the core midday hours. However, even in these scenarios, the calculation isn’t purely mathematical. In regions with high electricity tariffs, a "less-than-optimal" system can still pay for itself within a few years.

Strategic Checklist for Buyers

For those moving forward with a balcony power plant in a potentially shaded area, ensure your hardware selection adheres to these "Shading-Resistant" standards:

1. Half-Cut Architecture: Always opt for modules that utilize Half-Cut cells, as they are physically and electrically more resilient to localized shading.
2. Bypass Diodes: Ensure the datasheet confirms the presence of at least three bypass diodes per module. This prevents "Hot-Spots" and keeps the system from failing entirely if one segment is covered.
3. Micro-Inverter Integration: If you are using multiple panels, prioritize systems that use individual micro-inverters. This ensures that a shadow on Panel A does not throttle the performance of Panel B.
4. Angle Optimization: Use adjustable mounting brackets. In winter, when the sun is lower, the angle of incidence changes. Adjusting your panel tilt can often "look over" a shadow that would otherwise cover the lower third of the module.

Conclusion

Partial shading is a technical challenge, but it is not an insurmountable barrier. By understanding the electrical dynamics of your modules and leveraging modern advancements like Half-Cut technology and digital site-mapping, homeowners can reclaim a significant portion of their energy production. While no system is perfect, a well-planned installation—even in a partially shaded environment—remains one of the most effective ways for individuals to contribute to the global energy transition while shielding themselves from the volatility of energy markets.
