Smart Sun Control: Mastering Home Assistant Automation Without Physical Sensors

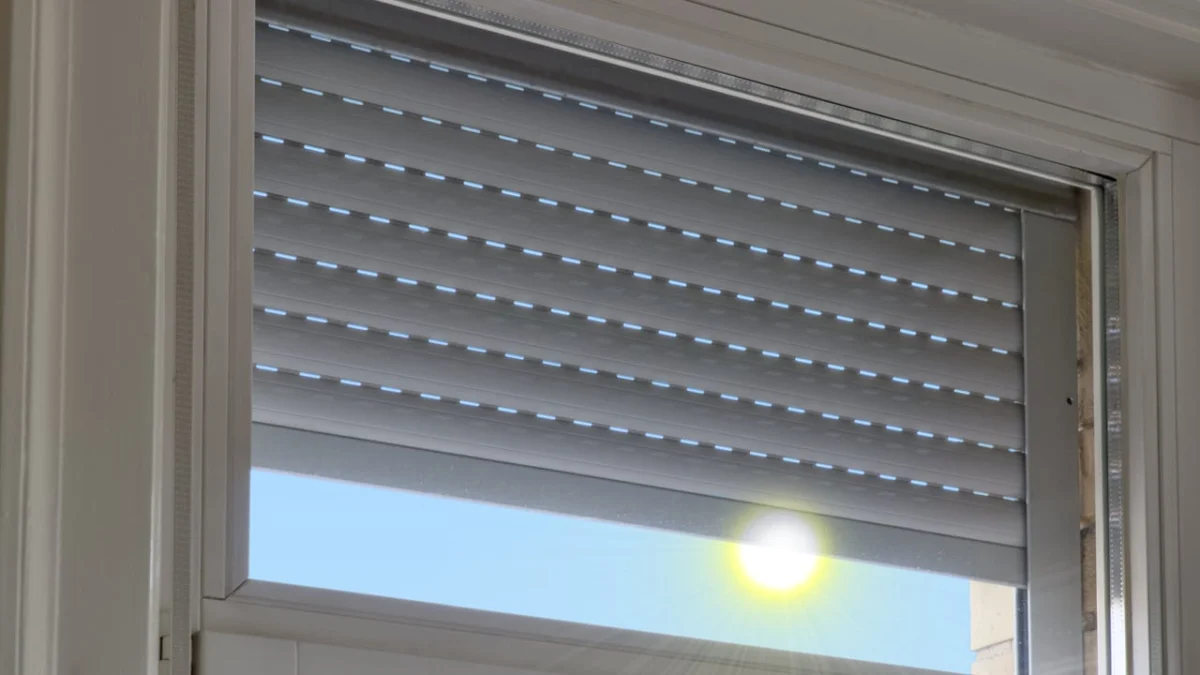

Automating window shutters to descend precisely when the sun begins to glare into a room is a hallmark of a sophisticated smart home. Traditionally, this functionality has been tied to physical hardware—specifically brightness or luminosity sensors installed on the exterior of a building. However, for users of Home Assistant, the premier open-source home automation platform, this capability can be achieved entirely through software. By leveraging the platform’s native "Sun" integration, users can calculate the exact position of the sun based on their geographical coordinates and time, eliminating the need for additional, often expensive, hardware.

Main Facts: The Power of Celestial Math

The core of this automation lies in the "Sun" integration, which is active by default in every Home Assistant installation. It requires no complex configuration or third-party add-ons. The integration provides ten distinct entities (data points), but for the purpose of solar tracking, two are paramount: Azimuth and Elevation.

• Azimuth: This value represents the sun’s position on the horizon in degrees (0° = North, 90° = East, 180° = South, 270° = West).
• Elevation: This measures how high the sun is above the horizon.

By monitoring these two variables, Home Assistant can determine whether the sun is currently shining directly into a specific window. If these entities are not visible in your dashboard, they are likely disabled. They can be quickly toggled on by navigating to Settings > Integrations > Sun and checking the "Disabled Entities" list.

Chronology: A Step-by-Step Implementation Guide

To move from manual control to a fully automated solar-response system, follow this systematic implementation plan.

Step 1: Determining Window Orientation

Precision starts with knowing exactly where your windows face. Using a smartphone’s compass app or a digital map tool like Google Maps, stand at your window and record the orientation in degrees.

A south-facing window will yield approximately 180°, while a southwest window sits near 220°. To ensure the automation captures the entire duration of the sunlight, add a buffer of ±30 to 40 degrees to your central value. For an East-facing window (90°), an effective range would be 60° to 120°. This defines the "window of exposure" during which the sun’s direct rays will penetrate the room.

Step 2: The Logic Bridge – Implementing a "Helper"

Because the sun’s position is calculated in real-time, it is subject to constant, microscopic fluctuations. If your automation triggers based purely on these raw numbers, you risk "jitter"—where the shutter rapidly moves up and down as the sun moves across the threshold.

To prevent this, create a "Helper" (a virtual switch). Under Settings > Devices & Services > Helpers, create a new "Toggle" helper named "Sun in Window." This entity (input_boolean.sonne_im_fenster) acts as a stable state machine. By having the automation trigger the switch rather than the motor directly, you decouple the calculation from the physical action, allowing for a much smoother, more reliable operation.

Step 3: Automating Detection

Create an automation that runs on a five-minute interval (a periodic time-based trigger). In this automation, we use "Templates" to compare the current solar position against your predefined window coordinates.

Azimuth Condition:
60 < state_attr('sun.sun', 'azimuth') < 120

Elevation Condition:
state_attr('sun.sun', 'elevation') > 15

If these conditions are met, the action is to turn the "Sun in Window" helper to the "ON" state. This provides a clean, logical signal that the sun is currently hitting the room.

Step 4: The Logic of Departure

A secondary automation is required to turn the helper "OFF." This logic is the inverse of the previous step. If the sun moves outside the defined azimuth range or drops below the 15° elevation threshold, the automation triggers, turning the helper off. This ensures that as soon as the room is no longer exposed to direct, harsh light, the system recognizes the state change.

Step 5: Executing the Shutter Movement

Now, create an automation that monitors the state of your "Sun in Window" helper.

• Trigger: When the helper changes from "OFF" to "ON."
• Condition: Use the "For" field to set a 5-minute stability duration. This ensures the sun is actually there and not just a passing reflection or temporary break in the clouds.
• Action: Command the shutter motor to your desired percentage (e.g., 30% closed).

Step 6: Restoration of Natural Light

Duplicate the previous automation but reverse the logic. When the helper changes from "ON" to "OFF," trigger an action to set the shutter to 100% open. This ensures your home returns to its baseline state automatically as soon as the shading requirement expires.

Supporting Data: Enhancing Accuracy with Weather Services

While the geometric approach is mathematically sound, it lacks atmospheric awareness. On an overcast or rainy day, the sun may be in the correct position, but the intensity of the light is negligible. To avoid unnecessary shading, integrate a weather service such as OpenWeatherMap.

By registering for a free API key at OpenWeatherMap, you can feed data into Home Assistant. This provides an additional entity, such as sensor.openweathermap_condition. By adding this to your automation conditions, you can ensure that the shutter only descends if the status is "Sunny." This "intelligence layer" prevents the home from feeling like a dark cave during cloudy afternoons.

Official Responses and Best Practices

Industry experts and the Home Assistant community emphasize that while this software-based approach is highly effective, it is a "calculated" rather than "measured" solution.

• Calibration: Users are advised to spend the first week observing the system. If the shutters close too early or too late, adjust the elevation threshold (e.g., from 15° to 10° or 20°) to account for local obstructions like trees or neighboring buildings.
• Hardware Compatibility: Ensure that your shutter motors are integrated with Home Assistant via a reliable protocol like Zigbee, Z-Wave, or local Wi-Fi control. Relying on cloud-based proprietary apps may introduce latency that defeats the purpose of the 5-minute stability check.

Implications for Modern Living

The move toward sensorless automation represents a significant shift in the philosophy of smart home design. By utilizing existing data—the sun’s position—users can achieve high-level comfort without the clutter of additional hardware.

The implications are threefold:

1. Energy Efficiency: Proactive shading reduces the load on air conditioning systems during summer, leading to lower energy bills and a smaller carbon footprint.
2. Longevity: By minimizing "jittery" movements through the use of virtual helpers, you reduce the mechanical wear and tear on your shutter motors.
3. Aesthetic Cleanliness: Removing the need for exterior sensors creates a cleaner building facade and reduces the maintenance requirements associated with battery-powered outdoor hardware.

In conclusion, Home Assistant proves that the most powerful tools in home automation are often the ones already embedded in the system. With a bit of configuration and the careful application of logic, homeowners can create a living environment that responds to the natural rhythm of the sun with scientific precision.
